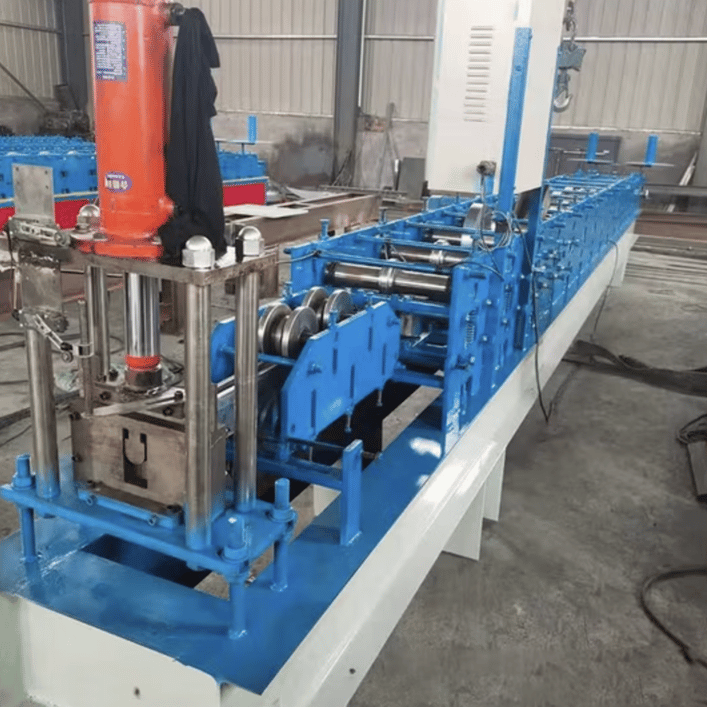

Guide Rail Roll Forming Machine UK
- Condition
- New
- Supplier
- Roll Forming Machines United Kingdom
- Country
- United Kingdom
- Category
- Listing ID
- 8120
Request a Quote
To express an interest in this machine please submit the form below.

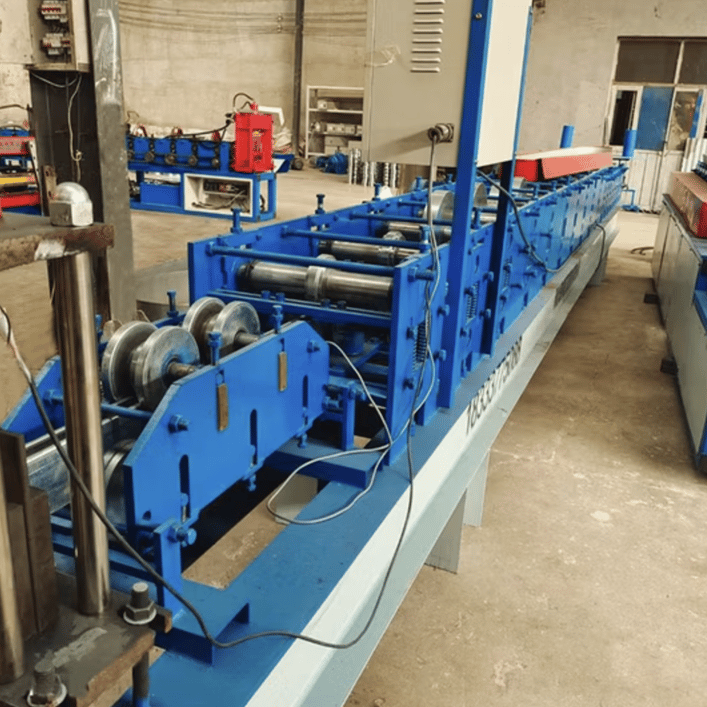

The Guide Rail Roll Forming Machine is a precision-engineered equipment designed to manufacture guide rails used in various applications, including elevators, conveyor systems, and industrial frameworks. This machine is tailored for producing high-strength, uniform guide rails with minimal material waste, meeting the stringent quality and safety standards expected in the UK.
Key Features:
- High Precision: Ensures dimensional accuracy, critical for guide rails used in safety-sensitive environments like elevators.
- Durability: Built with high-quality components, including hardened rollers and a robust frame.
- Automation: Equipped with advanced PLC systems for seamless operation and reduced manual intervention.
- Versatility: Capable of handling various profile sizes and materials, including galvanized steel, stainless steel, and aluminum.
- Energy Efficiency: Designed for optimal power consumption, adhering to UK energy efficiency regulations.
2. Machine Specifications
| Component | Specification |
|---|---|
| Material Thickness | 1.0 mm – 5.0 mm |
| Material Width | Up to 600 mm |
| Roller Material | High-grade GCr15 steel with hard chrome plating |
| Number of Rollers | 18–24 stages (depending on profile complexity) |
| Main Motor Power | 15 kW – 30 kW |
| Hydraulic Cutting System | 7.5 kW with high-precision steel blades |
| Machine Speed | 10–25 meters per minute |
| Control System | PLC with HMI touch screen (brands like Siemens or Mitsubishi) |
| Frame Construction | Welded steel structure |

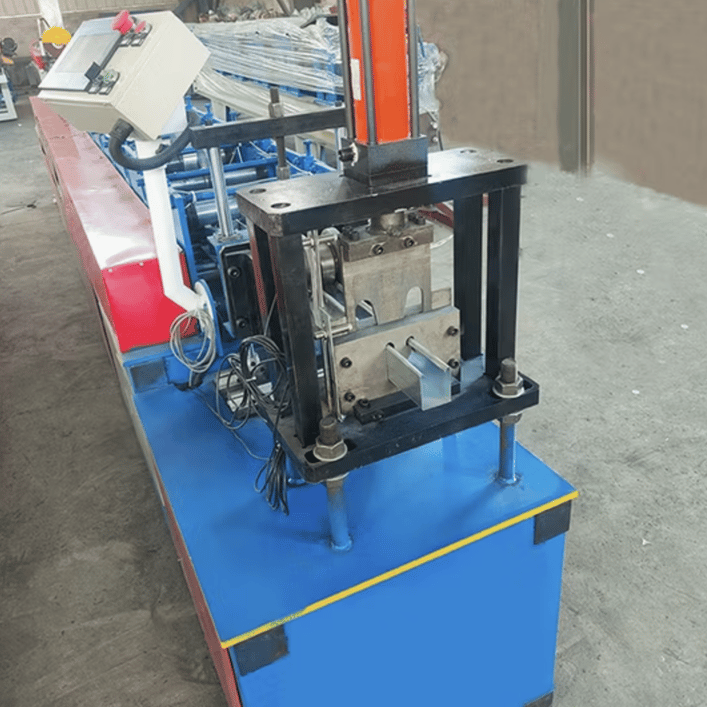

| Punching System | Hydraulic or servo-driven, adjustable for specific hole patterns |
| Power Supply | 415V, 50 Hz (UK standard) |
| Safety Features | Emergency stop, safety guards, and protective enclosures |
| Dimension (L×W×H) | Approximately 8m × 1.5m × 1.5m |
| Weight | 8–12 tons (depending on configuration) |
3. Applications of Guide Rail Roll Forming Machines
- Elevator Systems: Producing durable rails for elevator cabins and counterweights.
- Conveyor Systems: Manufacturing guide rails for industrial material handling systems.
- Storage Solutions: Fabricating rails for automated storage and retrieval systems.
- Construction: Creating components for safety barriers and framework in buildings.
4. Benefits for UK Industries
- Custom Profiles: Ability to tailor profiles to specific project needs.
- Cost-Effectiveness: Reduced material waste and labor costs due to automation.
- Compliance: Meets UK and EU standards for safety and manufacturing.
- Quick Turnaround: High production speeds ensure timely delivery of large-scale projects.
5. Question and Answer Section
Q1: What materials can the machine process? A: The machine is compatible with galvanized steel, stainless steel, aluminum, and other metal alloys commonly used in the UK.
Q2: Is the machine energy efficient? A: Yes, it is designed to comply with UK energy efficiency standards, ensuring lower operational costs.
Q3: Can it handle multiple profile sizes? A: Yes, the machine is adjustable to produce various guide rail sizes and shapes.
Q4: What is the expected delivery time for the machine in the UK? A: Delivery times vary but typically range between 8 to 12 weeks, depending on customization requirements.
Q5: Are spare parts and maintenance support available in the UK? A: Yes, spare parts and maintenance services are readily available through local distributors or service centers.
Q6: Does it require skilled labor to operate? A: Basic training is sufficient to operate the machine, thanks to its user-friendly PLC control system.
Q7: How does the machine ensure safety during operation? A: The machine includes emergency stops, safety guards, and protective enclosures to prevent accidents.
