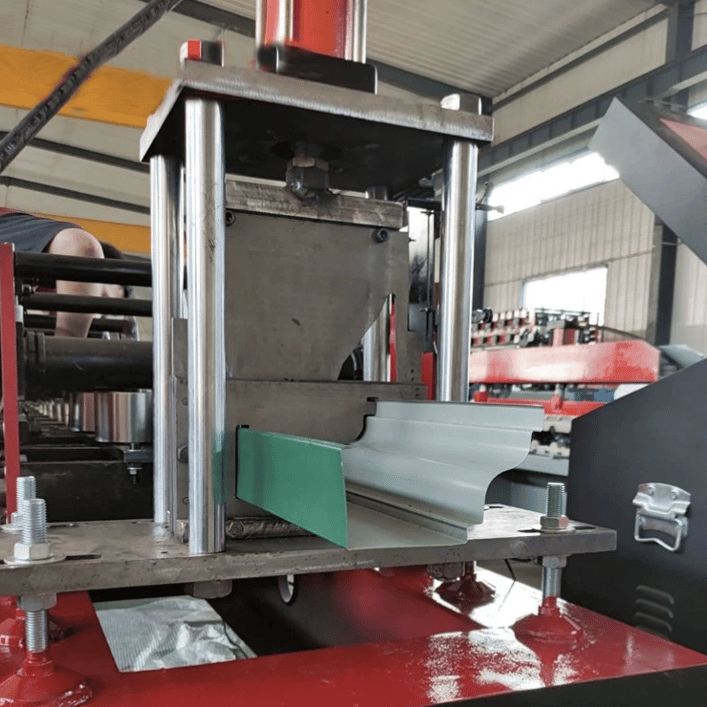

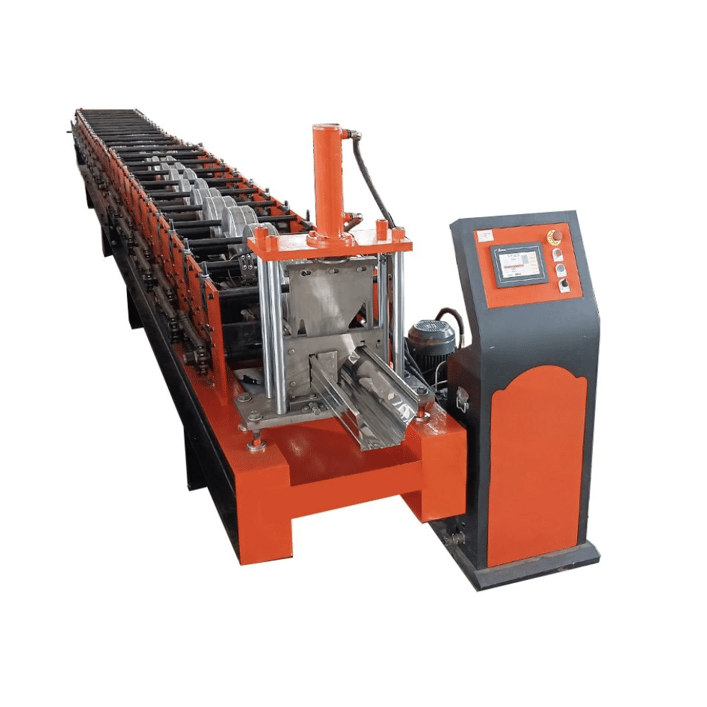

Gutter Roll Forming Machine in El Salvador
- Condition
- New
- Supplier
- Roll Forming Machines El salvador
- Country
- El Salvador
- Listing ID
- 9487
Request a Quote
To express an interest in this machine please submit the form below.
| Configurations | Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Machine Of Roll Forming ,Electric-Motor, Glazed Tile Pressing Device ,Cutting Device ,Hydraulic Station ,PLC Control, Supporter Table. |
| Control System | PLC Delta Inverter |
| Main Frame | 400mm H-Beam |
| Main Power | 4 kw |
| Pump Power | 3 kw |
| Power Supply | 380V, 3-Phase,50Hz |
| Forming Speed | 4-8m/min |
| Roll Station | 16 stands |
| Roller Diameter | 65mm |
| Hydraulic Pressure | 10-12MPa |
| Forming Size | 260mm |
| Feeding Thickness | 0.27-0.8mm |
| Feeding Width | 600mm |
| Backboard Thickness | 18mm |
| Chain Size | 33mm |
| Cutter Standard | Cr12 |
| Roller Standard | Cr12 |
| Cr-Plating Size | 0.05mm |
| Overall Size | 6000 × 1000 × 1200mm |
| Total Weight | 3T |
