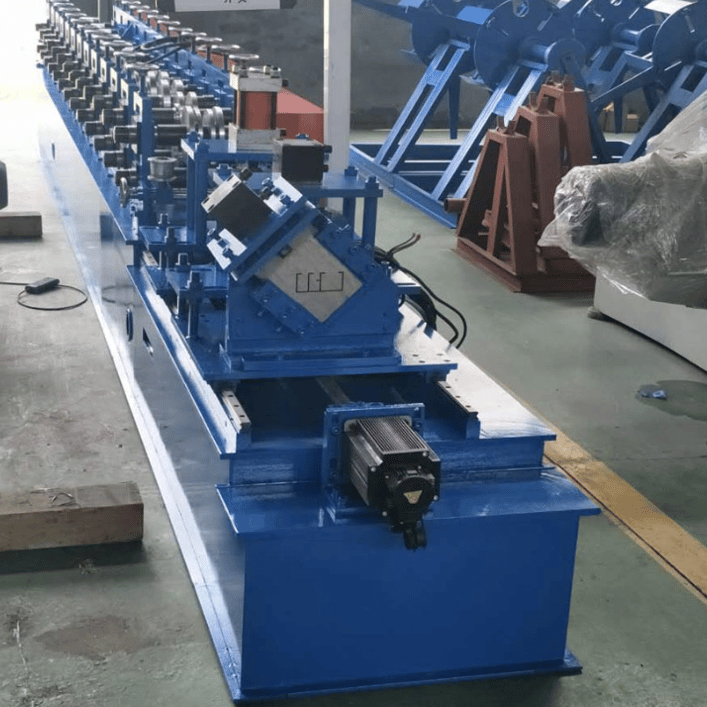

Gypsum Channel Roll Forming Machine in South Sudan
| Feeding material | PPGI / GI plate |
| Frame type | steel board welded |
| Width of the plate | 94mm |
| Thickness of the plate | 0.3 - 0.75mm |
| Dimensions | 3500mm*1200mm*1400mm |
| Diameter of the shaft | Φ45mm |
| Roller station | 12rows |
| Productivity | 15-20m/min |
| Motor power to drive the machine | 5.5 + 4 kw |
| Voltage | 380V 50Hz 3phase or as per requirement |
| Weight | 2900kgs |
| Material of the cutting head | Gr12 , heat treatment HRC58-60 |
| Machine frame | steel board welding frame |
| Side board thickness | 25mm |
