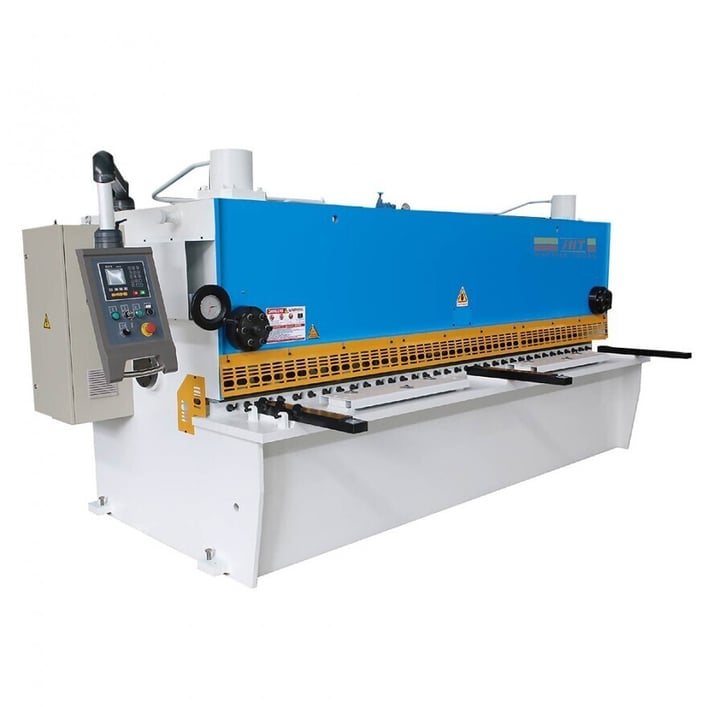

HGS Series Hydraulic Guillotine Shearing Machine With NC System

View more details here HGS Series Hydraulic Guillotine type Shearing Machine With NC System 6X3200

New £13,000.00

Standard Configuration

· ESTUN E21S CNC controller

· Backgauge X-axis electric control

· DELTA frequency converter

· Controller suspension arm and front material supporter

· HIWIN ball screw and polished bar, control accuracy 0.05mm

· Germany EMB tube connector

· Germany Bosch Rexroth integrated hydraulic valve

· Germany Siemens main motor

· France Schneider electrics

· Hydraulic and electrical overload protection

· Light align

· Blade materials (6CrW2Si)

· South Korea KACON petal switch

III. Safety Identification.

· Safety standards ( 2006/42/EC )

· The electrical cabinet and the front safeguard door open to power off

· Domestic pedal switch (safety grade 4)

· Rear metal safeguard rail, CE standard

· Safety relay monitors pedal switch, safety protection

IV ESTUN E21S CNC system.

· High-definition LCD panel

· Control motors and frequency converters

· X-axis intelligent positioning

· Multi-step programming, 40 programs, each program 25 steps

· Built-in time relay

· One-button switching function

· Unilateral positioning function

· One-key backup and restore of parameters

· Both Chinese and English language

· Metric system

Main Features

11.Streamlined design originated from europe, the machine frame is a whole through overall welding and annealing treatment.

12.Reliable Germany Rexroth integrated hydraulic system and hydraulic transmission; the design can effectively reduce problems caused by leakage of hydraulic fluid.

13.Hydraulic swing beam shearing machine is one kind of equipment by swinging the upper blade to shear plate with smaller shearing angle and distortion, improving shearing quality.

14.Backgauge is adjusted by high-precision ball screw driven by E21S controller, during the process frequency convertor prevent positioning device horizontal swinging, significantly improving positioning accuracy.

15.Light aligning device, convenient for manual operation; pressure cylinder with built-in spring mechanism and bottom end furnished with special material gasket to prevent aluminum or other soft materials from being imprinted.

16.Made by high-quality alloy tool steel, the machine can meet the requirements of impacting load and high wear resistance when working.

17.Light and practical cantilever referring to man-machine engineering design, easy NC operation interface with features of high precision and more comfortable.

18.The worktable adopts the rolling steel ball to reduce the frictional resistance, protect the work piece surface; novel protective devices complying with safety specifications: protecting the operator’s personal safety; ingenious design: petty material can be cutter easily.

19.Front material supporter is equipped with Perpendicularity and positioning regulator to ensure the cutting accuracy, easy operation, practical and efficient.

20.Rapid adjustment mechanism for rearranging blade clearance, simple operation by hand and adjusting steplessly.
