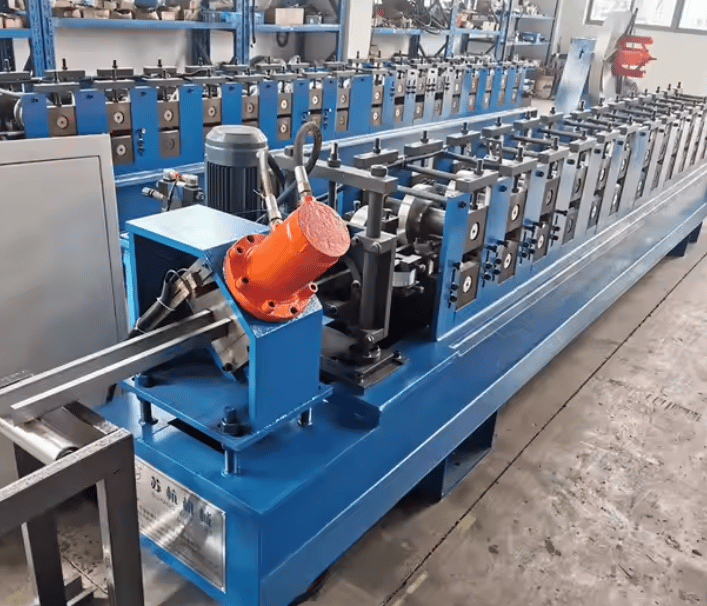

High-Speed Omega Profile Roll Forming Machine – UAE

High-Speed Omega Profile Roll Forming Machine – Available in the UAE from Machine Matcher

Machine Matcher proudly offers the High-Speed Omega Profile Roll Forming Machine, tailored for the United Arab Emirates market. This advanced machine is designed to deliver precision, efficiency, and versatility, catering to various industries including construction, automotive, and solar energy.

Industries Served

• Construction: Ideal for producing ceiling battens, furring channels, and structural framing components.
• Automotive: Used for manufacturing chassis reinforcements and safety components.
• Solar Energy: Perfect for creating reliable solar panel mounting and framing systems.
• Storage Solutions: Essential for producing racking and shelving systems in warehouses and logistics centers.

Machine Type & Capabilities

• Machine Type: High-Speed Omega Profile Roll Forming Machine
• Production Speed: Up to 120 meters per minute
• Material Thickness Range: 0.3mm to 1.0mm
• Material Width Range: Up to 500mm
• Material Types: Galvanized Steel (GI), Pre-painted GI, Cold Rolled Steel
• Material Yield Strength: Up to 550 MPa
• Roller Material: 45# Steel with Chrome Platingc
• Roller Surface Treatment: Chromed to HRC58-62
• Number of Forming Stations: 12 to 20 (customizable)
• Roller Shaft Diameter: 40mm to 70mm
• Shaft Material: 40Cr Steel
• Main Drive Type: Gearbox Drive
• Power Requirement: 380V, 50Hz, 3 Phase (customizable)
• Motor Power: 5.5kW to 30kW
• Cutting Method: Servo Tracking Cutting
• Blade Material: Cr12 Mould Steel
• Control Type: PLC Control (Delta/Siemens)
• Operating Mode: Automatic
• De-coiling System: Manual or Hydraulic Decoiler (optional)
• Punching/Notching System: Available upon request
• Machine Frame: Steel Welded Structure
• Thickness of Frame Steel: 25mm to 30mm
• Profile Shape: Omega (customizable)
• Profile Width and Depth: Width: 30mm to 90mm; Depth: 40mm to 150mm
• Length Tolerance: ±1.0mm
• Safety Features:
  • Protective Covers/Guards
  • Emergency Stop Button
  • Overload Protection System

Unique Selling Propositions (USPs)

• High-Speed Production: Achieve up to 120m/min, significantly enhancing productivity.
• Precision Engineering: Ensures consistent quality and reduces material wastage.
• Customization: Tailored to meet specific profile requirements.
• Robust Construction: Built with high-quality materials for durability and longevity.
• Advanced Control Systems: Equipped with PLC systems for seamless operation.

Customization Options

Machine Matcher offers extensive customization to meet your specific needs:Machine Matcher

• Profile Design: Provide your profile drawings for tailored solutions.
• Material Specifications: Adaptable to various materials and thicknesses.
• Additional Features: Optional punching/notching systems, decoilers, and more.

Delivery & Support in the UAE

Machine Matcher ensures prompt delivery and support across the UAE, including Abu Dhabi, Dubai, and Sharjah.

• Lead Time: Production typically takes 30–60 days; shipping time depends on the destination port.
• Installation Support: Remote video guidance available; on-site installation upon request.
• Warranty: One-year warranty from dispatch date, with durable maintenance and repair support.

Pricing

• Starting Price: Approximately $50,000 (subject to customization and optional features).
• Factors Affecting Price:
  • Optional extras
  • Customization requirements
  • Shipping and installation services

For a tailored quote based on your specific needs, please contact us.

Frequently Asked Questions

Q: Can the machine be customized for our profile?

A: Yes, we offer full customization based on your profile drawings and specifications.

Q: What type of material is normally used with this machine?

A: Typically, galvanized steel (GI) with a thickness range of 0.3mm to 1.0mm and yield strength up to 550 MPa.

Q: Is remote installation support available?

A: Yes, we provide remote video guidance and on-site installation upon request.

Q: What is the lead time for manufacturing and shipping?

A: Production typically takes 30–60 days; shipping time depends on the destination port.

Contact Us

To receive the best quote for your Omega Profile Roll Forming Machine, please email your profile drawings and specifications to:

📧 [email protected]hxkeelmachine -

All machines are supplied exclusively by Machine Matcher, ensuring consistent quality and expert support.
