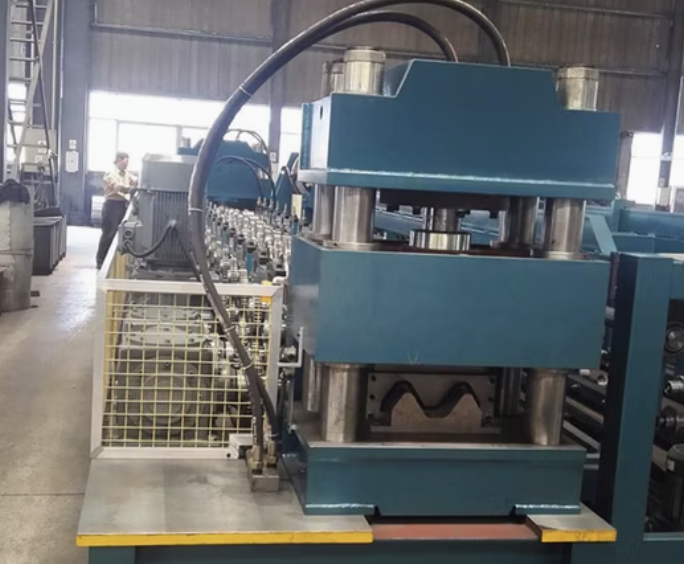

Highway Guardrail Roll Forming Machine USA

The highway guardrail roll forming machine is a specialized piece of equipment used to manufacture highway safety barriers, commonly known as guardrails. These barriers are essential for roadway safety, preventing vehicles from veering off the road or into oncoming traffic. This machine is designed to produce guardrails efficiently and with precise dimensions to meet regulatory and safety standards in the USA.

Full Machine Description

The highway guardrail roll forming machine is engineered to produce W-beam or thrie-beam guardrails, widely used across highways in the USA. With advanced automation and a robust structure, the machine ensures high-speed production, consistent quality, and reduced manual intervention. The machine is equipped with a pre-punching and cutting system, making it suitable for high-volume production while maintaining precision.

Features

• Durability: Constructed with high-grade steel for longevity and stability.
• Automation: Includes a PLC control system for seamless operation.
• Versatility: Capable of producing multiple profiles (e.g., W-beam, thrie-beam) with quick die changes.
• Efficiency: High-speed production with low material wastage.
• Safety: Equipped with safety enclosures and guards to ensure operator safety.

Specifications

Optional Add-Ons

• Automatic Stacking System: For easier handling and packaging of finished guardrails.
• Remote PLC System: Allows monitoring and control of the machine remotely.
• Leveling System: Ensures smooth feeding of material into the rollers.
• Coil Car Tippers: For easy loading and unloading of coils.

Setup and Installation Process

1. Site Preparation: Ensure adequate space for the machine and material handling.
2. Machine Installation: Place the machine on a leveled surface and secure it with anchor bolts.
3. Power and Hydraulic Connection: Connect the machine to the power supply and hydraulic system.
4. Test Run: Perform a dry run to check all components and calibrate the machine.
5. Training: Provide operator training for machine handling and maintenance.

Maintenance Requirements

• Daily: Check for loose bolts and clean the rollers.
• Weekly: Inspect the hydraulic system for leaks and lubricate moving parts.
• Monthly: Examine the electrical components and control systems.
• Yearly: Conduct a full inspection and replace worn-out parts.

Question and Answer Section

Q1: What profiles can the machine produce?

The machine can produce W-beam and thrie-beam guardrails, which are the standard profiles used for highways in the USA. Custom profiles can also be designed based on specific requirements.

Q2: What is the typical production speed?

The machine operates at a production speed of 15-25 meters per minute, depending on the material thickness and profile complexity.

Q3: Can the machine handle different material thicknesses?

Yes, it is designed to process materials ranging from 2.5 mm to 6 mm thick.

Q4: Is the machine compatible with USA power standards?

Absolutely, the machine can be customized to operate with 380V, 50/60Hz, 3-phase power supplies, or any other specifications required in the USA.

Q5: What are the safety features of the machine?

The machine includes emergency stop buttons, safety enclosures, alarms, and other features to ensure operator safety during operation.

Q6: How much space is required for installation?

The space required depends on the specific model, but typically, a minimum of 20m x 5m is recommended for smooth operation and material handling.

Q7: What is the typical price range for this machine?

The price varies based on features and customizations, typically ranging from $100,000 to $300,000 in the USA.

Conclusion

The highway guardrail roll forming machine is a vital investment for manufacturers involved in producing highway safety barriers in the USA. With its advanced features, high efficiency, and ability to meet stringent quality standards, this machine is indispensable for the road safety industry. For those interested in acquiring this equipment, it is essential to consider the specifications, optional add-ons, and installation requirements to ensure optimal performance.
