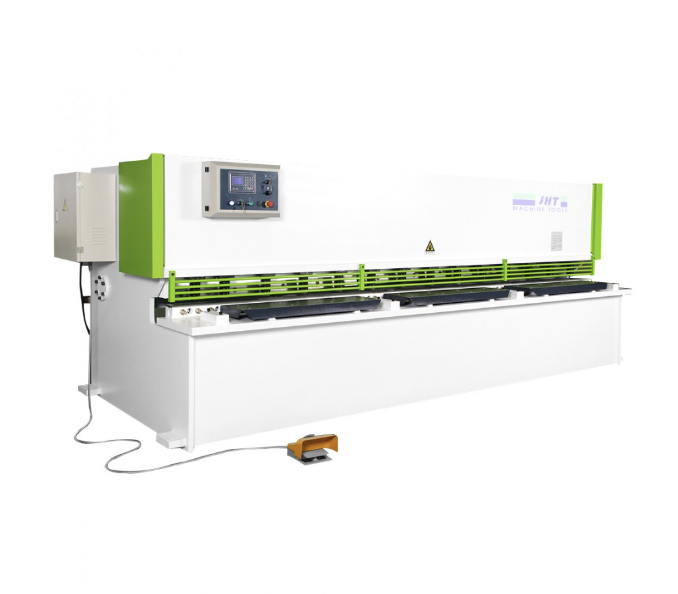

HSS Series Hydraulic Swing Beam CNC Shearing

View more details here HSS Series Hydraulic Swing Beam Type Shearing Machine With CNC system 8x3200

New £16,500.00

Standard Configuration

· Netherlands DELEM DA310S CNC controller

· Backgauge X-axis is driven by servo motor

· Servo motor drives controller

· HIWIN ball screw and linear guide rail, control precision 0.05mm

· Controller cantilever and front supporter

· Germany Bosch Rexroth integrated hydraulic valve

· Germany EMB oil tube connector

· Germany Siemens main motor

· Germany Schneider electrics

· Hydraulic and electrical overload protection

· Light aligning

· Blade materials ( Cr12MoV )

· South Korea KACON foot switch

· Blade clearance is adjusted automatically

III. Safety Standards

· Safety standards（2006／42／EC）

· Opening electric cabinet and front safeguard door will cut off power

· South Korea KACON foot switch (safety grade 4)

· Rear metal safeguard, CE standard

· Safety relay monitors foot switch, safety protection

IV. Netherlands DELEM DA310S NC Controller

· High-definition LCD display, 128X64 pi

· Backgauge control

· Cutter clearance control

· Cutting stroke control

· Synchronously display the actual position and programming

· Cutting count

· 100 programs

· Servo control

Main Features

1.Streamlined design originated from europe, main structure consists of rack, cutter holder, oil cylinder, hydraulic controller, backgauge etc. Finite-element analysis of main parts, Welding parts uses tempering, vibration and other processing methods to eliminate internal stress ensuring structural strength and rigidity;

2.Cutter holder use three-point support rolling guide rail, reducing the friction to the greatest extent, and realizing seamless rolling during cutter holder moving;

3.Left-most front holder configured with verticality regulator and front positioning device, easy operation and high efficiency;

4.Simple and effective blade adjusting mechanism rearranges blade clearance through CNC controller and improves the cutting quality.

5.Through fine ball screw and polished rod structure, good-performance servo motor control X-axis to ensure the accuracy, and unique designed timing transmission mechanism to ensure operation stable and reliable;

6.Light and shadow line is conductive to manual scribing for cutting; stable and reliable hydraulic transmission; integrated hydraulic system is able to significantly reduce problems caused by hydraulic fluid leakage;

7.High-quality alloy tool steel is capable enough to against impact load and high wear resistance when cutting;

8.Referring to ergonomic design, user-friendly operation interface, improving the operation precision and comfortability; rolling ball workbench to reduce friction and prevent work piece surface from scratching; unique and practical safety guard, line with safety specifications, protect the personal safety; exquisite design, petty work piece can be done easily by hand.
