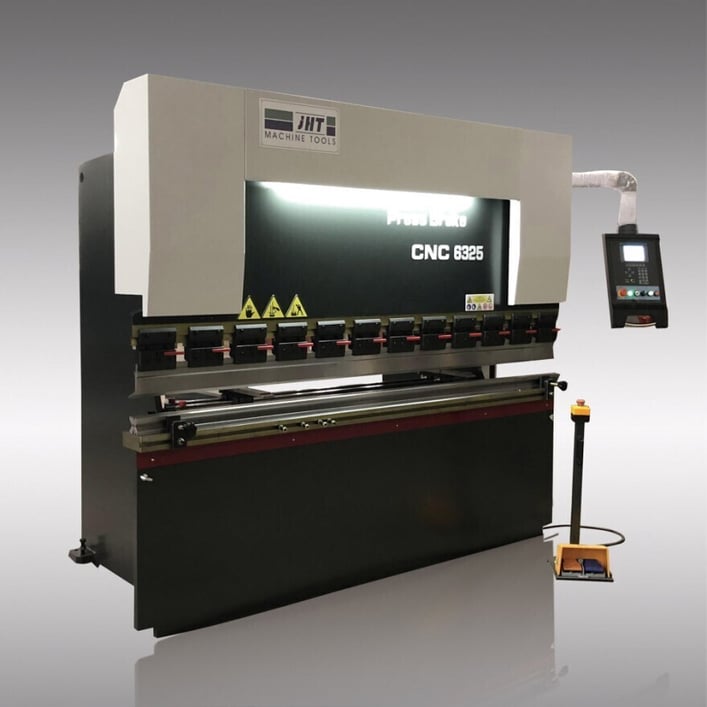

HYDRAULIC CNC PRESS BRAKE 63T3200 E300

View more here HYDRAULIC CNC PRESS BRAKE 63T3200 WITH E300 CNC CONTROLLER

New $16,500.00

Main Configuration

· Holland ESTUN E300 controller

· Controller controls and adjusts Y-axis and X-axis

· Servo drive and control positioning of X-axis and Y-axis

· Adopting HIWIN ball screw and linear guide rail, accuracy 0.05mm

· Front supporter bracket

· German quality hydraulic valve block

· German quality oil tube connector

· Germany Siemens main motor

· France Schneider electrics

· Hydraulic & electrical overload protection

· Top and bottom dies (86 °, R0.6mm, material: 42CrMo HRC ±47 °)

· Ajdust quality stop finger

III. Safety Standard

1.EN 12622:2009 + A1:2013 2.EN ISO 12100:2010 3.EN 60204-1:2006+A1:2009

· Front Finger protection ( safety light curtain )

· South Korea KACON pedal switch ( safety grade 4 )

· Back metal safeguard, CE standard

· Safety relay monitor pedal switch, safety protection

· Safety standard ( 2006／42／EC）

VI. ESTUN E300 CNC controller

· High-definition LCD display

· Control slider stop position

· Backgauge control

· Angle programming

· Setting die parameters

· Material-escaping control function

· 100 programs, 25 process steps per program

· Servo motor control, servo drive control

· Die library

· mm / inch

· Chinese / English

Main Features

· Streamlined design originated from europe, heat treatment of machine frame, high rigidity workbench, optional mechanical compensation device, to ensure the precision of bending

· Hydraulic synchronous control and E300 CNC programmable controller guarantee precise repeatability and easy use.

· Integrated hydraulic system ( (german quality ) can be automatically switched to slow bending status.

· X ,Y-axis realize accurate positioning function through CNC E300 controller programming and servo motor.

· Latest servo response hydraulic control technology, the machine tool is more stable and reliable.

· Optimal parameter ratio, best core configuration guarantee stable performance and more convenient for operation

· HTP series machine is equipped with single-axis backgauge system, single-axis bending angle system and V-axis compensation function combining with customized dies, any type irregular workpieces can be done
