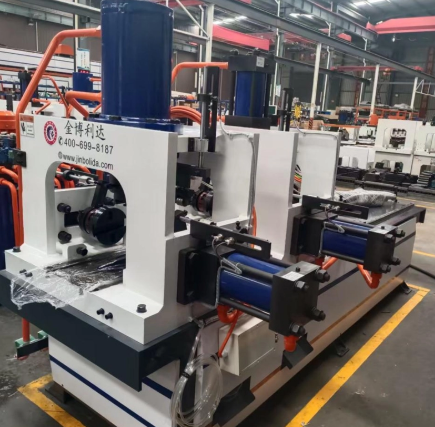

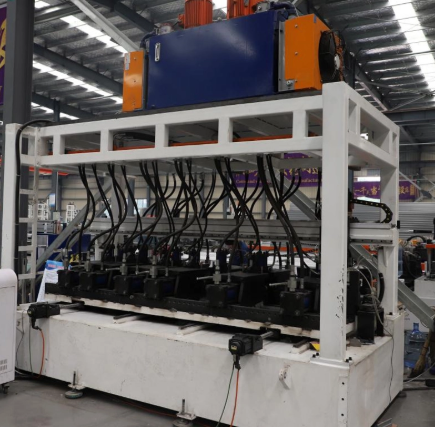

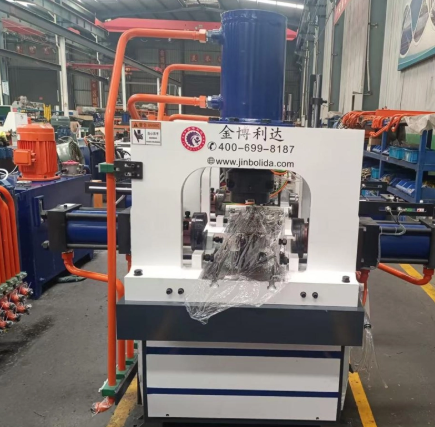

Jinbolida Hydraulic Punching Equipment – Automated Hydraulic Punching with Servo Feed and PLC Control

The Jinbolida Hydraulic Punching Equipment is a heavy-duty, automated punching unit for thin to thick material and high-strength profiles. A dual-pump combined hydraulic system delivers steady, adjustable punching force, while a servo motor drives the feed rollers to position each hole accurately and a PLC controls the punching cycle. Compared with mechanical punch presses, the hydraulic stroke is smoother and more controllable, which extends punch life and reduces noise and vibration. With DC53 tool steel punches, a stress-relieved welded frame, fault self-diagnosis and a compact footprint of around 3.0 × 2.5 m, it's a practical, low-maintenance choice for batch punching.

How It Works

• A servo motor drives the feed rollers to advance the material to each punch position
• The PLC signals the hydraulic cylinder to punch
• The punch descends smoothly with concentrated force, producing clean, burr-free holes
• Pressure and punching parameters are adjusted to suit each material and thickness

Key Features

• Dual-pump combined hydraulic system with stable, adjustable pressure
• Servo-driven roller feeding for accurate hole positioning
• PLC control of the punching cycle
• Smooth hydraulic stroke that extends tooling life and reduces noise and vibration
• DC53 tool steel punches for long tool life
• Main frame welded from steel plate and profiles, then stress-relieved to maintain long-term accuracy
• Automatic feeding and positioning reduce operator workload and safety risks
• Fault self-diagnosis and alarm functions for easy maintenance
• Compact footprint of approximately 3,000 × 2,500 mm

Technical Specifications

• Drive: Hydraulic, dual-pump combined system
• Feeding: Servo motor-driven rollers
• Control: PLC
• Punch tooling: DC53 tool steel
• Frame: Welded steel plate and profiles, stress-relieved
• Example materials: Q345 steel, 40Cr
• Footprint: Approx. 3,000 × 2,500 mm
• Diagnostics: Fault self-diagnosis and alarm

Applications

• Scaffolding tubes and steel supports for construction
• Openings in chassis, cabinets and ventilation ducts
• Busbar and cable tray production for electrical equipment
• Hardware and metal furniture
• Agricultural machinery and vehicle modification parts
• Any batch punching needing high force and reliability

Commercial Details

• Brand: Jinbolida
• Manufacturer: Shandong Jinbolida Precision Machinery Co., Ltd.
• Place of origin: Heze, Shandong, China

Frequently Asked Questions

• Why choose hydraulic over mechanical punching? Hydraulic punching gives steadier, more controllable force, gentler impact on the tooling, and lower noise and vibration.
• How are holes positioned? A servo motor drives the feed rollers, and the PLC controls the punch cycle.
• What tooling is used? DC53 tool steel punches, chosen for durability.
• How much space does it need? About 3,000 × 2,500 mm.
• What should I send for a quotation? Material type and thickness, part or profile dimensions, hole sizes and patterns, required output, and your local voltage and frequency.
