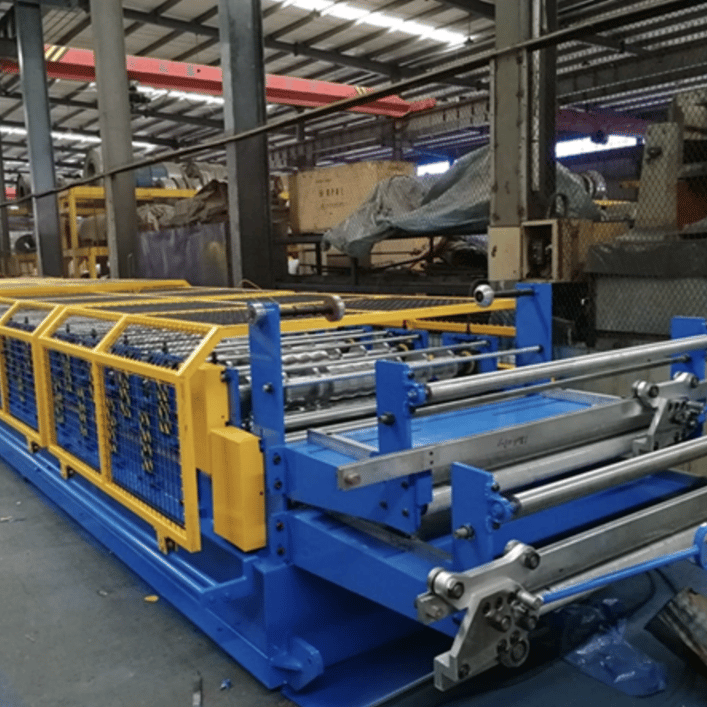

IBR Roll Forming Machine in Brazil

Sheet Tile Roll Forming Machine is one of most popular metal building material making machines,it can produce many kinds of trapezoidal tile/panels,like Ag panel or PBR/R panel,which can be widely used in many scenes,like school,gym, warehouse,etc.

5 Ton X 1250 Hydraulic Un-coiler-provided by the buyer themselves

Entry roller & Manual Pre-shearing device Dual Leveling Un-powered

Smart cut control, to cut off the end of the final piece of sheet only

Working thickness up to 0.8mm

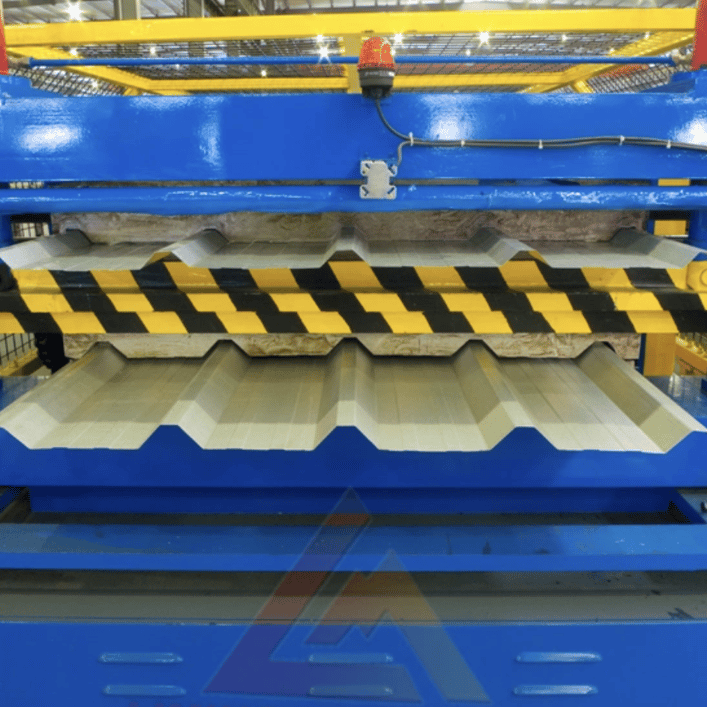

Dual Cold Rolling Mills

Gear/Sprocket driving; Dual Levelling,18-step to form

Rollers manufactured from 45# steel, CNC lathes, hard Chrome Coated

Shafts Diameter=ф95mm, Precision Machined, fine Polished

Main motor =5.5W, Frequency speed control

Manual Clutch to switch the driven system

Hydraulic Cutting Device

Stop to cut, Post cut, No blanking cut

Cutting tool material: Cr12, Heat treatment

Hydraulic group, Pump motor =5.5KW

PLC Control System

Control the quantity & cutting length automatically.

Control the switch action to run the different two profiles
