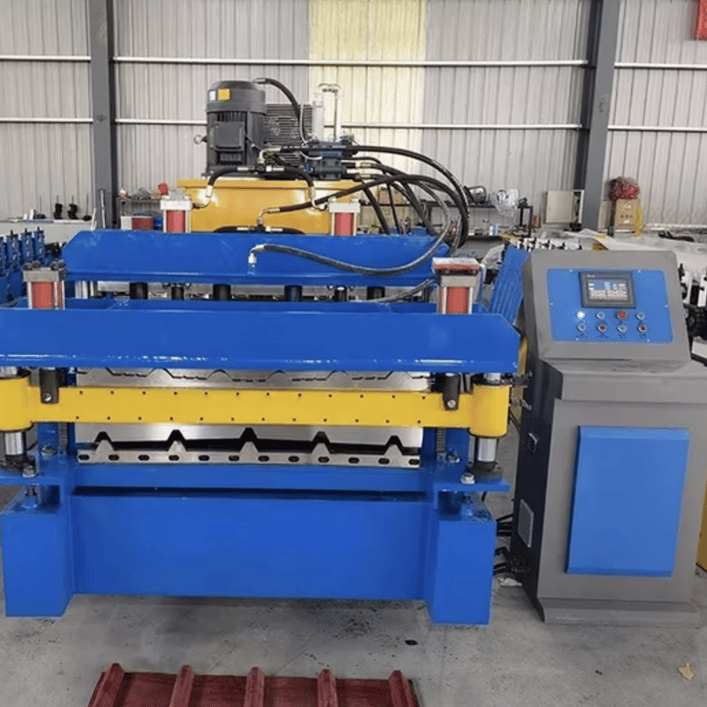

IBR Roll Forming Machine South Africa

IBR (Inverted Box Rib) roll forming machines are specialized equipment designed to manufacture IBR roofing sheets, widely used in the South African construction industry. These roofing profiles are favored for their durability, water-resistance, and aesthetic appeal, making them a top choice for residential, commercial, and industrial buildings.

Description of IBR Roll Forming Machines

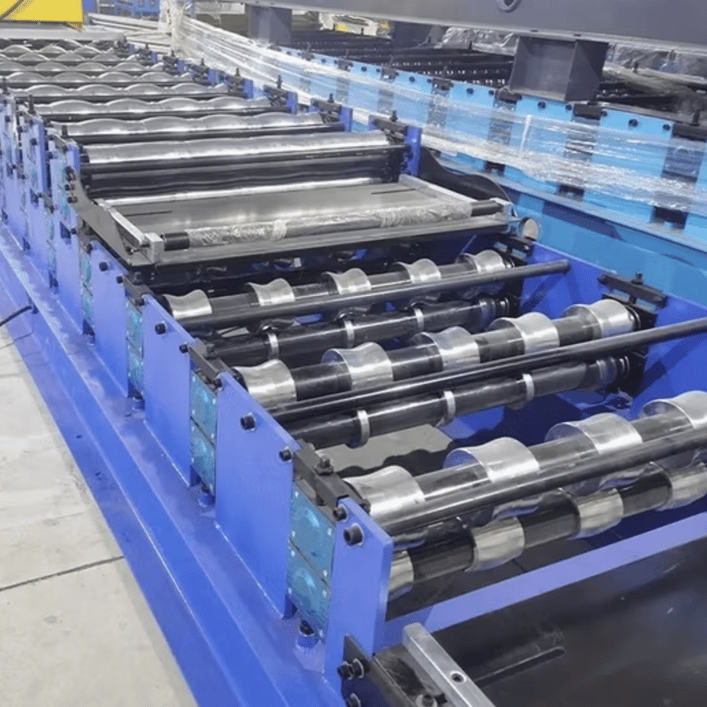

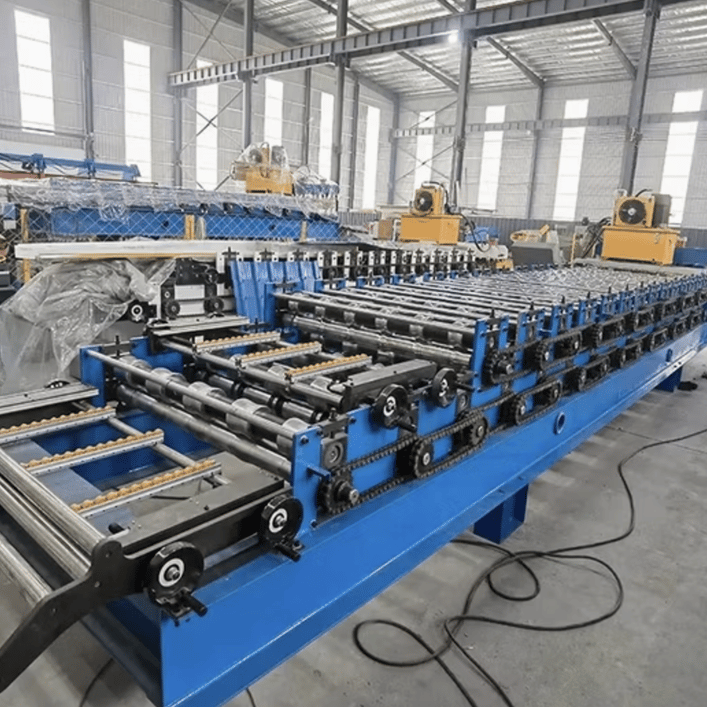

IBR roll forming machines are engineered to transform metal coils into high-quality IBR roofing sheets through a continuous bending process. The machines feature robust construction, precise roller systems, and advanced automation for efficient and consistent production.

These machines are capable of producing various IBR profile sizes and thicknesses to meet the diverse requirements of the South African roofing market. With their ability to handle different materials like galvanized steel, aluminum, and zinc-coated sheets, these machines are versatile and adaptable.

Specifications of IBR Roll Forming Machines

1. Roller Materials:
   • High-grade 45# steel with hard chrome plating for longevity and precision.
2. Frame Structure:
   • Heavy-duty steel frame for stability and reduced vibration.
3. Roll Forming Stations:
   • 16–22 stations, depending on the profile requirements.
4. Profile Dimensions:
   • Width: 686mm–1100mm (varies based on customer requirements).
   • Thickness: 0.3mm–0.8mm.
5. Material Compatibility:
   • Galvanized steel, pre-painted steel, aluminum, and zinc-coated sheets.
6. Production Speed:
   • 15–30 meters per minute.
7. Cutting System:
   • Hydraulic cutting with precision control to ensure clean cuts.
   • Blade material: Cr12Mov, heat-treated for durability.
8. Power Supply:
   • Voltage: 380V, 50Hz, 3-phase (customizable based on South African standards).
9. Control System:
   • PLC control with a user-friendly interface.
   • Touchscreen for operation adjustments and monitoring.
10. Motor Specifications:
    • Main motor: 5.5kW–11kW (depending on machine size).
    • Hydraulic motor: 3kW.
11. Extras:
    • Automatic uncoiler and recoiler.
    • Length encoder for precise measurements.
    • Safety guards and enclosures.
12. Dimensions:
    • Machine size: 7–10 meters in length, 1.5–2 meters in width.
    • Weight: Approximately 5–8 tons.

Advantages of Using IBR Roll Forming Machines in South Africa

1. Customizable Profiles: Tailored to meet local demands and architectural preferences.
2. High Efficiency: Continuous production ensures a high output rate.
3. Durable Design: Built to withstand harsh working conditions.
4. Cost-Effective: Reduces material wastage, lowering production costs.
5. Energy Efficient: Optimized motor and hydraulic systems save energy.

Question and Answer Section

Q1: What materials can be used with an IBR roll forming machine?

A1: IBR roll forming machines can process galvanized steel, pre-painted steel, aluminum, and zinc-coated sheets, making them versatile for different roofing needs.

Q2: How do I select the right IBR profile size for my project?

A2: The profile size depends on the intended application and aesthetic preferences. Common sizes include widths of 686mm and 890mm, but custom sizes can be manufactured upon request.

Q3: Can the machine handle South Africa’s standard voltage?

A3: Yes, the machines are customizable to operate on South Africa’s standard voltage of 380V, 50Hz, 3-phase.

Q4: How do I maintain an IBR roll forming machine?

A4: Regular maintenance includes lubricating moving parts, inspecting rollers and cutting blades, and checking the PLC system for software updates or errors.

Q5: Is training provided for operating the machine?

A5: Yes, most suppliers offer training sessions for operators to ensure safe and efficient use of the machine.

Q6: How does shipping and delivery work for South Africa?

A6: Machines are typically shipped in containers and delivered to major South African ports. Suppliers handle customs clearance, and delivery to your location can be arranged.

Q7: What are the typical lead times for an IBR roll forming machine?

A7: Lead times range from 30 to 60 days, depending on customization and manufacturing schedules.

Q8: Are spare parts readily available?

A8: Most suppliers provide spare parts and support to ensure uninterrupted operation.
