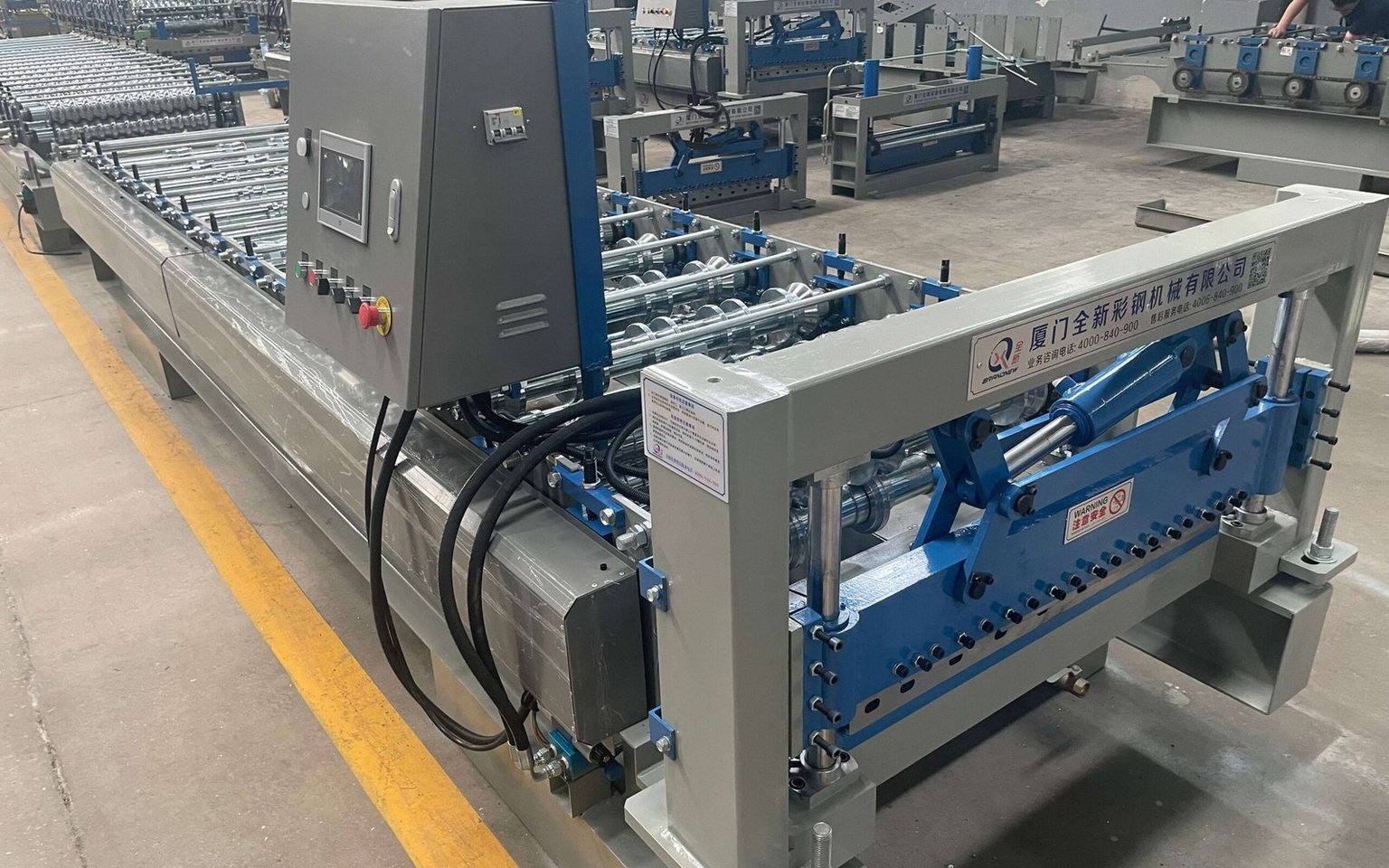

IBR Roof Sheet Making Machine | Beenew, Xiamen, China

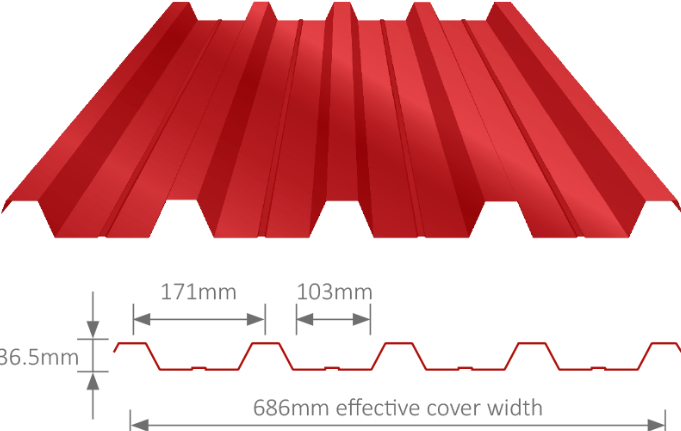

Beenew's IBR Making Machine produces IBR roof sheeting, the deep, broad trapezoidal profile widely used in South Africa, Zimbabwe and neighbouring countries for its drainage and load-bearing performance. Sheets come off the line free of edge burrs and surface scratches.

The machine is deliberately heavy: Beenew builds it from 13–15 tonnes of raw material, against the 8–10 tonnes typical for roofing machines, for stability and a long working life. The base is milled flat on a gantry mill, roller shafts are ground at least twice and rollers are CNC-machined. Beenew technicians can install the machine and train operators on site.

Key Features

• Heavy-duty construction on a 450 mm H-beam base
• Hard-chromed 45# steel rollers on 75 mm solid shafts
• Heat-treated cutting frame and quenched Cr12 blade
• Mitsubishi, Siemens or Panasonic control, English and Chinese
• On-site installation and operator training available

Technical Specifications

• Uncoiler: 5 t hydraulic, electric uncoiling; coil ID 460–508 mm, OD 1,350 mm; 3 kW hydraulic, 5.5 kW motor
• Machine base: 450 mm H-beam
• Forming stations: 16

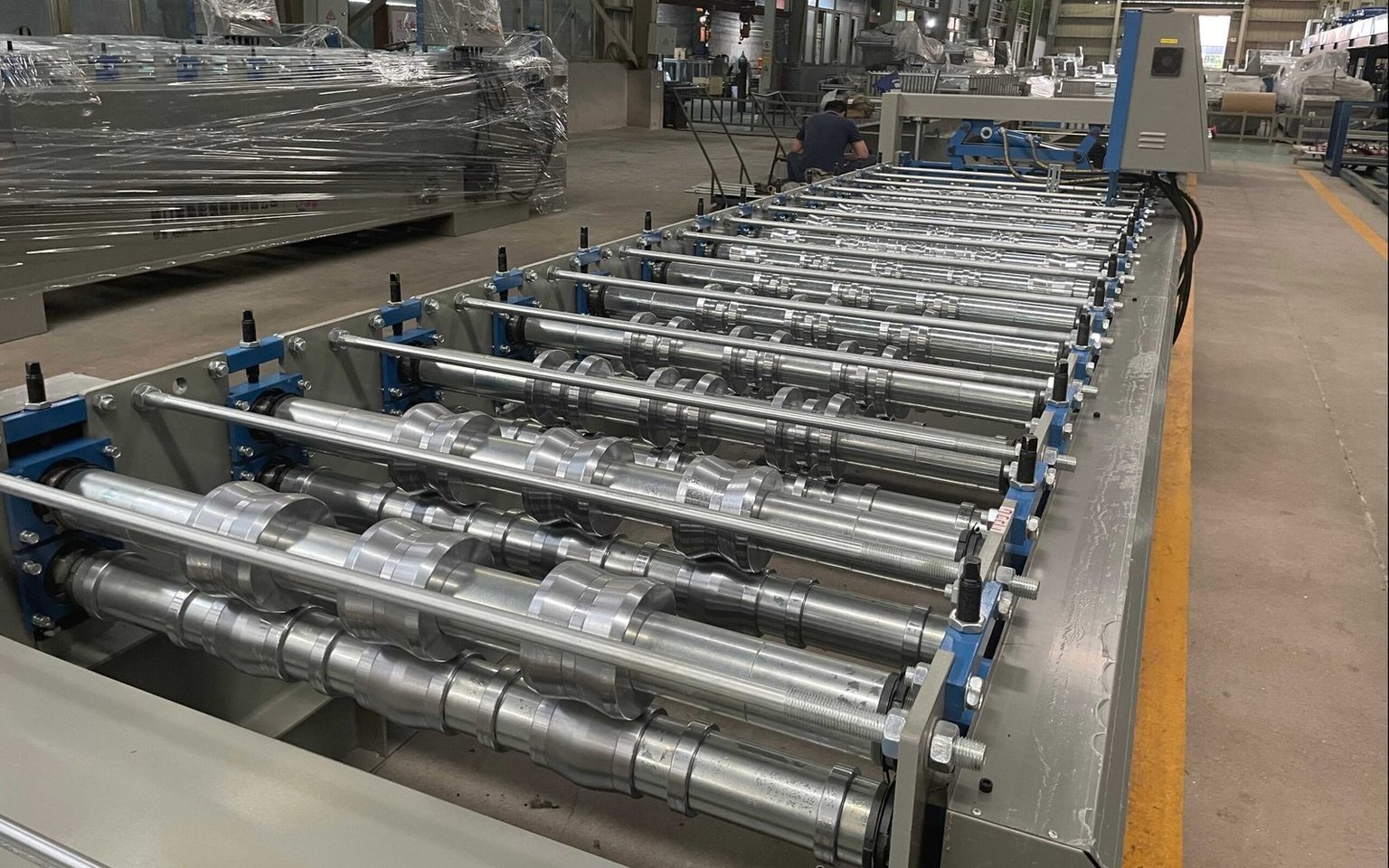

• Rollers: 45# steel, CNC-machined, chrome-plated, HRC 58–62
• Shafts: 75 mm, 45# steel; chromed spacers
• Main motor: 5.5 kW
• Transmission: 1.2" chain with guards
• Forming speed: Up to 30 m/min (excluding cutting)

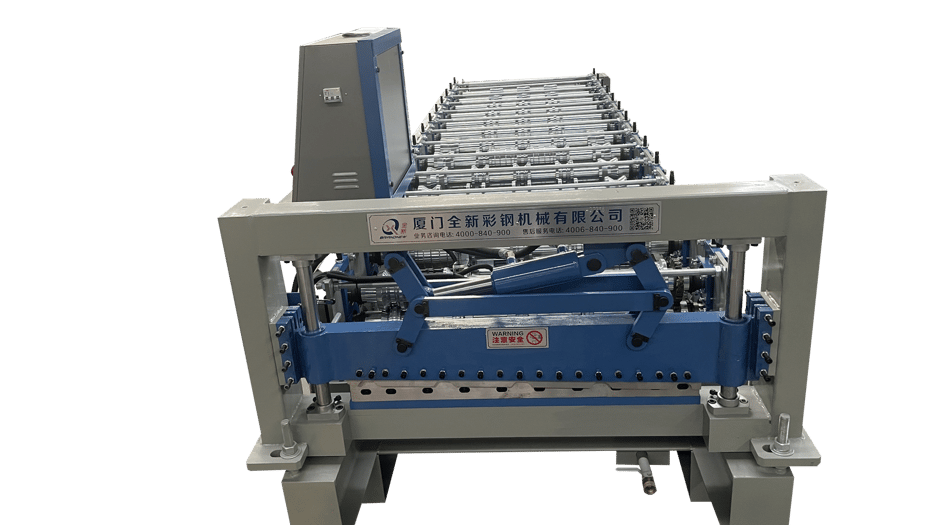

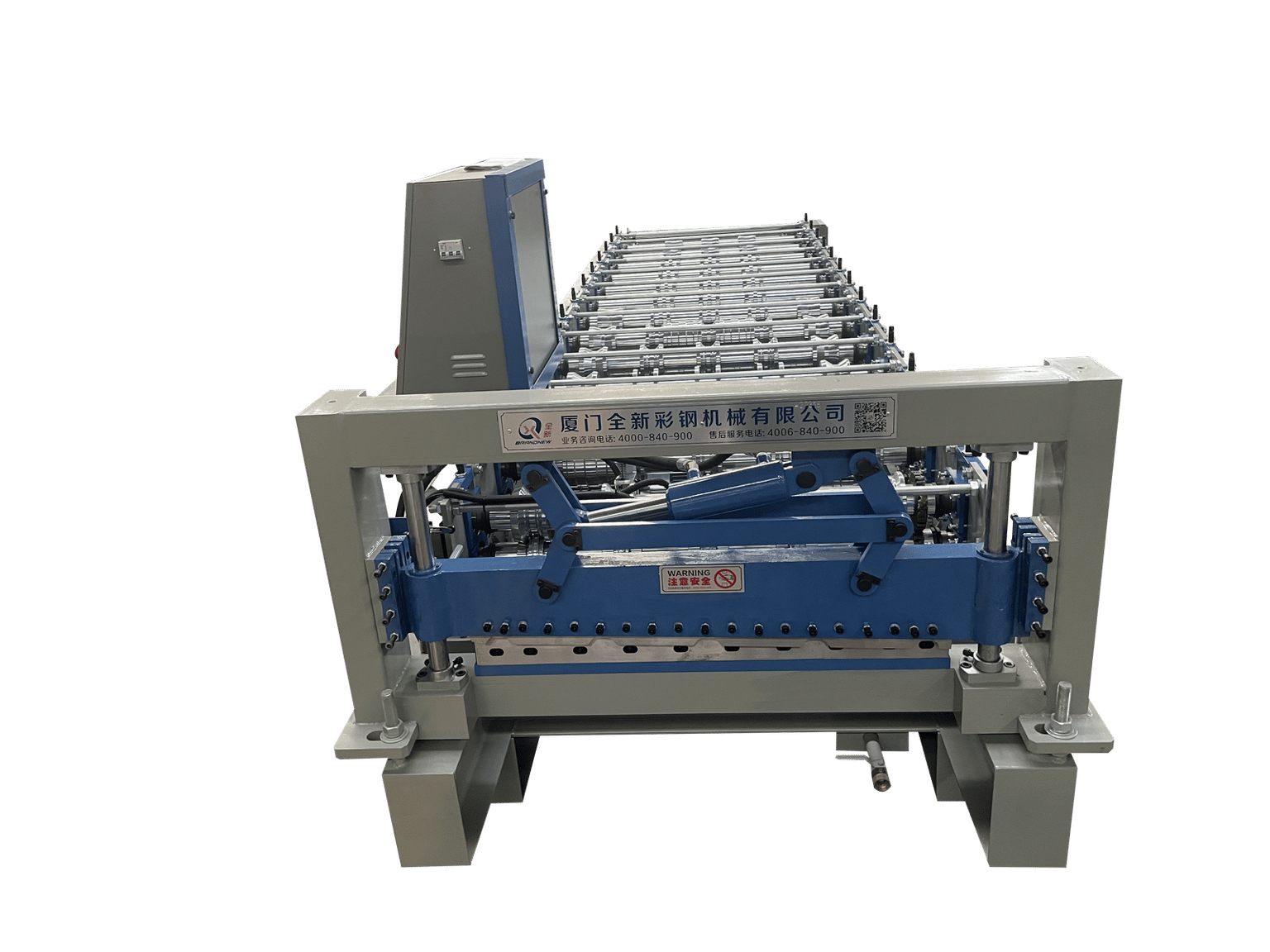

• Cutting: Hydraulic, Cr12 blade HRC 58–62, 3 kW, 12 MPa
• Length tolerance: ±2 mm
• Control: Panasonic or Siemens PLC, Yaskawa inverter, Omron encoder, Schneider electrics, MCGS touchscreen
• Power supply: 380 V, 50 Hz, 3-phase

Applications

• IBR roofing for homes, farms and commercial buildings
• Wall cladding for industrial buildings
• Roofing suppliers in southern and eastern Africa

Commercial Details

• Brand: Beenew
• Manufacturer: Xiamen Beenew Machinery Co., Ltd.
• Place of origin: Xiamen, Fujian, China

Frequently Asked Questions

• How fast is it? Up to 30 m/min forming speed, excluding cutting time.
• Why is it heavier than other IBR machines? The extra steel makes it more rigid and stable, for consistent profiles and a longer life.
• Can Beenew install it? Yes. Technicians can install the machine and train your operators.
• What should I send for a quotation? Your IBR profile drawing, material and thickness, coil width, power supply and output target.
