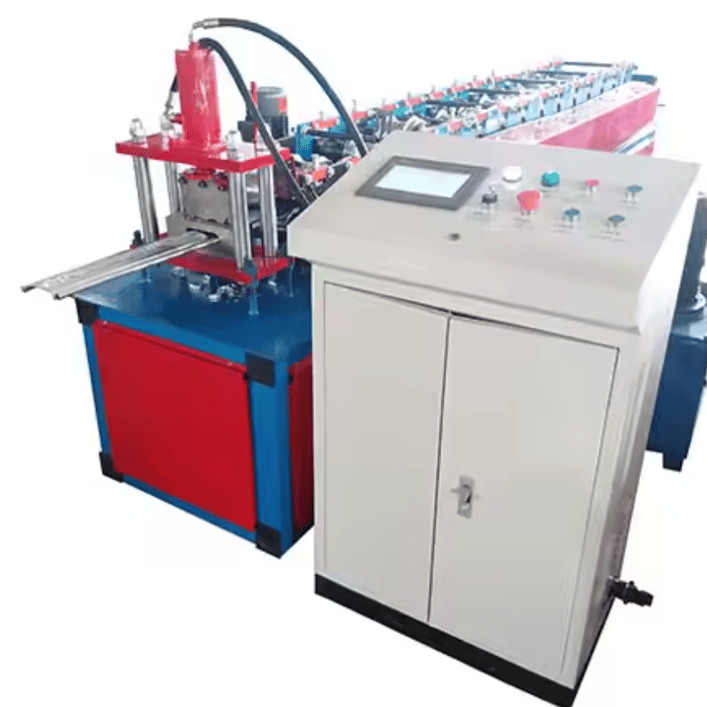

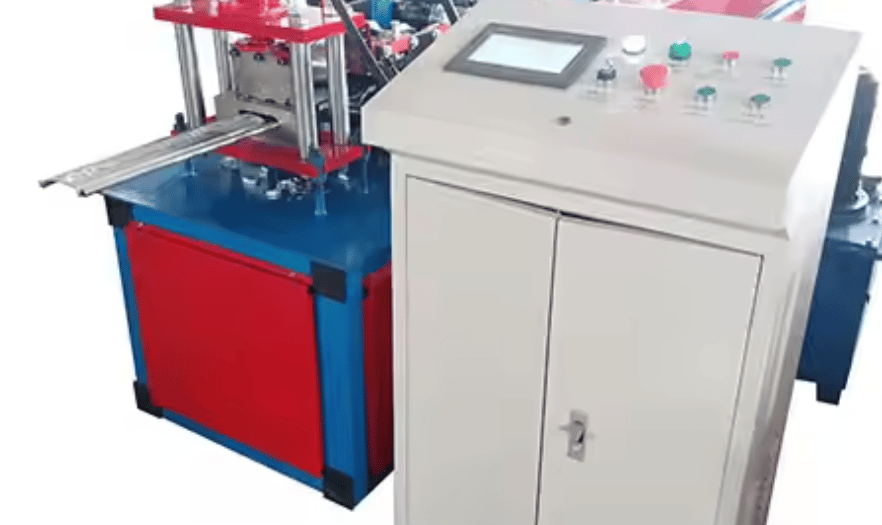

Industrial Roller Shutter Door Roll Forming Machine – United Arab Emirates

Industrial Roller Shutter Door Roll Forming Machine – United Arab Emirates

High-precision production | Custom-built for UAE market | Designed for continuous operation

Product Overview

The Industrial Roller Shutter Door Roll Forming Machine is a heavy-duty, high-speed production system designed to manufacture interlocking roller shutter door slats with superior precision, durability, and output consistency. Custom-built to suit the harsh operating environments and architectural needs of the UAE market, this machine delivers unmatched performance for manufacturers, construction suppliers, and industrial contractors operating in Dubai, Abu Dhabi, Sharjah, and beyond.

Whether you are producing roller shutters for warehouses, retail stores, factories, or garages, this roll forming machine ensures clean forming, high accuracy, and minimal material waste—all while maximizing uptime and throughput.

Industries Served

This machine caters to a wide range of industries, including:

• Industrial Construction (warehouse & factory doors)
• Retail & Commercial Infrastructure (shopping malls, storefronts)
• Transportation & Logistics (garage and loading bay doors)
• Defense & Security (security shutters for high-risk facilities)
• Residential Projects (villa garages, apartment complexes)

Examples of Use Cases

• Manufacturing roller shutter slats for industrial-grade doors used in logistics hubs in Dubai.
• Producing custom-length shutter slats for sectional door assembly in Sharjah retail malls.
• High-volume production of interlocking shutter profiles for export or national infrastructure contracts in Abu Dhabi.

Machine Technical Specifications

• Machine Type: Industrial Roller Shutter Door Roll Forming Machine
• Production Speed: 10–20 meters per minute (adjustable)
• Material Thickness Range: 0.6 mm – 1.2 mm
• Material Width Range: 100 mm – 400 mm
• Material Types: Galvanized Steel, Pre-painted Steel, Aluminum
• Material Yield Strength: Up to 350 MPa (50 ksi)
• Roller Material: High-grade 45# steel with hard chrome coating
• Roller Surface Treatment: Polished and heat-treated for corrosion resistance
• Number of Forming Stations: 16–24 stations (customizable)
• Roller Shaft Diameter: 70 mm
• Shaft Material: Solid 45# steel, quenched and tempered
• Main Drive Type: Gearbox-driven or chain-driven depending on design
• Power (UAE compatible): 380V / 50Hz / 3 Phase
• Motor Power: 7.5 kW – 11 kW depending on profile type
• Cutting Method: Hydraulic post-cutting with stop-and-go accuracy
• Blade Material: Cr12Mov, heat-treated (HRC 58–62)
• Control Type: PLC control system (Siemens or Delta) with HMI touchscreen
• Operating Mode: Fully automatic with manual override
• De-coiling System: Hydraulic or manual decoiler (3T–5T capacity optional)
• Punching/Notching System (if included): Optional inline pneumatic or hydraulic system
• Machine Frame: Welded steel frame with stress relief treatment
• Thickness of Frame Steel: 18–22 mm side walls
• Profile Shape: Interlocking curved or flat shutter slat profiles
• Profile Width and Depth: Width: 100–130 mm | Depth: 12–16 mm (varies per design)
• Length Tolerance: ±1.0 mm

Safety Features

• Fully enclosed protective guards
• Emergency stop buttons
• Overload and short circuit protection system

Materials & Gauges Commonly Used

• Galvanized Steel (Z120–Z275): Common for outdoor industrial doors
• Color-Coated Steel (PPGI): Used for commercial roller shutters
• Aluminum (5052 or 3003): Lightweight shutters for retail/residential
• Material Gauge Range: Typically 0.6 – 1.2 mm
• Tensile Strength: Commonly up to 50 ksi (345 MPa)

Pricing & Customization

• Prices Start From: $38,000 USD (FOB basis)
• What Affects Final Price:
  • Profile type and number of stations
  • Automation level (manual vs. fully automatic)
  • Inclusion of punching, embossing, stacker, or coil handling systems
  • Decoiler capacity and type
  • PLC brand and electrical components
  • Custom-built safety and guarding options

Highlight: Why Choose This Machine?

✔️ Fully Customizable: Every machine is custom-built to suit your profile drawing, desired speed, and material needs.

✔️ UAE Power Ready: Built to 380V / 50Hz / 3 Phase, ready for seamless integration in UAE factories.

✔️ Efficient Forming: Minimal material waste and high-speed operation means lower production costs.

✔️ Robust Build: Designed with UAE heat, dust, and industrial workload in mind—guaranteeing long operational life.

✔️ Precision Control: Siemens/Delta PLC with touchscreen ensures easy operation and troubleshooting.

✔️ Versatile Output: Suitable for aluminum, galvanized steel, and color-coated material.

✔️ Local Delivery: Machines can be delivered directly across Dubai, Abu Dhabi, Sharjah, Ajman, and other emirates.

Customization Options Available

• Adjustable slat profile design
• Manual or hydraulic decoiler (3T–5T)
• Inline punching or embossing units
• Coil car & automatic feeder integration
• Auto stacker system for finished shutter slats
• Remote support with internet-enabled PLC
• Custom branding (logo embossing on profiles)

Warranty & Support

All machines come with:

• 1-Year Warranty from the dispatch date
• Full Technical Support and remote troubleshooting
• Spare Parts Availability and maintenance advice
• Installation guidance and operator training available upon request

Ready to Get a Quote?

To receive an accurate quote, please email your profile drawing, required material type, gauge, and any custom preferences to:

[email protected]

Frequently Asked Questions (FAQ)

Q: Can this machine form both curved and flat roller shutter slats?

A: Yes. The machine can be designed to produce either or both types depending on your profile specification.

Q: Is the machine suitable for high humidity and heat environments like the UAE?

A: Absolutely. All machines are engineered for the climate and dust conditions found in the UAE and GCC region.

Q: How long does production and delivery take?

A: Standard lead time is 45–60 days, plus shipping time to the UAE. Faster options may be available.

Q: Can the machine work with aluminum as well as steel?

A: Yes. It supports aluminum, PPGI, and galvanized steel up to 1.2 mm thickness.

Q: What if I don’t have a technical drawing of the profile?

A: Our team can assist you in designing one based on your needs. Contact us for support.

Location: All machines are new, made to order, and can be delivered anywhere in the United Arab Emirates, including Dubai, Abu Dhabi, Sharjah, and Ajman.
