Light Gauge Structural Roof and Floor Deck Roll Forming Machine Arkansas

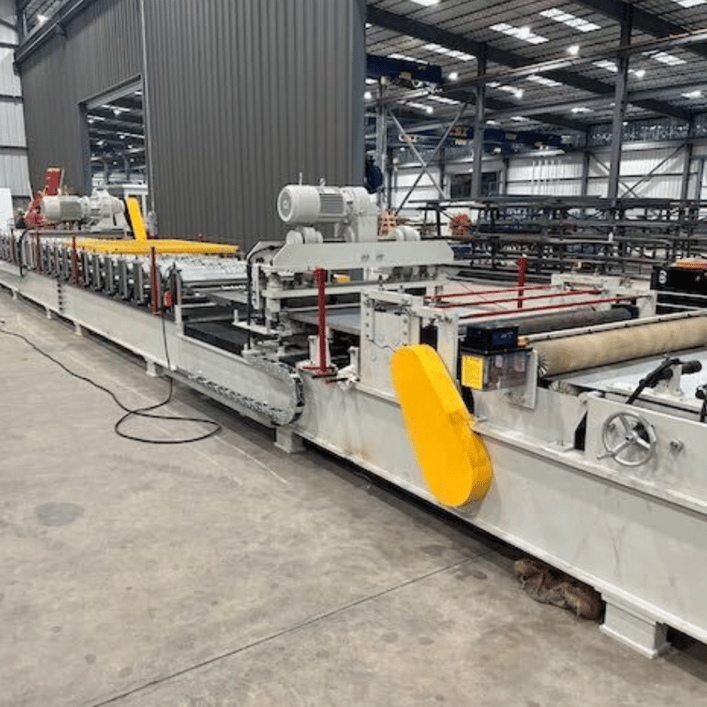

Light Gauge Structural Roof Deck and Floor Deck Roll Forming Machine – Arkansas, USA

Overview

The Light Gauge Structural Roof Deck and Floor Deck Roll Forming Machine is designed to meet the high standards of the construction industry in Arkansas, USA. Engineered for efficiency and precision, this machine is ideal for producing a variety of deck profiles, including 1.5-inch B deck, 3-inch N deck, composite metal deck, and steel form deck. All machines are custom-built to match specific profile requirements and are shipped directly from our manufacturing partner to the customer’s location.

This robust roll forming machine ensures seamless production with high speed and precision, making it an indispensable asset for companies in the construction, commercial building, and metal roofing industries across Arkansas. With options for custom profiles and additional features, this machine provides the flexibility needed to adapt to diverse project demands.

Specifications

• Forming Speed: 60 ft/min and above
• Material Thickness: 18g - 22g
• Machine Weight: 20 tons
• Machine Footprint: 85 ft
• Main Power: 480V - 3PH - 60Hz
• Motor: 32 HP
• Drive System: Gearbox & Chain Drive
• Stations: 28
• Cutting Type: Pre-Flying Shear
• Safety Covers: Optional
• Emergency Stops: Included
• Uncoiler Capacity: 15,000 lbs with Hydraulic Car

Optional Features

• Fixed base or cassette-style machines
• Auto stackers for efficient handling
• Safety covers for enhanced operator protection
• Custom profile manufacturing capability

Warranty: All machines come with a 1-year warranty from dispatch, along with comprehensive maintenance and repair support.

Industry Applications

This roll forming machine is perfectly suited for industries such as:

• Commercial Construction: Producing metal decks for large-scale buildings, warehouses, and office complexes.
• Industrial Facilities: Fabricating durable floor and roof decks for manufacturing plants.
• Metal Roofing: Crafting structural panels for roofs in commercial and industrial projects.
• Infrastructure Projects: Supporting bridges, parking garages, and other civil engineering projects with precision-formed decking.

Machine Matcher supplies a wide range of roll forming equipment, including metal roof panel machines, metal flashing machines, purlin machines, and more, making it a trusted partner for businesses in Arkansas and beyond.

Shipping and Customization

• Shipping: Directly to the customer's location in Arkansas.
• Customization: Profiles can be customized to the size and specifications required by the customer.
• Contact for Quote: Pricing is based on optional extras and customization. For a tailored quote, customers can email their requirements and profile drawings to [email protected].

Question and Answer Section

1. What profiles can this machine produce?

The machine can produce a variety of profiles including 1.5-inch B deck, 3-inch N deck, composite metal deck, and steel form deck. Custom profiles can also be manufactured based on customer requirements.

2. Can the machine be customized for specific needs?

Yes, all machines are custom-built to meet specific profile and operational requirements. Customers can choose from various options such as fixed base, cassette-style machines, auto stackers, and more.

3. What is the warranty coverage?

The machine comes with a 1-year warranty from the date of dispatch, covering parts and repair services.

4. How fast can this machine form profiles?

The forming speed is 60 feet per minute or more, ensuring efficient production for large-scale projects.

5. What kind of maintenance support is available?

Machine Matcher provides comprehensive maintenance and repair support, including setup and adjustment services.

6. How can I get a quote for this machine?

For a tailored quote, please send your profile drawings and requirements to [email protected].

7. What power supply does the machine require?

The machine operates on a 480V, 3-phase, 60Hz power supply.

For more information or to request a quote, please contact us at [email protected].
