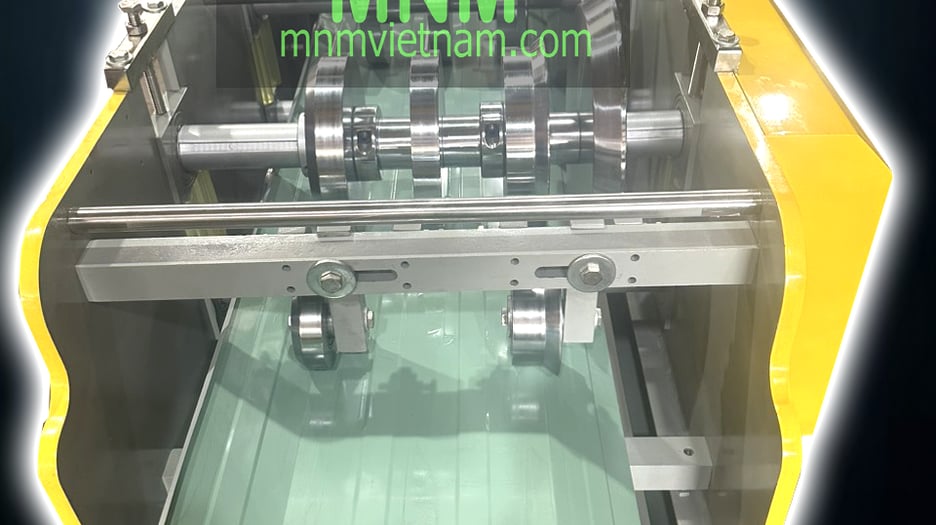

Louvre Roll Forming Machine | MNM, Binh Duong, Vietnam

MNM's Louver Roll Forming Machine forms metal louvre blades for ventilation and sun-shading. It is small and light, at 1 to 1.5 tonnes with 7 to 11 stations.

It is configured to the customer's blade profile.

Technical Specifications

• Total power: 1.5 kW
• Weight: 1–1.5 t
• Rolling speed: 18–20 m/min
• Forming stations: 7–11
• Shaft diameter: Ø60–70 mm

Applications

• Ventilation louvres
• Sun-shading and façade louvres

Commercial Details

• Brand: MNM
• Manufacturer: MNM Industrial Mechanical Limited Company
• Place of origin: Thuan An City, Binh Duong, Vietnam

Frequently Asked Questions

• What does it make? Metal louvre blades.
• How fast is it? 18–20 m/min.
• What should I send for a quotation? Your blade profile drawing, material and thickness.
