Metal Cladding Roll Forming Machine UAE

Metal Cladding Roll Forming Machine - United Arab Emirates

Product Description

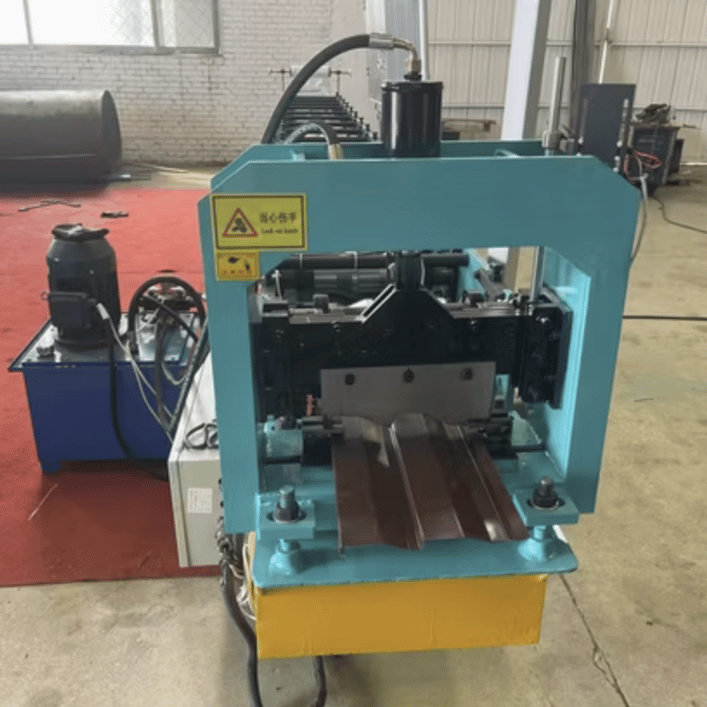

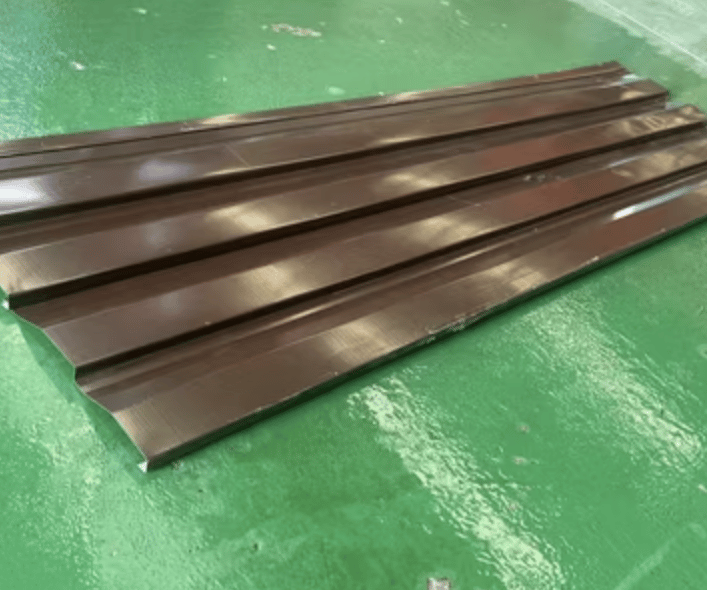

The Metal Cladding Roll Forming Machine is a high-performance, precision-engineered machine designed for the UAE’s construction and manufacturing industry. It efficiently produces metal cladding profiles using PPGI, GI, and Aluminum coils, catering to various architectural, industrial, and commercial applications.

With advanced roll forming technology and premium Siemens motors, this machine ensures superior durability, precision, and productivity. It is designed for high-speed, continuous production while maintaining consistency in profile accuracy. The machine can be customized to meet specific customer requirements, ensuring optimal performance based on the desired profile and material specifications.

Industry Applications

This Metal Cladding Roll Forming Machine serves multiple industries, including:

• Construction: Used in roofing, wall cladding, and façade applications for residential, commercial, and industrial buildings.
• Infrastructure Development: Metal cladding profiles produced by this machine are widely used in metro stations, airports, and stadiums.
• Industrial Manufacturing: Factories and warehouses use cladding for durable and weather-resistant building exteriors.
• Oil & Gas Facilities: The UAE’s petrochemical sector uses cladding for corrosion-resistant structures.

Specifications

Coil Requirements

• Material: PPGI, GI, Aluminum
• Width: 315mm
• Thickness: 0.3-0.7mm (customizable)

Power Requirements

• Power: 380V, 50Hz, 3 Phase (customizable)
• Main Motor: 5.5KW Siemens
• Cutting Motor: 4KW Siemens

Machine Configuration

• Support Frame: 300 H Steel, 10mm thick
• Forming Stations: 18 rows (as per profile design)
• Structure Thickness: 18-20mm
• Shaft Diameter: 75mm

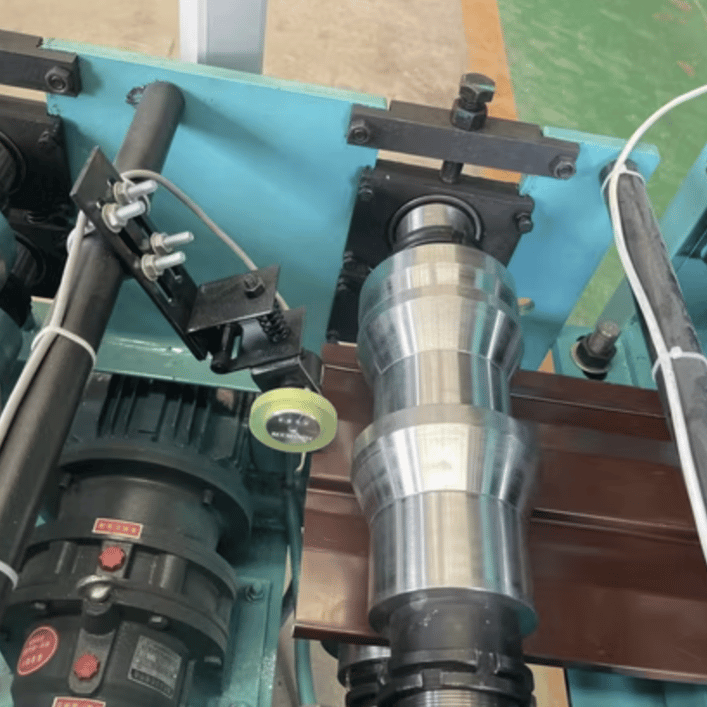

• Roller Material: 45# Steel with heat treatment
• Chains: 1.2-inch industrial chain
• Bearings: Standard (customizable)
• Production Speed: 15-30m/min
• Electric Components: Delta and Siemens
• Machine Dimensions: 7.5m (L) x 1.3m (W) x 1.6m (H)
• Machine Weight: 4.5T

Customization and Delivery

Each Metal Cladding Roll Forming Machine is custom-built based on the customer’s specific profile and material requirements. It will be shipped directly to the customer's location in the UAE from our manufacturing partner. The pricing depends on additional customization and optional extras. For a tailored quote, contact us with your specific needs.

Warranty & Support

• Warranty: 1-year coverage from dispatch date
• Maintenance & Repair: Durable support and servicing available
• Machine Setup & Adjustment: Expert setup assistance included

Additional Roll Forming Equipment

Machine Matcher supplies a variety of roll forming machines, including:

• Metal Roof Panel Machines
• Metal Flashing Machines
• Purlin Machines
• Metal Trim Machines
• Slitting Lines
• Metal Tile Machines
• Uncoilers, Coil Cars, and Embossers

Contact Us

For the best quote, send profile drawings or specifications to: [email protected]

Machine Matcher serves industries across Europe, the Middle East, North and South America, Africa, and Asia.

Q&A Section

Q1: What materials can the Metal Cladding Roll Forming Machine process?

A1: This machine can process PPGI, GI, and Aluminum materials with a width of 315mm and a thickness range of 0.3-0.7mm (customizable).

Q2: Can the machine be customized for specific profiles?

A2: Yes, the machine is custom-built to match the customer’s specific cladding profile requirements.

Q3: What is the power requirement for this machine?

A3: The standard power requirement is 380V, 50Hz, 3 Phase, but it can be customized if needed.

Q4: How long does delivery take to the UAE?

A4: Delivery times vary based on customization but generally take 6-12 weeks, including manufacturing and shipping.

Q5: Does the machine come with a warranty?

A5: Yes, all machines come with a 1-year warranty from the date of dispatch, along with durable maintenance and repair support.

Q6: How can I get a quote for this machine?

A6: To get a precise quote, please send your profile drawing, material specifications, and additional customization needs to [email protected].
