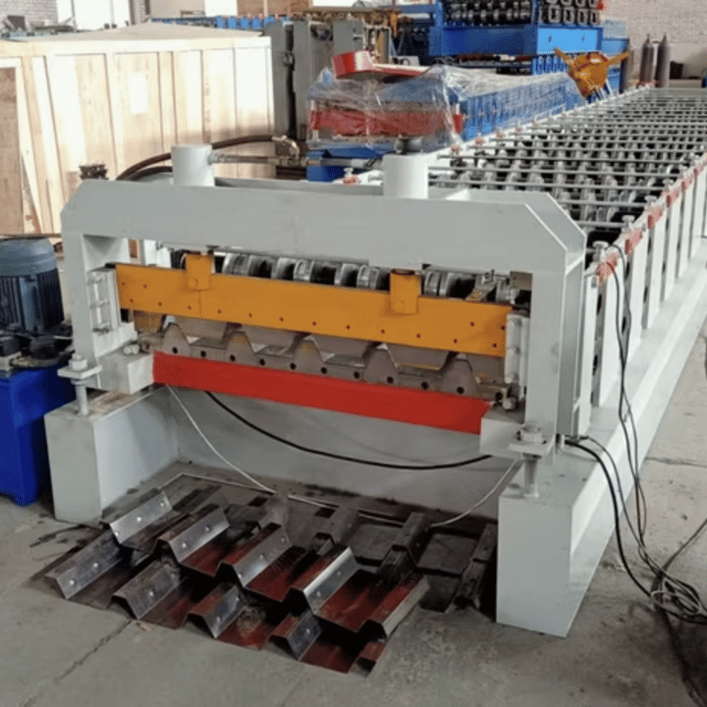

Metal Deck Roofing Roll Forming Machine in the USA

•
•
•

Metal deck roofing roll forming machines are specialized equipment designed to produce durable, high-strength metal decking panels commonly used in roofing and flooring applications in commercial, industrial, and residential projects. These machines are integral to the construction industry, providing precision-formed panels that support load-bearing structures, enhance aesthetics, and ensure long-term reliability.

Machine Description

A metal deck roofing roll forming machine takes coiled steel or other metals and transforms them into decking profiles through a series of precisely engineered rollers. These profiles are characterized by their ribbed designs, which offer structural integrity and load-bearing capacity. The machines are equipped with advanced features such as hydraulic cutting systems, automated control panels, and high-speed production capabilities to ensure efficiency and consistent quality.

Key Features

• Durability: Designed with high-grade materials to withstand continuous operation and heavy loads.
• Customization: Configurable to produce various deck panel profiles and sizes.
• Automation: PLC-controlled systems for automated operation and precision.
• Efficiency: High-speed production rates reduce operational costs and time.
• Safety: Equipped with safety guards and enclosures to protect operators.

Specifications

1. Material Specifications
   • Material: Galvanized steel, stainless steel, aluminum
   • Thickness: 0.7mm - 1.5mm
   • Width: Customizable (typically 1000mm-1250mm)
   • Yield Strength: Up to 550 MPa
2. Machine Components

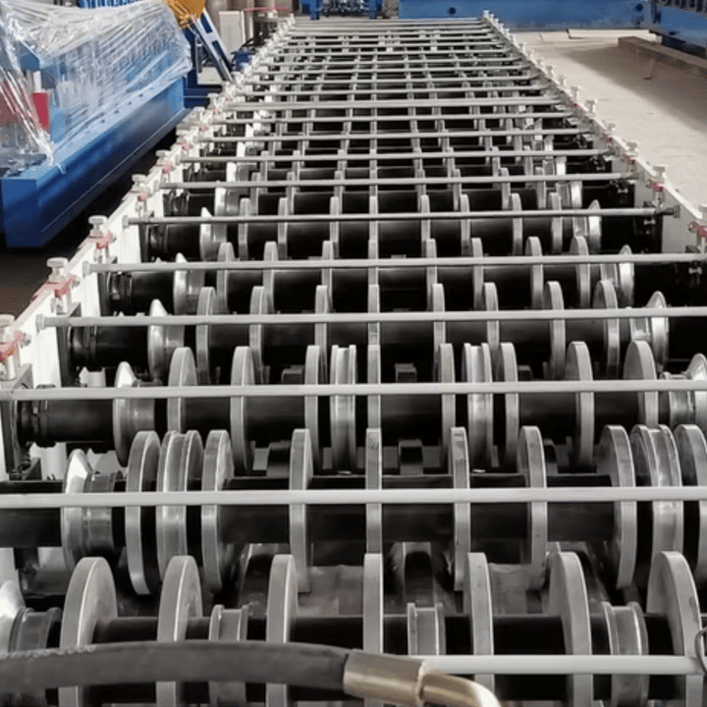

   • Rollers: High-quality steel with chrome coating for corrosion resistance
   • Frame: Heavy-duty steel frame for stability

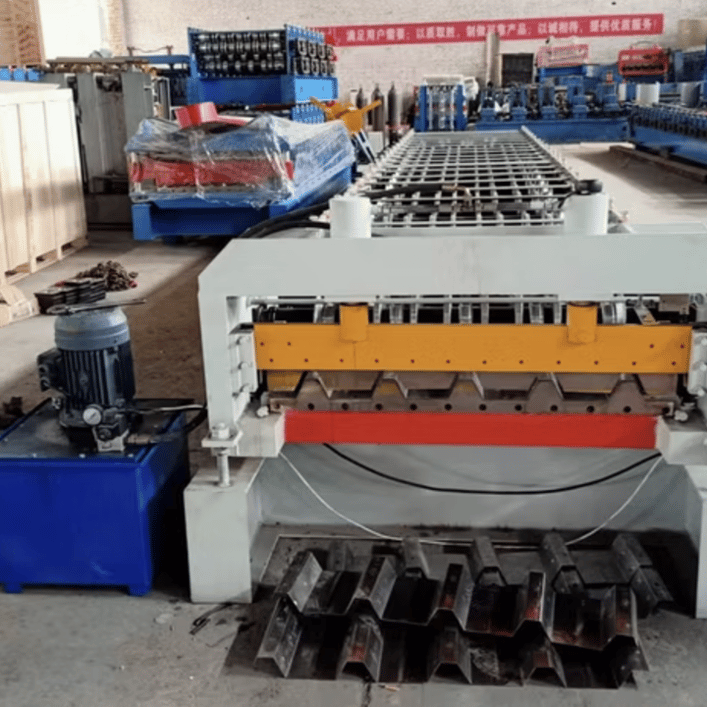

   • Cutting System: Hydraulic cutting with adjustable die for precision
   • Drive System: Servo motors for smooth operation
   • Control Panel: PLC with touchscreen interface for easy operation
   • Speed: Up to 25-30 meters per minute
   • Power Requirements: 380V/50Hz or as per U.S. standards
3. Additional Features
   • Pre-punching and embossing capabilities
   • Automated stacking system
   • Coil loading car for efficient material handling
   • Leveling and feeding system for smooth material flow

Applications

• Commercial and industrial building roofs
• Parking structures
• Warehouses and storage facilities
• High-rise buildings
• Residential construction requiring durable decking solutions

Setup and Installation Process

1. Site Preparation: Ensure adequate space and stable flooring.
2. Machine Delivery: Delivered in sections for assembly.
3. Installation: Components are assembled and aligned by professional technicians.
4. Power Connection: Connect to the appropriate power supply.
5. Testing: Initial test runs to calibrate the machine for accurate panel production.
6. Operator Training: Training on machine operation, maintenance, and safety.

Maintenance Requirements

• Regular cleaning of rollers and cutting blades to prevent buildup.
• Lubrication of moving parts to minimize wear and tear.
• Periodic inspection of hydraulic and electrical systems.
• Replacement of worn-out parts as needed.

Frequently Asked Questions (FAQs)

Q1: What materials can be used with the machine?
A: The machine works with galvanized steel, aluminum, and stainless steel in varying thicknesses from 0.7mm to 1.5mm.

Q2: Can the machine produce custom deck profiles?
A: Yes, the machine can be customized to produce specific deck panel profiles as per your requirements.

Q3: What is the production speed of the machine?
A: The machine operates at a speed of up to 25-30 meters per minute, depending on the profile complexity.

Q4: Are additional features like punching or embossing included?
A: Yes, optional pre-punching and embossing features can be integrated.

Q5: What power supply is required for the machine?
A: The machine typically requires 380V/50Hz but can be adjusted for U.S. power standards.

Q6: How long does installation take?
A: Installation usually takes 3-5 days, including testing and operator training.

Q7: Is the machine safe for operators?
A: Yes, the machine is equipped with safety guards and enclosures to ensure operator safety.

Q8: What is the typical lifespan of the machine?
A: With proper maintenance, the machine can last over 10 years.

Q9: Can the machine be relocated easily?
A: Yes, the modular design allows for easy disassembly and relocation.

Q10: Is technical support available in the USA?
A: Yes, most manufacturers provide technical support and spare parts services in the USA.
