Metal Embossing Machine – UAE

Metal Embossing Machine – Available from Machine Matcher in the UAE

Machine Matcher proudly offers a state-of-the-art Metal Embossing Machine, expertly designed to serve a wide range of industrial applications across the United Arab Emirates, including Abu Dhabi, Dubai, Sharjah, and beyond. Built to customer-specific profiles and technical requirements, this robust embossing solution delivers precision, durability, and customization options for various production environments.

Whether your facility processes sheet metal for architectural finishes, decorative panels, or industrial components, our Metal Embossing Machine is a high-performance system engineered to enhance efficiency, consistency, and product quality.

Industries Served

The metal embossing machine from Machine Matcher is widely used in the following sectors:

• Construction & Architecture: For wall panels, ceiling tiles, metal facades, and decorative sheets.
• Automotive: For interior and exterior design accents, as well as component marking.
• Appliances & Electronics: In the production of patterned casings and covers.
• Packaging & Containers: Embossed branding on metal cans, boxes, and luxury packaging.
• Furniture Manufacturing: For steel furniture with textured finishes.
• HVAC & Insulation: Used to emboss aluminum jacketing for pipes and ducts.

Example: In the architectural industry, our embossing machines create decorative patterns on aluminum sheets used for luxury interior wall cladding, providing aesthetic value while improving grip and rigidity.

Machine Type & Capabilities

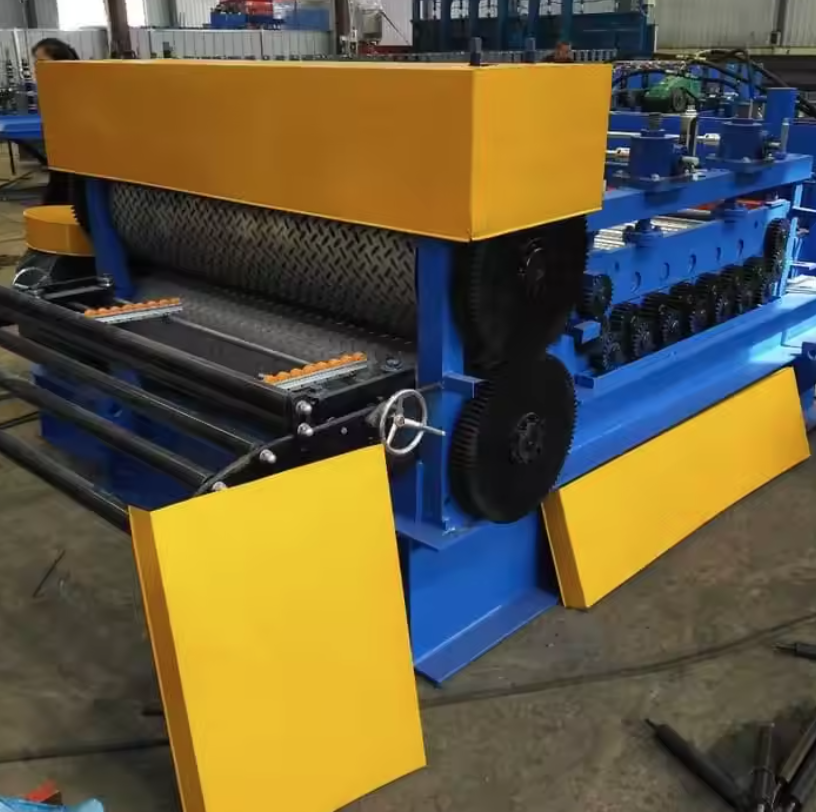

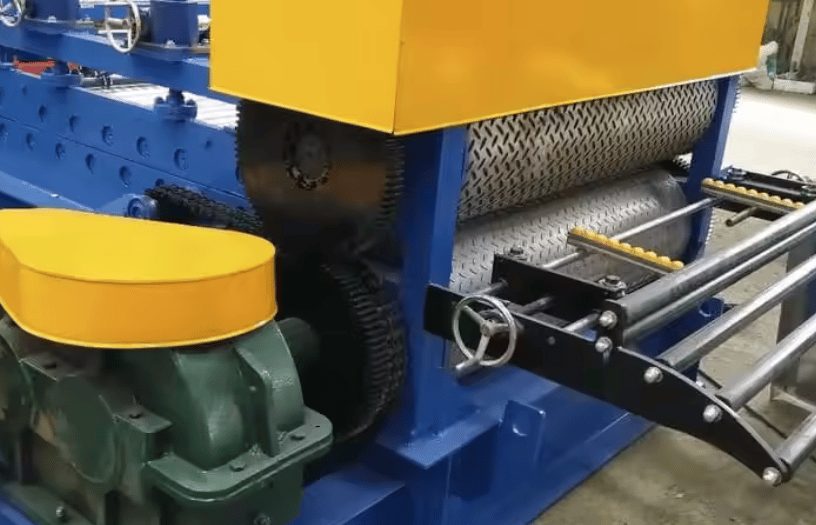

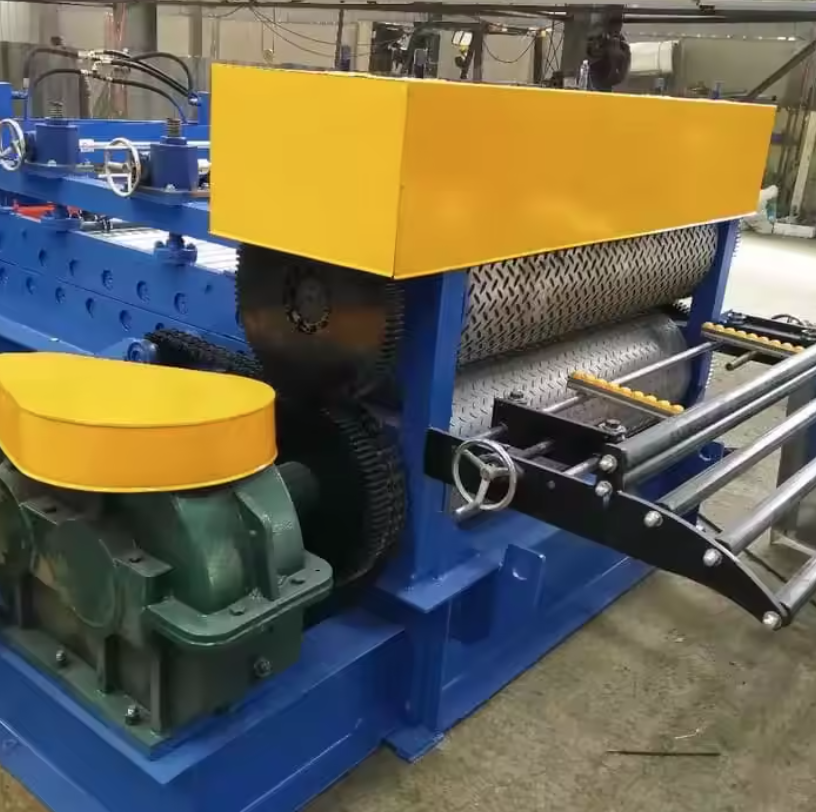

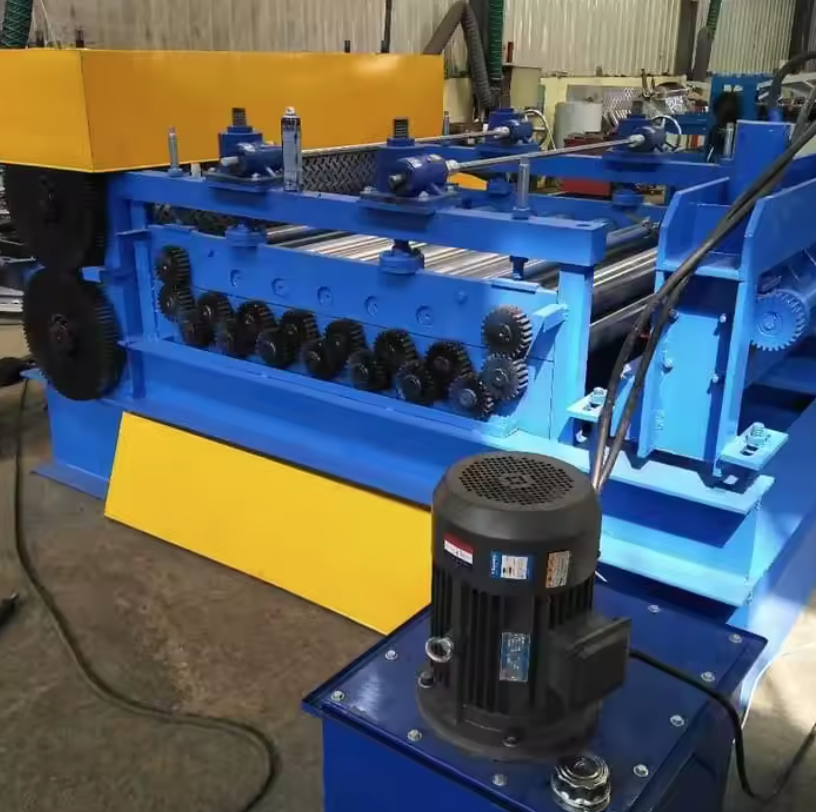

This is a precision Roll-Type Metal Embossing Machine capable of continuous embossing over coils and sheets of varying gauges and widths. It operates seamlessly across different metals while ensuring repeatable and clean pattern depth without deformation of the base material.

Technical Specifications

• Machine Type: Roll-Type Metal Embossing Machine
• Production Speed: 8–15 meters/min
• Material Thickness Range: 0.2 – 1.2 mm
• Material Width Range: 300 – 1250 mm
• Material Types: Galvanized steel, stainless steel, aluminum, copper
• Material Yield Strength: Up to 350 MPa
• Roller Material: High-grade alloy steel
• Roller Surface Treatment: Hard chrome-plated and heat-treated
• Number of Forming Stations: 2–4 (based on design)
• Roller Shaft Diameter: 70 mm
• Shaft Material: Solid 45# steel, heat treated
• Main Drive Type: Gearbox-driven
• Power (UAE Configuration): 380V / 50Hz / 3 Phase
• Motor Power: 7.5 kW – 11 kW (based on configuration)
• Cutting Method: Manual or hydraulic shear (optional)
• Blade Material: Cr12MoV, heat-treated
• Control Type: PLC with HMI touchscreen
• Operating Mode: Semi-automatic or fully automatic
• De-coiling System: Manual or hydraulic decoiler (optional up to 5T)
• Punching/Notching System (if included): Optional pneumatic or hydraulic
• Machine Frame: Welded steel structure
• Thickness of Frame Steel: 18–22 mm
• Profile Shape: Customizable embossing pattern
• Q: Can the machine be customized for our profile? A: Yes, 100%. We build machines tailored to your profile drawings and requirements.
• Profile Width and Depth: As per customer drawing (standard depth: 0.2–0.6 mm)
• Length Tolerance: ±1.5 mm per 3 meters
• Safety Features:
  • Protective Covers/Guards
  • Emergency Stop Button
  • Overload Protection System

Customization Options

Machine Matcher offers extensive customization for all embossing machines, including:

• Custom roller designs (based on your sample or CAD drawing)
• Adjustable embossing pressure
• Variable speed control
• Integrated hydraulic decoiler and recoiler
• Touchscreen interface in preferred language
• Color, frame dimensions, and cutting type options

Unique Selling Propositions (USPs)

• Custom-Built for Your Profile: Each machine is made to order—tailored to your specifications and local requirements.
• Durability & Strength: Heavy-duty steel frame and hardened rollers ensure long operational life.
• Enhanced Output: Consistent and precise embossing improves downstream production quality and visual appeal.
• Flexibility Across Materials: Designed to work efficiently with galvanized steel, stainless steel, and aluminum.
• Advanced Control System: Intuitive PLC interface with automated error detection and ease of operation.
• Reduced Waste: Accurate feed and pressure control minimize material waste and increase sheet usability.
• Support in the UAE: Local installation support and after-sales assistance are available directly from Machine Matcher.

Delivery & Availability

All machines are new and custom-built to order. Machines are available throughout the UAE, including:

• Abu Dhabi
• Dubai
• Sharjah
• Other Emirates upon request

We offer remote installation support via video guidance, and on-site installation is available upon request.

Production & Shipping Time

Q: What is the lead time for manufacturing and shipping?

A: Production typically takes 30–60 days, depending on customization. Shipping time varies based on delivery port in the UAE.

Materials & Gauges Commonly Used

Our metal embossing machines are typically used with:

• Aluminum (0.3–1.0 mm, 100–200 ksi)
• Galvanized Steel (0.4–1.2 mm, 250–350 MPa)
• Stainless Steel (0.3–0.8 mm, 200–350 MPa)

The selection of embossing depth and pattern depends on the base metal type and thickness.

Pricing & Cost Variables

• Prices Start From: USD $35,000
• What Affects the Final Price?
  • Roller customization
  • Embossing pattern complexity
  • Optional automation and control upgrades
  • Frame reinforcement, cutting system, and decoiler type

Note: Pricing is determined based on your optional extras and profile customization. Contact Machine Matcher to receive a tailored quote.

Request a Quote

If you have profile drawings or any technical details that can help us provide the best quotation, please email your requirements to:

[email protected]

Warranty & After-Sales Support

All metal embossing machines supplied by Machine Matcher include:

• One-Year Warranty from dispatch date
• Long-term spare parts availability
• Remote troubleshooting support
• Maintenance and repair service options available upon request

Choose Machine Matcher as your trusted supplier for precision metal embossing machines in the UAE. With local support, industry expertise, and complete customization, we ensure your production lines run efficiently and your end products meet the highest standards.
