Metal H Channel Roll Forming Machine in the USA

The Metal H Channel Roll Forming Machine is a specialized piece of equipment designed for fabricating high-precision H-channel profiles commonly used in construction, industrial framing, and shelving applications. These machines provide a cost-effective and efficient solution for producing H-channel sections in various sizes and materials, tailored to meet the specific needs of industries in the USA.

Machine Description

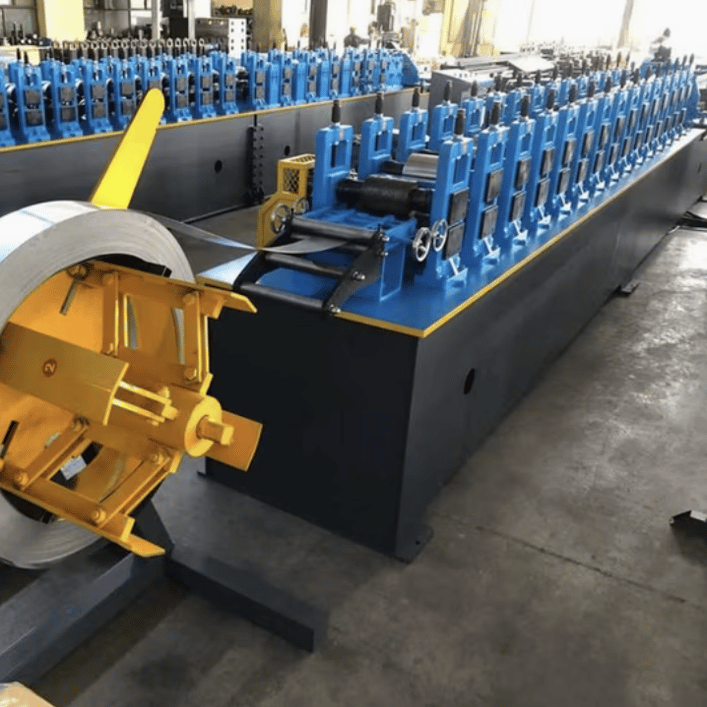

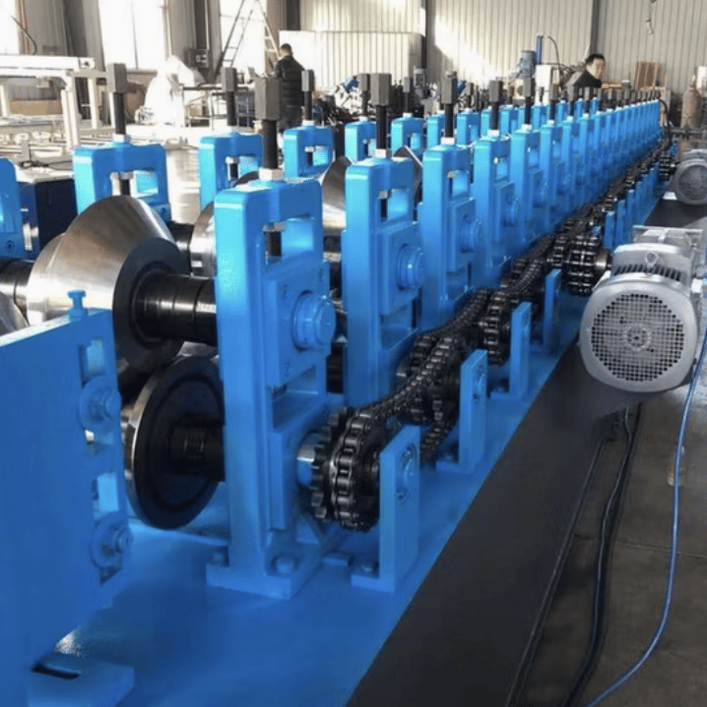

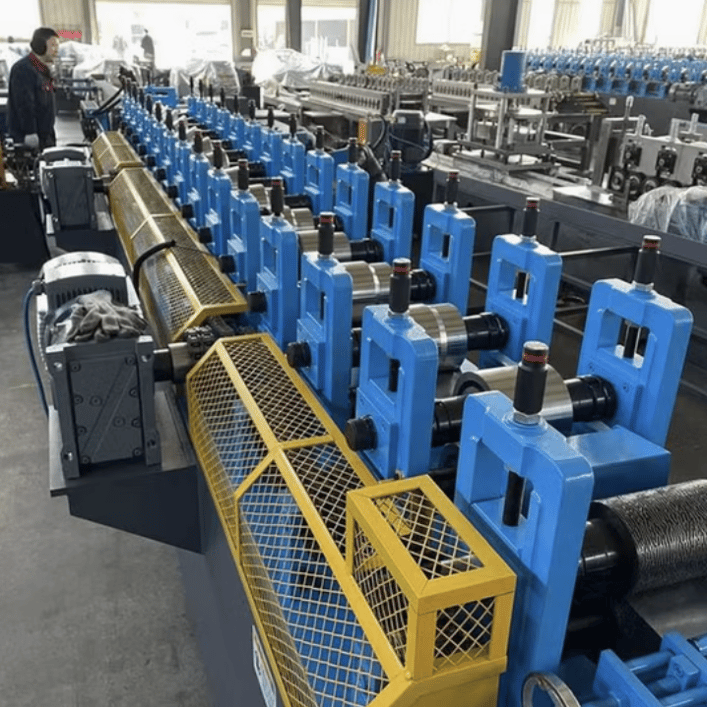

A Metal H Channel Roll Forming Machine is an advanced, automated system engineered to shape metal sheets into H-channel profiles. The process involves feeding raw metal coils into the machine, where they are progressively bent and formed through multiple roll stations.

The machine is designed for high-speed production and ensures precise dimensions and uniformity in the finished product. It is compatible with materials such as galvanized steel, aluminum, stainless steel, and mild steel, making it versatile for different industrial requirements.

Specifications

Applications

• Construction: Supports in walls, roofing structures, and industrial sheds.
• Industrial Framing: Shelving, equipment support, and factory installations.
• Infrastructure: Bridges, tunnels, and heavy-duty support structures.
• Commercial Use: Partition systems and display racks.

Advantages

1. Efficiency: Produces H-channel profiles quickly and consistently.
2. Customization: Adjustable to produce various sizes and thicknesses.
3. Cost-Effective: Reduces material wastage through precision forming.
4. Durable Construction: Ensures long machine life and low maintenance.
5. Compliance: Adheres to USA power and safety standards.

Setup and Installation

1. Place the machine on a level surface in a well-ventilated area.
2. Connect to the designated power supply (check US voltage requirements).
3. Install and align the rollers according to the required profile specifications.
4. Load the metal coil using a coil car or uncoiler.
5. Calibrate the PLC system and run a trial batch to ensure proper alignment.
6. Begin production after ensuring all safety protocols are in place.

Maintenance

• Regularly inspect rollers for wear and tear.
• Lubricate moving parts weekly to ensure smooth operation.
• Clean the PLC control panel and sensors to avoid dust accumulation.
• Conduct monthly checks on the hydraulic cutting system.
• Replace damaged blades and worn rollers promptly.

Question and Answer Section

Q1: What materials can the machine process?

A: The Metal H Channel Roll Forming Machine can process galvanized steel, aluminum, stainless steel, and mild steel.

Q2: Can the machine produce customized H-channel sizes?

A: Yes, the machine is adjustable to create custom sizes ranging from 50 mm to 300 mm in height and width.

Q3: What safety features does the machine include?

A: It includes emergency stop buttons, safety guards, and protective enclosures to ensure operator safety.

Q4: Is the machine compatible with US power standards?

A: Absolutely. The machine can be configured to run on 220V/380V, 50Hz/60Hz to meet US standards.

Q5: How fast can the machine produce H-channels?

A: The machine operates at speeds of up to 30 meters per minute, depending on material and profile complexity.

Q6: Are there optional extras available?

A: Yes, optional extras include stackers, remote PLC control systems, coil car tippers, and uncoilers.

Q7: What is the average lifespan of this machine?

A: With proper maintenance, the machine can last 10-15 years or more.

Q8: Does it require specialized training to operate?

A: While the machine is user-friendly, basic training on PLC control and safety measures is recommended.
