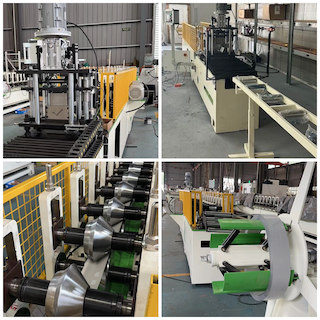

Metal J-Bead Roll Forming Machine

A J-Bead Roll Forming Machine is a specialized roll forming system designed to produce J-shaped bead profiles used primarily in drywall finishing, panel edging, and construction applications. These machines ensure precision, consistency, and high-speed production of J-bead profiles, catering to industries that demand seamless, high-quality metal finishing.

This guide provides a comprehensive overview of the Sheet Metal J-Bead Roll Forming Machine, covering machine specifications, features, applications, installation, maintenance, and a Q&A section.

Machine Description

The Sheet Metal J-Bead Roll Forming Machine is designed for forming J-bead profiles from galvanized steel, stainless steel, aluminum, or other sheet metal materials. This machine processes metal sheets through multiple roller stations to create the J-bead profile with precision and accuracy.

Key Features of the J-Bead Roll Forming Machine

• Automatic Feeding System: Ensures smooth sheet feeding for uninterrupted production.
• Precision Rollers: Designed to maintain the perfect J-bead shape with high accuracy.
• Hydraulic Cutting System: Delivers clean, burr-free cuts at the desired length.
• Servo Motor & PLC Control: Guarantees automated operation, reducing manual intervention.
• Adjustable Forming Stations: Allow flexibility in producing different J-bead sizes.
• Durable Construction: Made from heavy-duty steel, ensuring machine longevity and durability.
• High-Speed Production: Capable of forming J-bead profiles efficiently, improving production rates.

Common Applications

The J-bead profiles made by this machine are widely used in:

• Drywall installation
• Ceiling structures
• Edge trims for panels
• Metal cladding and architectural applications
• Industrial enclosures and HVAC systems

Machine Specifications

Location-Based Details

This machine is available in various locations worldwide, including:

• United States – Popular for drywall construction projects.
• Europe – Used in architectural metalwork and wall finishing.
• Middle East – Utilized in industrial construction and high-rise buildings.
• Asia – Demand driven by expanding commercial infrastructure.
• Africa – Used in manufacturing and building renovation projects.

Customization for Different Locations

• Voltage Adjustments: Machines can be modified to support 220V, 380V, 415V, or 440V power requirements.
• Profile Adjustments: Custom J-bead profiles can be developed based on regional construction needs.
• Climate Adaptability: Machines are equipped with corrosion-resistant coatings for humid environments.

Installation & Setup

Step-by-Step Installation Process

1. Positioning: Place the machine on a stable foundation to prevent vibrations.
2. Power Connection: Connect the machine to the appropriate power supply.
3. Material Feeding Setup: Align metal sheets properly with the feeding guide.
4. Roller Calibration: Adjust the roller stations for the required J-bead dimensions.
5. PLC Programming: Set up the control system with speed, length, and cutting parameters.
6. Test Run: Conduct a trial production to ensure everything is functioning correctly.

Maintenance Requirements

• Lubricate Bearings & Rollers: Ensures smooth metal sheet movement.
• Inspect Hydraulic System: Check oil levels and hoses for leaks.
• Clean Rollers Regularly: Prevents debris buildup affecting profile quality.
• PLC & Sensor Calibration: Ensures accurate cutting and forming.
• Tighten Screws & Bolts: Keeps machine parts secure during operation.

Question & Answer Section

Q1: What is a J-Bead Roll Forming Machine used for?

A J-Bead Roll Forming Machine is used for producing J-shaped bead profiles for drywall finishing, panel edging, and metal cladding applications.

Q2: Can this machine handle different materials?

Yes! It can process galvanized steel, stainless steel, aluminum, and other sheet metals with thicknesses ranging from 0.3mm to 1.5mm.

Q3: How fast can this machine produce J-bead profiles?

The forming speed varies from 10 to 30 meters per minute, depending on the material thickness and motor capacity.

Q4: Is the machine fully automated?

Yes, the PLC control system with HMI touchscreen automates most functions, minimizing manual adjustments.

Q5: Can I get a custom J-Bead profile?

Absolutely! We offer custom roll designs to match your specific J-bead profile needs.

Q6: What power requirements does this machine need?

Standard power supply is 380V/50Hz/3 Phase, but we can modify it to 220V, 415V, or 440V based on your location.

Q7: What is the expected lifespan of the machine?

With proper maintenance, the machine can last 10+ years, thanks to its high-strength steel frame and hardened rollers.

Q8: Does the machine require a lot of maintenance?

Routine lubrication, cleaning, and component checks will keep it running efficiently with minimal downtime.

Q9: How much space do I need for this machine?

Depending on the model, the machine requires around 6m × 1.2m × 1.5m of floor space.

Q10: Can the machine be shipped internationally?

Yes! We ship worldwide and provide installation support and training.

Conclusion

The Sheet Metal J-Bead Roll Forming Machine is a versatile, high-speed production machine for J-bead profiles used in drywall and construction projects. With advanced automation, durable design, and custom profile capabilities, it is an ideal investment for manufacturers, contractors, and steel processing businesses.

If you're interested in purchasing or customizing a J-Bead Roll Forming Machine for your location, feel free to contact us for specifications, pricing, and installation support.
