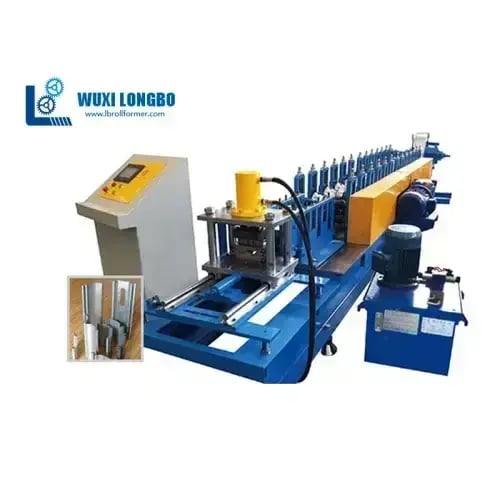

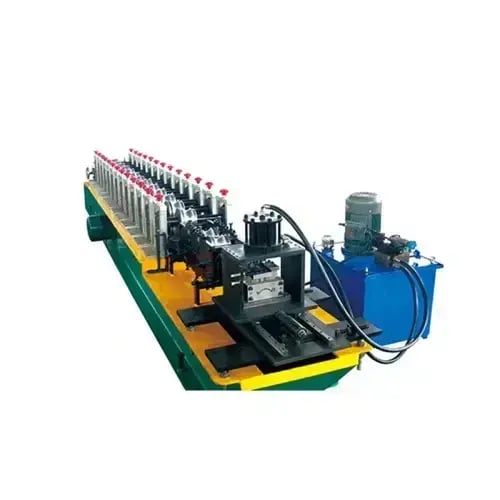

Metal Rolling Shutter Forming Machine in Wuxi, China
Main Roll Former
1. Stations: 13
2. Rollers material: CR 15; HRC 60. Chrome coated: 0.03~0.05mm. The Strength in Mpa: 70 TON, 800 MPA
3. Shaft material: Diameter: 50mm, material is #45 steel. Quenched: hot treatment. The strength of the Main Shaft in Mpa:70 tons, 650MPA
4. Bearing brand: FAG Germany
5. Main Motor: 5.5 KW, 380V, 50HZ
CUTTING PLATFORM
1. Cutting type: Hydraulic system
2. Motor: 4KW; 380V; 50HZ
3. Material of cut die: CR12MOV; Quenched; the Strength in MPA: 950
