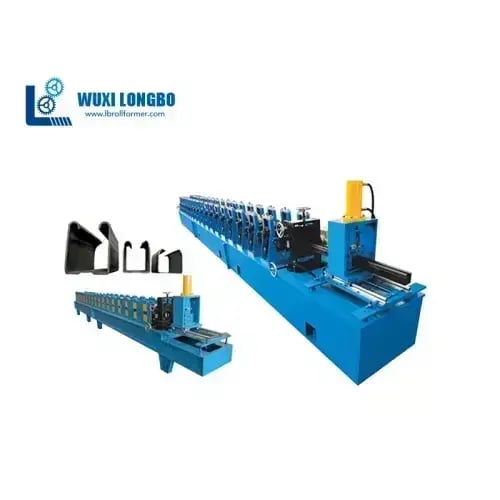

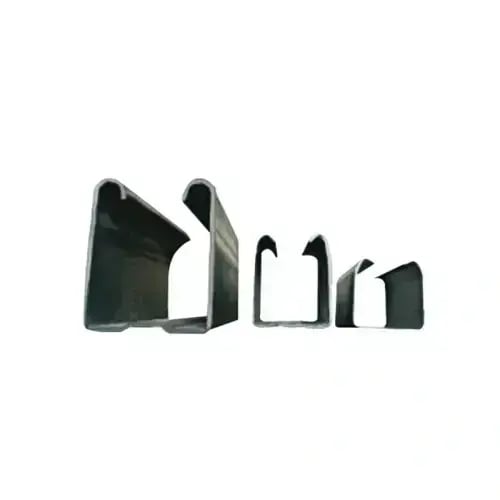

Metal Rolling Shutter U Channel Series Forming Machine in Wuxi, China

TECHNICAL DETAILS

Un-coiler

1. Capacity: 2 tons

2. Material: #45 steel quenched

3. Inner diameter: 410~ 580mm

Main roll former

1. Stations: 20

2. Rollers material: CR 15; HRC 60. Chrome coated: 0.03~0.05mm. The Strength in Mpa: 70 TON,800 MPA

3. Shaft material: Diameter: 50mm, material is #45 steel. Quenched: hot treatment. The strength of the Main Shaft in Mpa:70 tons, 650MPA

4. Bearing brand: FAG Germany

5. Main Motor: 5.5 KW, 380V, 50HZ

PLC Control Cabinet

1. Touch screen brand: Delta

2. PLC brand: Delta

3. Inverter brand: Delta

4. Main components for low pressure electricity: Schneider Germany

Output table

1. Length: 6 meters

2. Drive type: Rollers

CUTTING PLATFORM

1. Cutting type: Hydraulic cutter

2. Motor: 4KW; 380V; 50HZ

3. Material of cut die: CR12MOV; Quenched; the Strength in MPA: 950
