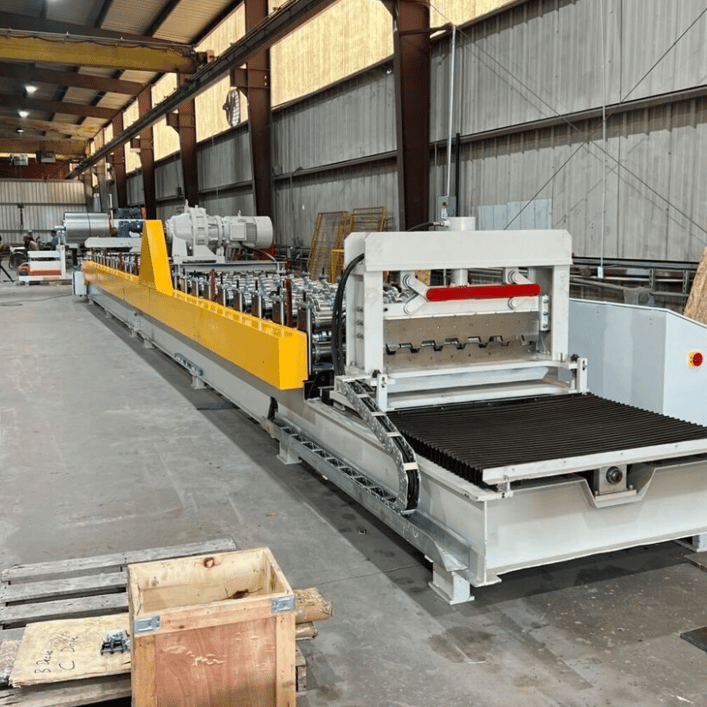

Metal Roof Deck and Floor Deck Roll Forming Machine Arizona

Metal roof deck and floor deck roll forming machines are essential for manufacturing high-quality steel decking used in commercial, industrial, and residential construction projects. In Arizona, USA, these machines are tailored to meet regional industry demands, ensuring efficiency, durability, and precision. With a robust design and high-speed operation, these machines enhance productivity while minimizing manual labor.

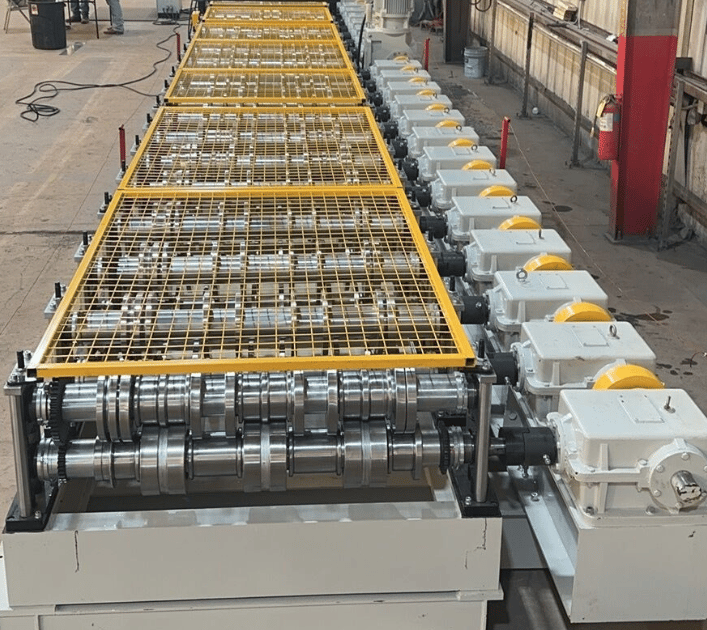

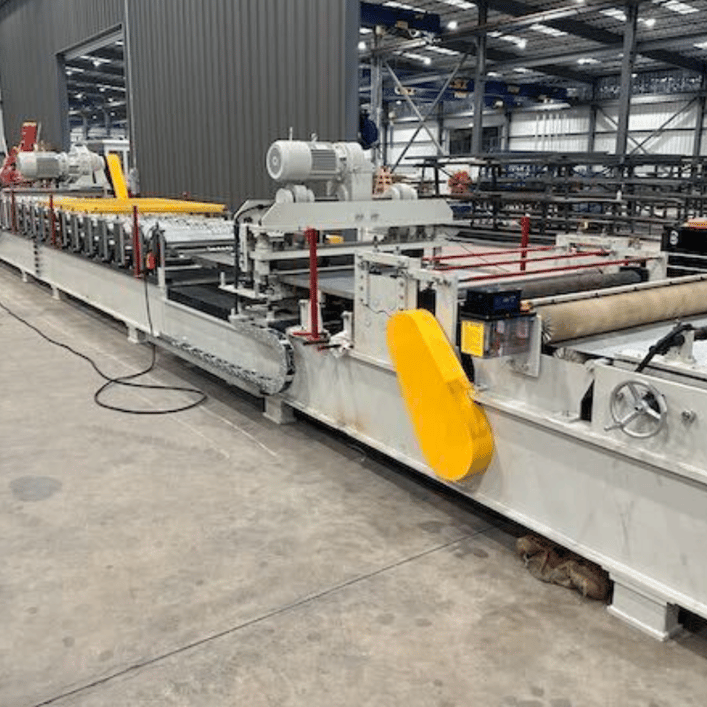

Machine Description

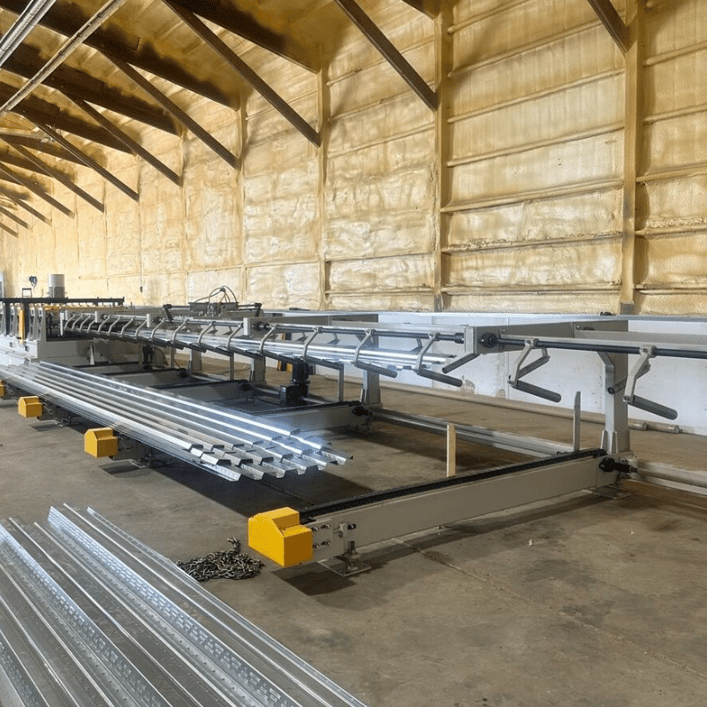

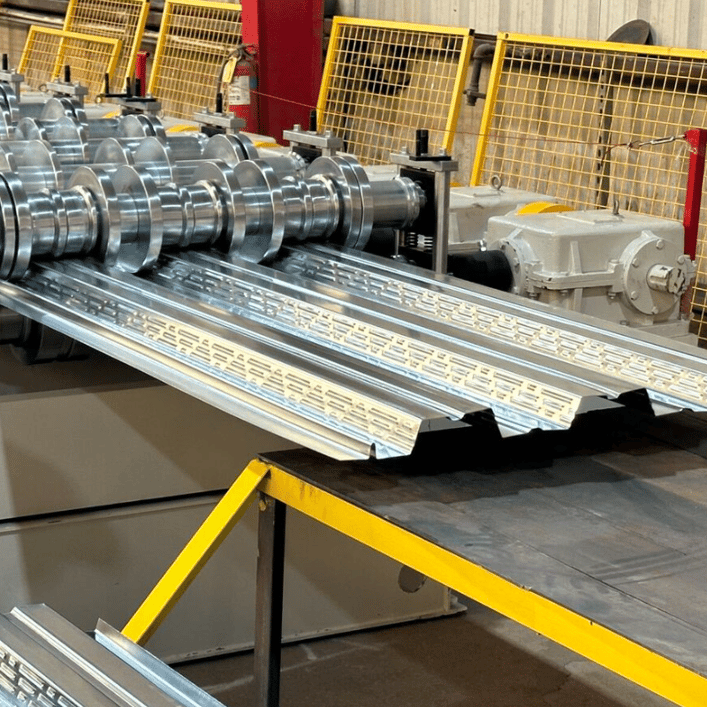

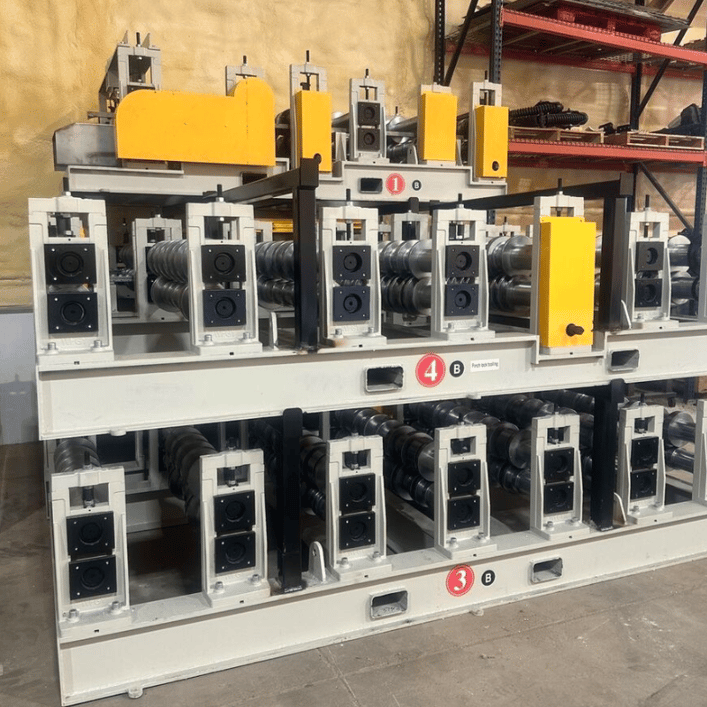

The metal roof deck and floor deck roll forming machine in Arizona is designed to manufacture various deck profiles, including 1.5-inch B Deck, 3-inch N Deck, Composite Metal Deck, and Steel Form Deck. Custom profiles can also be accommodated based on project requirements. The machine is available in both fixed base and cassette configurations to suit different production needs. Additionally, an automatic stacker is available to streamline the handling and stacking process.

Key Features

• High-Speed Production: Capable of forming at speeds over 60 feet per minute, increasing efficiency.
• Material Compatibility: Works with 18-gauge to 22-gauge steel, ensuring flexibility in production.
• Heavy-Duty Construction: Weighing 20 tons, the machine is built for stability and durability.
• Compact Footprint: At 85 feet, it fits well within standard production spaces.
• Pre-Flying Shear Cutting System: Ensures precise cuts without stopping the production line.
• Safety Features: Optional safety covers and E-stops enhance workplace security.
• 15,000lb Uncoiler with Hydraulic Car: Facilitates smooth and controlled decoiling, supporting large coil widths of 48 inches.

Specifications

Roll Forming Machine

• Forming Speed: 60 feet per minute
• Material Thickness: 18-gauge to 22-gauge
• Machine Weight: 20 tons
• Machine Footprint: 85 feet
• Main Power Supply: 480V - 3PH - 60Hz
• Motor Power: 32 HP

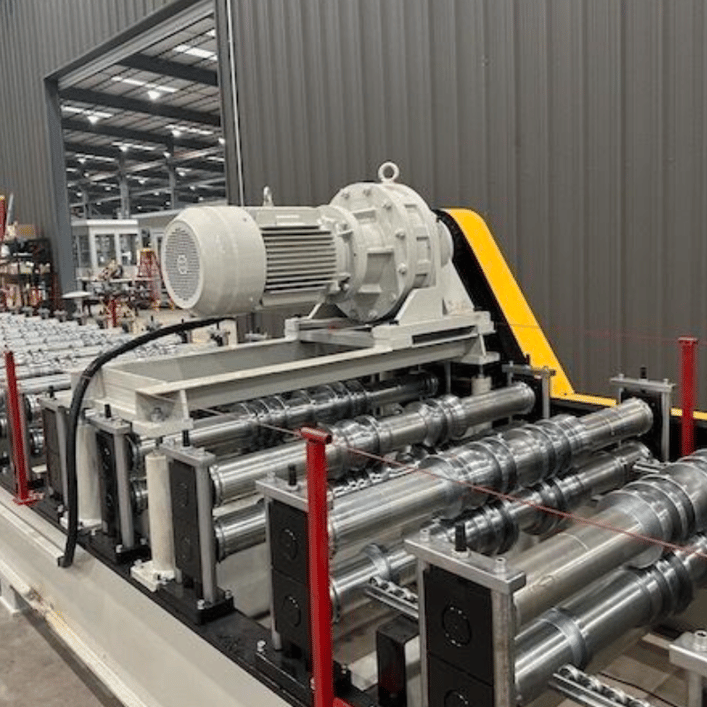

• Drive System: Gearbox & Chain Drive
• Stations: 28
• Cutting Type: Pre-Flying Shear
• Safety Features: Optional safety covers, Emergency Stops

Uncoiler with Hydraulic Car

• Decoiling Speed: 60 feet per minute
• Maximum Load Capacity: 15,000 lbs
• Coil Width: 48 inches
• Machine Weight: 3.5 tons
• Footprint: 14 feet x 6 feet x 6 feet
• Car Size: 35 inches x 28 inches
• Working Speed: Per Rollformer
• Controls: Jog controls, Proximity Sensor, Air Brake

Applications

The roll forming machine is widely used for manufacturing metal decking for:

• Commercial and industrial buildings
• Multi-story construction projects
• Residential steel framing
• Bridges and infrastructure projects

Frequently Asked Questions (FAQ)

1. What types of metal deck profiles can this machine produce?

This machine can manufacture 1.5-inch B Deck, 3-inch N Deck, Composite Metal Deck, and Steel Form Deck. Custom profiles can also be designed upon request.

2. What is the forming speed of the machine?

The machine operates at speeds of 60 feet per minute or more, ensuring high production efficiency.

3. What is the material thickness capability?

The machine can handle steel materials ranging from 18-gauge to 22-gauge.

4. Does the machine come with an automatic stacker?

Yes, an automatic stacker is available as an optional feature for seamless material handling.

5. What is the power requirement for this machine?

The machine operates on 480V - 3 Phase - 60Hz power supply.

6. What type of cutting system does the machine use?

It features a pre-flying shear cutting system that allows continuous operation without stopping the line.

7. What are the safety features of the machine?

The machine includes E-stops and optional safety covers for enhanced operator safety.

8. What is the maximum coil weight that the uncoiler can support?

The hydraulic uncoiler can handle up to 15,000 lbs.

9. How large is the machine footprint?

The roll forming machine has a footprint of 85 feet, while the uncoiler occupies 14 feet x 6 feet x 6 feet.

10. Where can this machine be used?

This machine is ideal for Arizona-based metal fabrication plants, construction firms, and steel deck manufacturers that require high-speed and precision roll forming capabilities.

Conclusion

The Metal Roof Deck and Floor Deck Roll Forming Machine in Arizona, USA, offers top-tier performance, durability, and efficiency for metal deck manufacturing. With high-speed production, customizable profile options, and advanced automation features, this machine is an excellent investment for businesses in the construction and steel industries. For more information or to request a quote, contact our team today!
