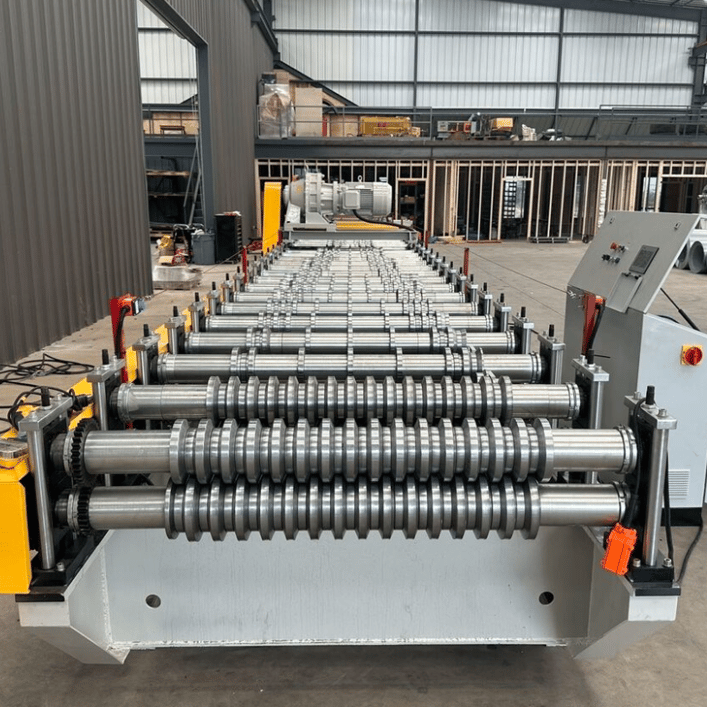

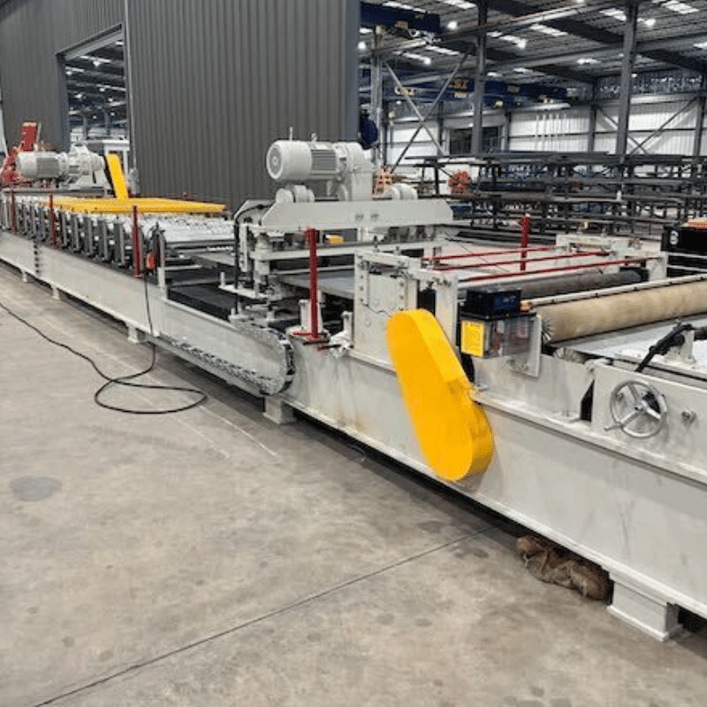

Metal Roof Deck, Composite and Form Decking Roll Forming Machine Arizona

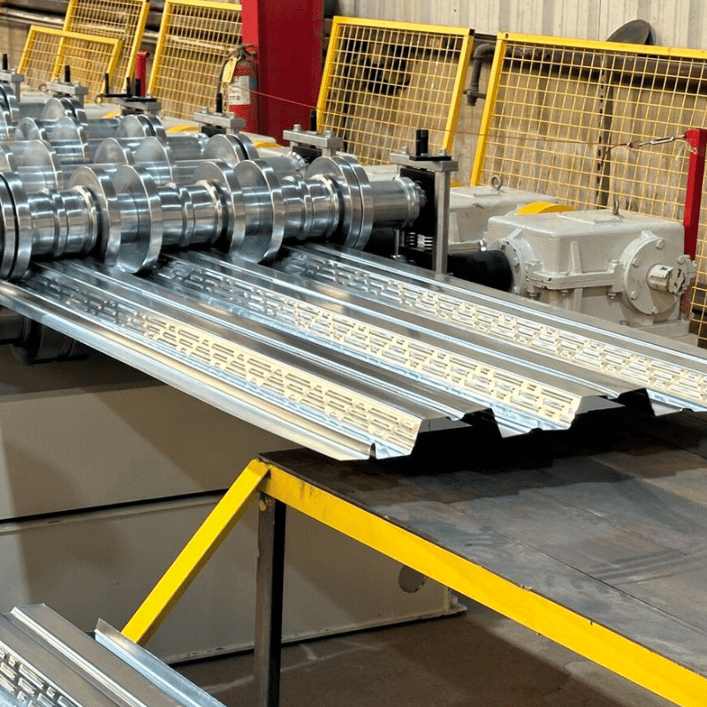

The Metal Roof Deck, Composite, and Form Decking Roll Forming Machine is engineered to produce a variety of structural decking profiles used in the commercial and industrial building industry. Located in Arizona, USA, this machine is built to handle high-volume production while maintaining precision and efficiency. It is capable of forming 1.5-inch B deck, 3-inch N deck, composite metal deck, and steel form deck, with the flexibility to accommodate custom profiles based on specific project requirements.

Designed with durability and performance in mind, this roll forming machine is available in both fixed-base and cassette configurations, offering versatility for different production setups. With optional auto stackers, material handling becomes seamless, ensuring efficiency in high-output manufacturing environments.

Machine Specifications

• Forming Speed: 60ft plus per minute
• Material Thickness: 18g - 22g
• Machine Weight: 20 tons
• Machine Footprint: 85ft
• Main Power: 480V - 3ph - 60Hz
• Motor Power: 32 HP

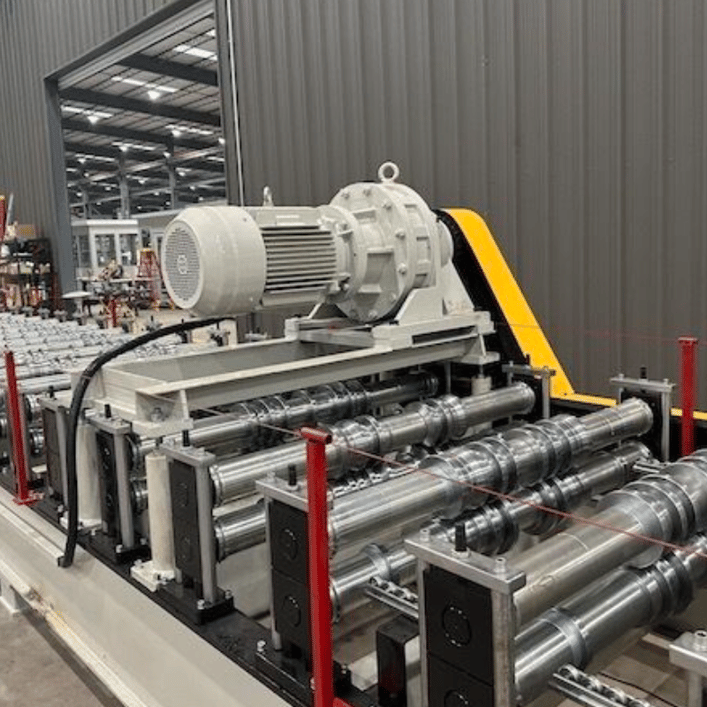

• Drive System: Gearbox & Chain Drive
• Number of Stations: 28

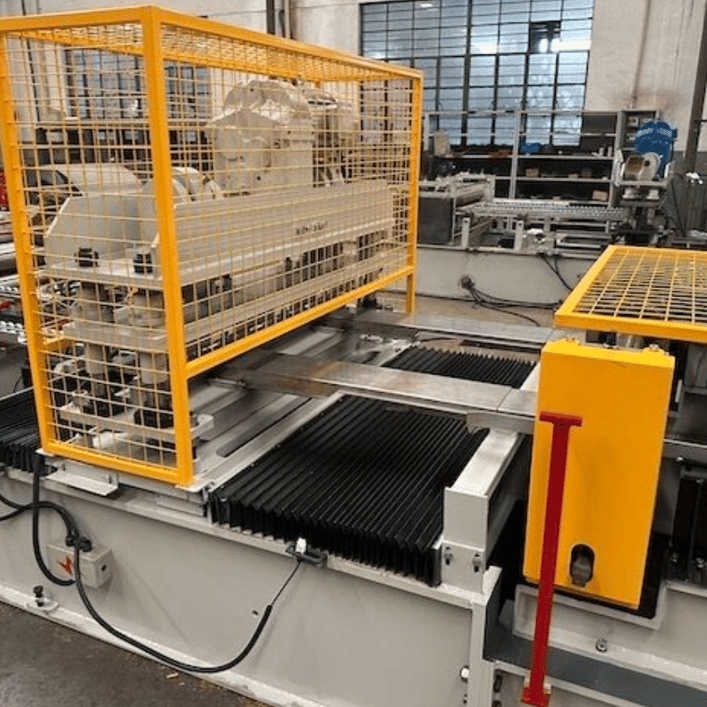

• Cutting Type: Pre Flying Shear

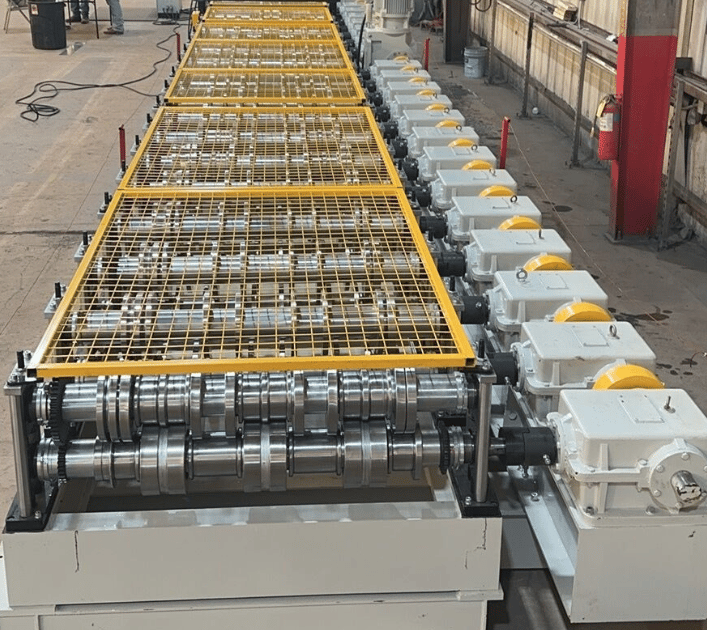

• Safety Features: Optional Safety Covers, Emergency Stops (E-Stops)
• Profile Customization: Machines can be made for custom profiles

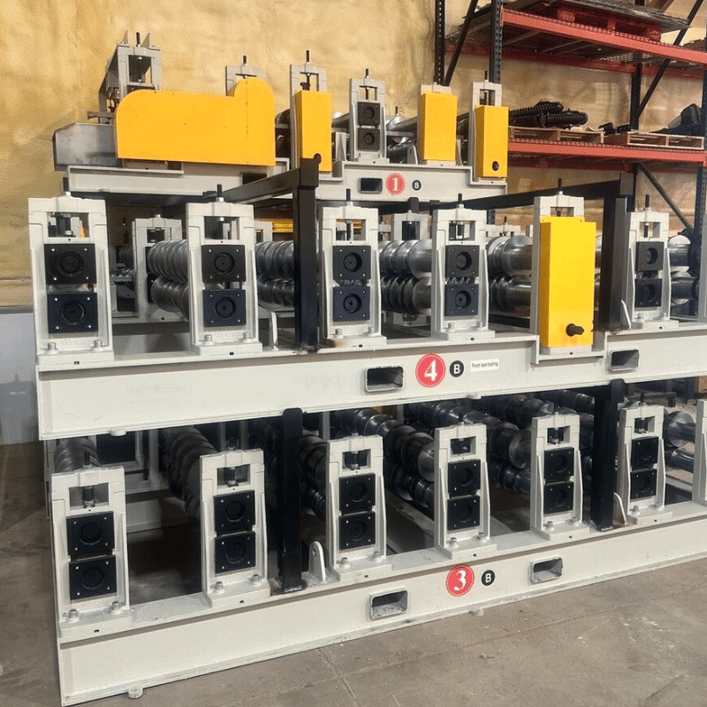

• Machine Configuration: Fixed Base and Cassette Machines Available

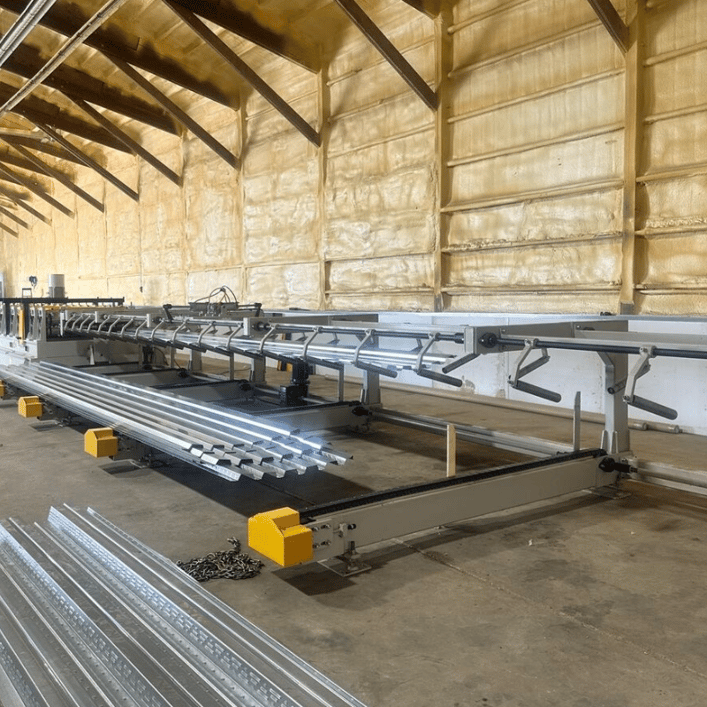

• Auto Stackers: Available for automated material handling

Uncoiler Specifications

• Capacity: 15,000 lb Uncoiler with Hydraulic Car
• Decoiling Speed: 60ft per minute
• Maximum Loading Capacity: 15,000 lb
• Coil Width: 48"
• Uncoiler Machine Weight: 3.5 tons
• Machine Footprint: 14ft x 6ft x 6ft
• Car Size: 35" x 28"
• Working Speed: Dependent on Roll Former Output
• Control System: Jog Controls, Proximity Sensor, Air Brake

Question and Answer Section

Q1: What profiles can this machine produce?

A: This machine can produce 1.5-inch B deck, 3-inch N deck, composite metal deck, and steel form deck. Additionally, we can manufacture custom profile machines to meet specific project requirements.

Q2: Can I get a machine with a different power configuration?

A: Yes, while the standard configuration operates at 480V - 3ph - 60Hz, we can customize the power requirements based on your location and needs.

Q3: What is the typical production speed of this roll forming machine?

A: The forming speed is 60 feet per minute or more, ensuring high productivity for large-scale metal deck production.

Q4: Is the cutting process manual or automated?

A: The machine is equipped with a pre-flying shear cutting system, allowing for precise and efficient cutting without stopping the production process.

Q5: Can this machine handle thicker materials than 18 gauge?

A: The standard range is 18g - 22g; however, we can customize machines to handle different material thicknesses based on project specifications.

Q6: What are the safety features of this machine?

A: The machine comes with optional safety covers and emergency stop (E-Stop) functions to ensure operator safety.

Q7: Does this machine come with an automatic stacking system?

A: Yes, auto stackers are available to streamline the material handling process and increase production efficiency.

Q8: What is the weight and footprint of the machine?

A: The main roll forming machine weighs 20 tons and has a footprint of 85 feet in length. The uncoiler system weighs 3.5 tons with a footprint of 14ft x 6ft x 6ft.

Q9: Can this machine be configured for mobile use?

A: While this machine is designed for stationary high-production use, we do offer mobile configurations for certain profile types. Contact us for more details.

Q10: What type of maintenance is required for this machine?

A: Regular maintenance includes lubrication of moving parts, inspection of chain drive and gearbox, checking electrical connections, and ensuring the cutting shear operates smoothly. Preventive maintenance schedules can be provided upon request.

For inquiries and machine availability in Arizona, USA, feel free to contact us. We provide customized solutions tailored to your metal decking production needs!
