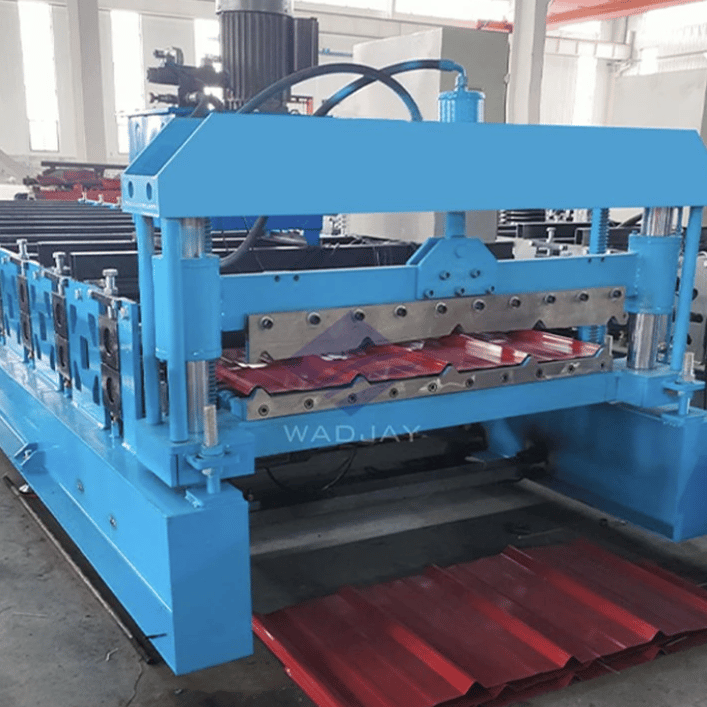

Metal Roof Roll Forming Machine in Colombia
- Condition
- New
- Supplier
- Roll Forming Machines Columbia
- Country
- Colombia
- Category
- Listing ID
- 9405
Request a Quote
To express an interest in this machine please submit the form below.
Frame structure: cantilever type
Sheet width: less than 300mm;
Coil inner diameter: φ508mm;
Expansion mode: manual expansion;
Inner diameter expansion range Phi 480-560 mm;
Coil maximum outer diameter :φ1300mm;
Carrying weight: ≤3t

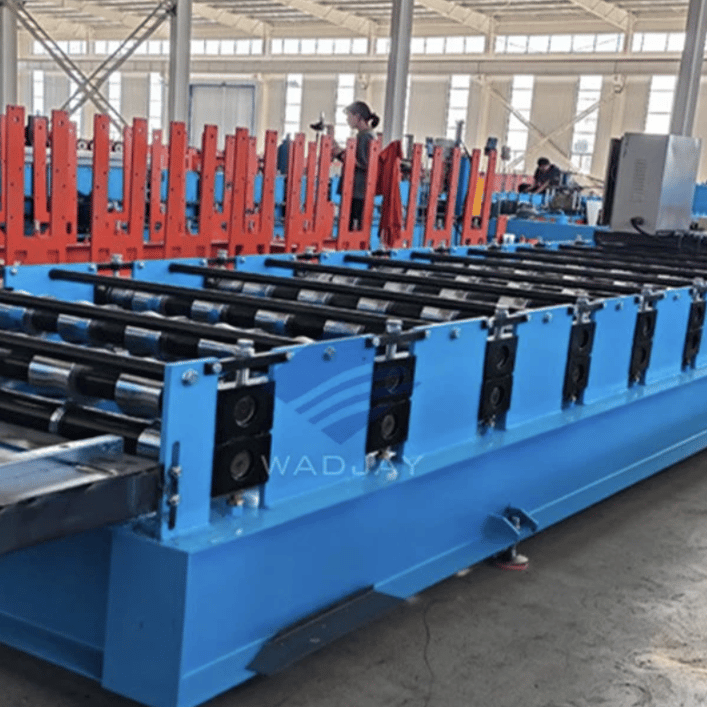

Roll Forming System
Material of the roller : High grade No.45 forged steel. Roller station : 12-14 rows. Thickness of feeding material : 0.3-0.8mm
Servo Tracking Hydraulic Shear
Guillotine system developed for trouble-free and burr-free cutting made of 60 HRC hard steel.
PLC Control System
The whole line adopts PLC control, LCD display touch screen, man-machine interface
You can set any length and quantity
| Roller Material | High grade 45# steel. Hard chrome plating, 0.05mm. |
| Main Frame | 350# steel. More stable and no shaking. |
| Middle Plate | 20mm. We use thicker plates to ensure stability of our products. |
| Forming Steps | 11-20 steps, according to the drawing. |
| Shaft Material | Φ70 mm, high grade 45# steel. Treating process: tempering- finish turning, high rigidity, hard to deform. |
| Cutting Blade Material | Cr12, hardness HRC60-62. Treating process: heat treatment- plane abrasion- wire electrode cutting. |
