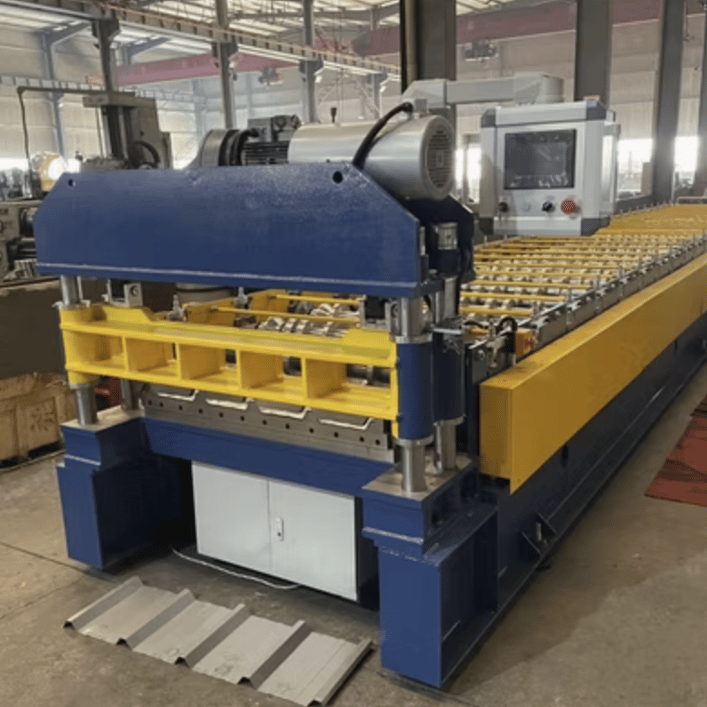

Metal Roof Roll Forming Machine in Costa Rica

A metal roof roll forming machine is an advanced industrial device designed to fabricate metal roofing panels through a continuous bending process. This machine processes flat metal sheets or coils into specific roofing profiles, popular for commercial, industrial, and residential roofing due to their durability, weather resistance, and aesthetic appeal. Roll forming ensures high precision and efficiency, making it ideal for mass production of metal roofing panels.

Key Specifications of a Metal Roof Roll Forming Machine

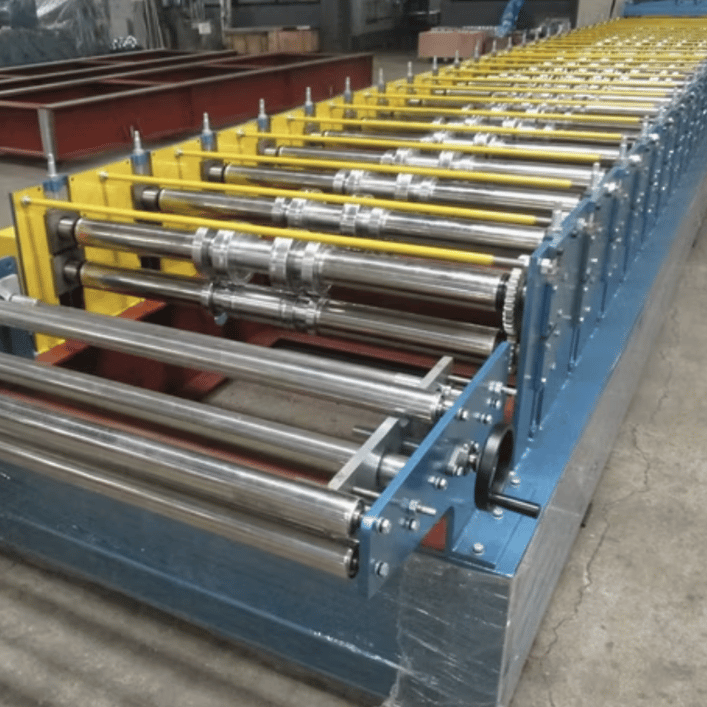

1. Roller Materials:
   • Typically made of high-grade steel (such as GCr15 or D2) to withstand continuous use without wear.
   • Chromium plating is often applied to the rollers to prevent rust and prolong life.
2. Frame Size and Construction:
   • Heavy-duty, often with a steel or cast iron frame for stability and minimal vibration.
   • Frame thickness ranges from 18 to 30 mm depending on the model and production requirements.
3. Motor Power:
   • Main motor ranges from 5 to 15 kW or higher for larger models.
   • Hydraulic motors typically around 3 to 5 kW to drive cutting mechanisms.
4. Forming Speed:
   • Generally between 8 to 15 meters per minute, although high-speed models can reach up to 30 meters per minute.
   • Speed may vary depending on the profile complexity and material thickness.
5. Profile Options:
   • Supports a wide range of roofing profiles, including trapezoidal, corrugated, standing seam, and custom profiles.
   • The machine can be adjusted or customized to produce specific roofing profiles.
6. Material Specifications:
   • Compatible with various metals such as galvanized steel, aluminum, copper, and color-coated steel.
   • Material thickness typically ranges from 0.3 to 0.8 mm for roofing applications.
7. PLC Control System:
   • Automated control with a user-friendly PLC system for programming and adjusting machine parameters.
   • Touchscreen interface for easy operation, enabling operators to adjust length, quantity, and profile settings.
8. Cutting System:
   • Hydraulic or servo motor-driven cutting system for precision cutting without material deformation.
   • Blades are usually made of Cr12 mold steel for sharpness and longevity.
9. Safety Features:
   • Equipped with safety guards, emergency stop buttons, and other safety mechanisms to protect operators.
   • Safety sensors detect obstructions or malfunctions and halt the machine immediately.
10. Dimensions and Weight:
    • Machine dimensions vary based on capacity and type but generally measure between 8 to 15 meters in length.
    • Weight ranges from 5,000 to 8,000 kg, depending on the model and construction materials.

Machine Description

The metal roof roll forming machine is designed to streamline roofing panel production with precision. Starting with a coil of metal, the machine straightens, molds, and cuts the material into panels with a specific roofing profile. The machine operates continuously, delivering consistent quality and output speed suitable for industrial applications. Advanced PLC systems enable easy customization of panel lengths and quantities, meeting various client and project requirements efficiently.

In addition to the roll-forming unit, optional accessories can enhance functionality:

• Uncoilers to hold the metal coil
• Stackers for panel stacking
• Pre-Cutters for managing coil ends
• Remote PLC Systems for off-site monitoring and adjustments

Typical Industries Using Metal Roof Roll Forming Machines

These machines are widely used in construction and manufacturing sectors:

• Residential and commercial roofing contractors
• Prefabricated building companies
• Construction material suppliers

Question and Answer Section

Q: What materials can a metal roof roll forming machine process?

A: These machines are designed for various metals, including galvanized steel, aluminum, copper, and color-coated steel, typically within a thickness range of 0.3 to 0.8 mm.

Q: How can I change the profile on my roll forming machine?

A: Some machines come with adjustable rollers, but for drastic profile changes, switching to another machine or installing an additional profile module may be required. Contact your machine manufacturer to understand compatible profiles and setup options.

Q: How long does setup and calibration take?

A: Initial setup can take several hours or a full day depending on the profile complexity, but once set, the machine is highly efficient with minimal calibration needed for each production run.

Q: Can I control the machine remotely?

A: Yes, many modern machines feature remote PLC systems that allow for off-site monitoring and adjustments, which can be very convenient for overseeing production.

Q: How often should the machine be maintained?

A: Regular maintenance is essential. General maintenance, including lubrication and alignment checks, is recommended every few months. Full servicing and inspection should be done annually to ensure optimal performance.

Q: What safety measures should be taken while operating this machine?

A: Operators should follow all safety protocols, including using provided safety guards, wearing protective gear, and maintaining an emergency stop within reach. Regular safety checks and training are also recommended.

Q: What is the production capacity of a metal roof roll forming machine?

A: The production capacity depends on the model, speed, and profile complexity. Typical machines can produce 8-15 meters of roofing panels per minute, making them highly efficient for medium to large-scale production.

Q: Can this machine produce custom roofing profiles?

A: Yes, many metal roof roll forming machines are customizable and can be adjusted or manufactured to produce unique profiles. However, this may require custom-designed rollers or additional tooling.

Q: Is it possible to integrate other machines, like punching units, with the roll forming machine?

A: Yes, some roll forming machines can integrate additional units such as punching, embossing, or notching, enhancing the panel’s features and customization options.
