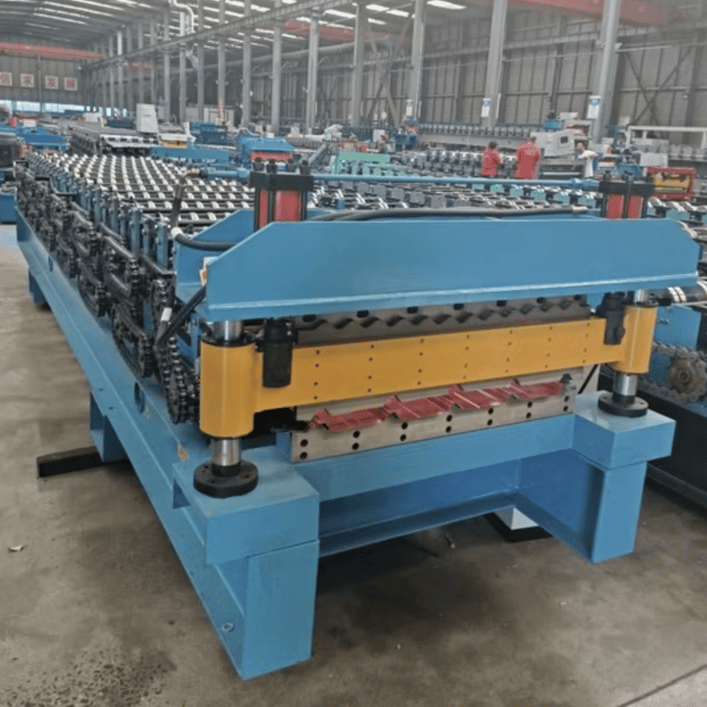

Metal Roof Roll Forming Machine Mexico
- Condition
- New
- Category
- Listing ID
- 5250
Request a Quote
To express an interest in this machine please submit the form below.
Metal roof roll forming machines play a pivotal role in the construction and roofing industries in Mexico. These machines are designed to produce high-quality metal roofing panels efficiently, meeting the growing demand for durable and aesthetic roofing solutions. With Mexico's diverse construction needs, from residential housing to large-scale industrial projects, metal roof roll forming machines provide an optimal solution for localized manufacturing.
Description of Metal Roof Roll Forming Machine
A metal roof roll forming machine is a specialized equipment designed to convert steel or aluminum coils into precise metal roof panels. The process involves feeding the metal coil into the machine, which uses a series of rollers to gradually shape it into the desired profile. This automation ensures uniformity, speed, and reduced waste, making it ideal for mass production.
Key Features:
- Versatility: Produces a variety of profiles, including standing seam, corrugated, and ribbed panels.
- Material Compatibility: Works with steel, aluminum, and galvanized sheets.
- High Efficiency: Capable of producing panels at speeds up to 30m/min.
- Precision: Ensures accurate dimensions and flawless finishes.
- Customizable: Can include punching, notching, and cutting systems tailored to project needs.
Specifications of Metal Roof Roll Forming Machines
| Feature | Details |
|---|---|
| Roller Material | High-grade chromium-coated steel rollers |
| Frame Structure | Heavy-duty steel frame for stability |
| Machine Speed | 20-30m/min |
| Material Thickness | 0.3mm to 0.8mm |
| Profile Width | Customizable, typically 600mm to 1250mm |
| Control System | PLC (Programmable Logic Controller) with touchscreen |
| Cutting System | Hydraulic or servo motor-based cutting |
| Power Requirements | 380V, 50Hz/60Hz, 3-phase |
| Weight | 8-12 tons (varies by model) |
| Safety Features | Emergency stops, guards, and safety enclosures |
Market Suitability in Mexico
- Residential Roofing: Popular for homes in urban and rural areas due to durability and aesthetic appeal.
- Industrial Projects: Used in warehouses, factories, and agricultural buildings.
- Weather Adaptability: Panels resist corrosion and are ideal for Mexico's diverse climates, from coastal areas to arid regions.
Frequently Asked Questions (FAQs)
Q1: What types of roofing profiles can this machine produce in Mexico?
A1: It can produce various profiles such as standing seam, corrugated panels, ribbed sheets, and custom profiles based on customer requirements.
Q2: What materials are compatible with the machine?
A2: The machine works well with pre-painted steel, aluminum, galvanized steel, and Galvalume sheets.
Q3: How long does it take to set up the machine?
A3: Installation and setup usually take 2-3 days, including calibration and trial runs.
Q4: Are there any specific power requirements for operation in Mexico?
A4: The machine typically requires a 3-phase 380V power supply. Custom configurations for 220V are also available.
Q5: What is the average maintenance required?
A5: Regular maintenance includes lubricating moving parts, checking the alignment of rollers, and ensuring the cutting system is sharp and functional. This is generally done monthly or after heavy usage.
Q6: Can the machine be customized for unique roofing profiles popular in Mexico?
A6: Yes, manufacturers can customize rollers and cutting dies to produce specific profiles that meet local architectural and industrial needs.
Q7: What is the expected production capacity per day?
A7: Depending on the profile and material, the machine can produce approximately 8,000-12,000 meters of roofing panels per day.
Q8: Is the machine portable for different project sites?
A8: While the machine is typically stationary, some models are designed for mobility to support on-site manufacturing.
