New 1050 H14 Stucco Embossed Aluminium Coil | China

New ZHAOYANG 1050 Stucco Embossed Aluminium Coil for Pipeline Insulation

Overview

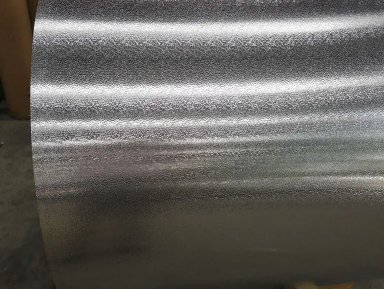

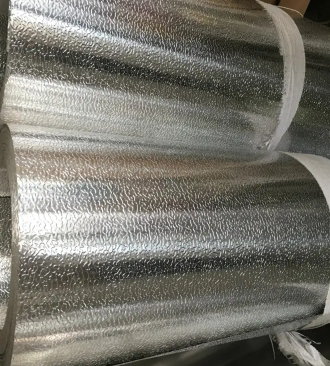

This is new ZHAOYANG alloy 1050 coil in H14 or H24 temper, with a stucco (orange peel) embossed surface. The supplier aims it at insulation jacketing on oil pipeline projects. The product is headlined at 1.2 mm thick. Coils are wound on a 300 or 505 mm core, with weights from 200 kg rolls up to 2,000 kg coils. It is made to ASTM B209 and GB/T 3880, and Jinan Zhaoyang Aluminium Industry Co., Ltd. supplies it from China.

Applications

The main use is weatherproof cladding over thermal insulation on pipelines and process equipment, where the embossed finish hides handling marks and reduces glare. The supplier also lists refrigeration and air-conditioning parts, ceilings, fireproof and cabinet boards, lighting and reflectors, and architectural and interior finishes. It suits pipeline insulation contractors, jacketing fabricators and stockists who supply embossed sheet cut to length.

Specifications

Manufacturer: ZHAOYANG (Jinan Zhaoyang Aluminium Industry Co., Ltd.)
Model: 1050-H14/H24
Supplier code: A0001-1050St
Category: Stucco embossed aluminium coil
Condition: New
Alloy: 1050 (1060, 1100 and 3003 also offered)
Temper: H14 or H24
Thickness: 1.2 mm (0.047 in) as headlined (see notes)

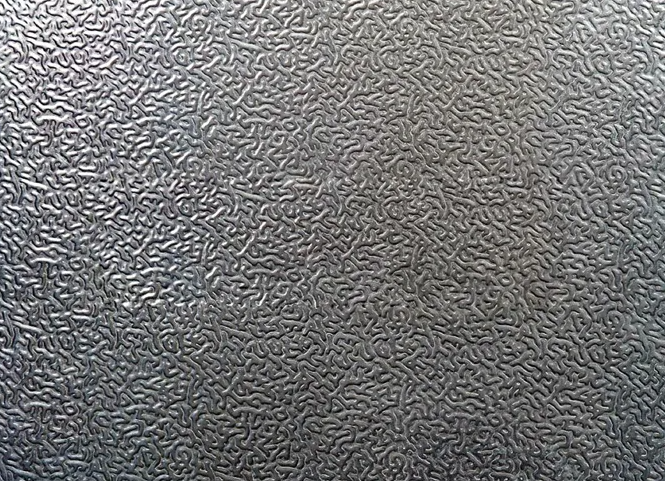

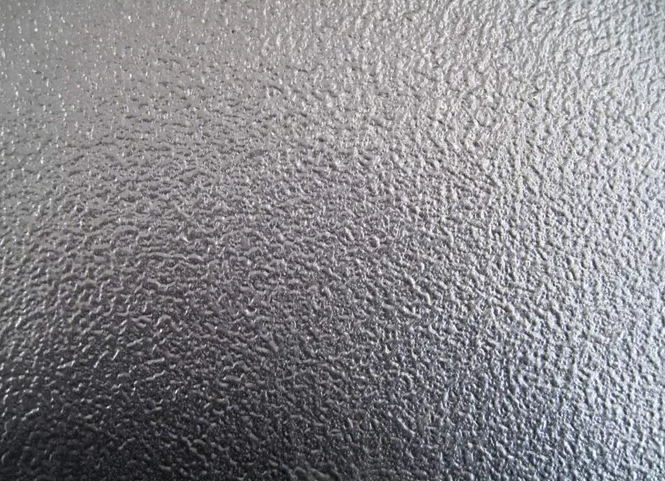

Surface: Stucco / orange peel embossed, in an “old type” and a “new type” pattern
Moisture barrier: None stated
Sheet sizes: 1000 x 2000 mm and 1220 x 2440 mm
Cut lengths: 2000, 2440 or 6000 mm, or to order
Core ID: 300 mm or 505 mm
Coil weight: 200 kg, 300 kg, 1,000 kg or 2,000 kg, or to order
Standards: ASTM B209, GB/T 3880-2006
Packing: Plastic film wrapped; custom packing on request
Location: Jinan, China
Price: On request
Listing ID: A0001-1050St

Condition and seller notes

This is new mill-produced coil. The supplier says it runs tensile, T-bend, impact and salt-spray tests and checks export packaging. Its storage advice is to keep coils film-wrapped and dry, away from rain and damp, below 45 °C, and with desiccant if possible. No minimum order, lead time, warranty or returns terms are given. Buyers should confirm the exact thickness, alloy, warranty and mill test certificates with the supplier before ordering.

FAQs

Does this embossed coil have a moisture barrier?
No barrier is listed for this product. If you need Polysurlyn or polykraft on the inner face, ask the supplier, or look at their barrier-coated coils.

What thickness is this coil?
The page headlines it as 1.2 mm 1050 coil but also gives other thickness ranges. Confirm the thickness you need when you request a quote.

What core size and coil weights are available?
Coils come on a 300 mm or 505 mm inner diameter core. Weights range from 200 kg and 300 kg rolls to 1,000 kg and 2,000 kg coils, or to order.

Which standards is it made to?
The supplier states ASTM B209 and GB/T 3880-2006.
