New 3000 Series Prepainted Aluminium Roofing Coil | China

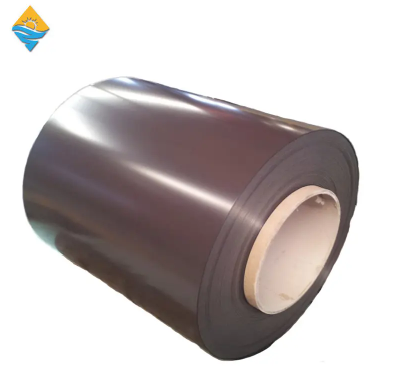

New ZHAOYANG 3000 Series Prepainted Aluminium Coil for Roofing Sheet

Overview

This new ZHAOYANG prepainted coil is offered in the 3000 series alloys 3003, 3004 and 3105, for roll forming into roofing sheet. Paint is roller-applied and oven-baked to a stated thickness of 15 to 18 µm for polyester and 25 to 28 µm for double-coat polyester or PVDF. The coil comes from 0.2 to 1.5 mm (0.008 to 0.059 in) thick and 300 to 1500 mm wide. The minimum order is 3 tonnes, and the coil comes from Jinan, China.

Applications

The coil is made for roofing lines producing corrugated, trapezoidal and standing seam sheet, plus the matching gutters, flashings and canopies. 3000 series alloys add manganese, which makes them stronger than pure 1000 series aluminium. They are a common choice for roof sheet that has to span and take foot traffic. The supplier also lists rolling shutter and garage doors, ceilings, and composite and honeycomb panels. It suits roofing manufacturers and roll forming contractors.

Specifications

Manufacturer: ZHAOYANG (Jinan Zhaoyang Aluminium Industry Co., Ltd.)
Category: Prepainted (colour coated) aluminium roofing coil
Condition: New
Alloy: 3003, 3004, 3105 (1050, 1060, 1100, 5052 and 8011 also offered)
Temper: H14, H24, H32, H34, O, H26, H18, H111, H112
Thickness: 0.2 to 1.5 mm (0.008 to 0.059 in)
Thickness tolerance: ±0.02 mm
Width: 300, 500, 600, 800, 1000, 1200, 1220, 1250, 1300, 1500 mm
Weight tolerance: ±10%
Paint thickness: Polyester 15 to 18 µm; double-coat polyester 25 to 28 µm; PVDF 25 to 28 µm
Application method: Roller coated and oven baked
Finishes: Solid colours, wood grain, stone grain
Fire rating (stated): Not lower than B1 (Chinese national classification)
Standards: ASTM B209, GB/T 3880-2006
Coating warranty (stated): Polyester 10 years; PVDF over 20 years
Minimum order: 3 tonnes (3,000 kg)
Location: Jinan, China
Price: On request
Listing ID: 97287746

Condition and seller notes

This is new mill-painted coil. The supplier says the coil cuts and forms without distortion, and that the paint holds its gloss and resists salt, acid, alkali and rain. It quotes coating warranties of 10 years for polyester and more than 20 years for PVDF, but gives no warranty terms and doesn’t say whether the paint thicknesses apply to the top face only or include the back coat. Buyers should confirm the top and back coat build, the primer, a colour card and written warranty terms before ordering.

FAQs

How thick is the paint?
The supplier states 15 to 18 µm for standard polyester, and 25 to 28 µm for double-coat polyester or PVDF. Check whether these figures are for the top face only, and ask for the back coat thickness.

Why choose a 3000 series alloy for roofing?
3003, 3004 and 3105 contain manganese, which makes them stronger than pure 1000 series aluminium while still forming well. This makes them a standard choice for roll-formed roof and wall sheet.

Which coating should I choose for a roof?
PVDF holds its colour and gloss longest outdoors, and the supplier quotes more than 20 years for it. Polyester is lower-cost and quoted at 10 years. Double-coat polyester sits between the two, with a thicker paint film.

What is the minimum order?
The minimum order is 3 tonnes (3,000 kg). Coil can be supplied in widths from 300 to 1500 mm to suit your roll former.
