New AA1100 1050A 1060 Diamond Aluminum Coil | China

New ZHAOYANG AA1100 / 1050A / 1060 Diamond Pattern Aluminum Coil

Overview

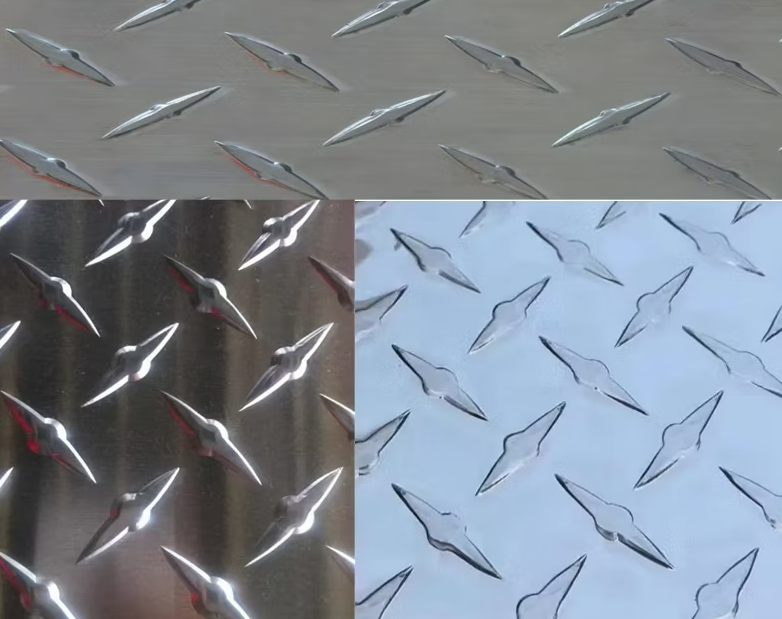

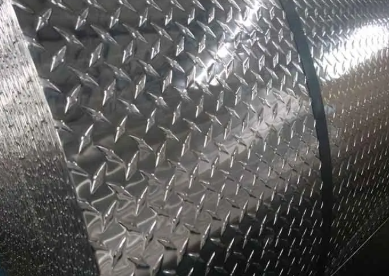

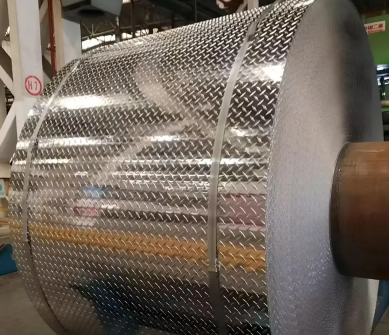

This new ZHAOYANG coil carries a raised diamond (pointer) pattern, which is rolled in after the sheet is made. It comes in pure-aluminum grades AA1100, 1050A and 1060, from 0.8 to 7 mm (0.031 to 0.276 in) thick. Standard widths are 1000, 1220 and 1250 mm. It is made to ASTM B209 and GB/T 3880. The minimum order is 6 tonnes, and production takes 15 to 20 days from Jinan, China.

Applications

The raised pattern gives grip underfoot, so this coil is used for anti-slip flooring, steps, walkways and platforms around equipment. The supplier also lists transport vehicles, shipbuilding, machinery, building work and decorative trim. Because it is a soft, pure grade, it suits uses where pattern quality and corrosion resistance matter more than strength. Typical buyers are vehicle body builders, marine fit-out shops, fabricators and metal stockholders.

Specifications

Manufacturer: ZHAOYANG (Jinan Zhaoyang Aluminium Industry Co., Ltd.)
Category: Diamond pattern (tread) aluminum coil
Condition: New
Alloy: AA1100, 1050A, 1060 (other grades offered, see notes)
Temper: H14, H24, H18, H26 and others on request
Thickness: 0.8 to 7 mm (0.031 to 0.276 in)
Width: 1000, 1220, 1250 mm
Cut lengths: 2000, 2440 or 6000 mm, or to order
Pattern: Diamond / pointer, raised
Standards: ASTM B209, GB/T 3880-2006
Minimum order: 6 tonnes (6,000 kg)
Production time: 15 to 20 days

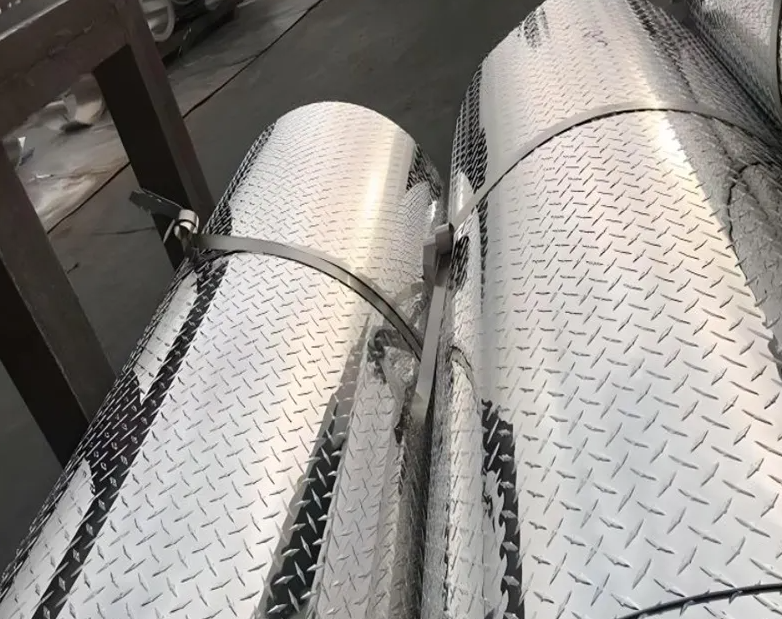

Packing: Non-fumigation pallet
Payment terms: T/T, L/C
Location: Jinan, China
Price: On request
Listing ID: 94577746

Condition and seller notes

This is new coil, produced to order in 15 to 20 days and shipped on non-fumigation pallets. The supplier accepts payment by T/T or letter of credit. It says the coil resists weather and corrosion and claims a service life of over 20 years, but gives no warranty or returns terms. The supplier also says it runs in-house tensile, T-bend and salt-spray tests. Buyers should confirm warranty terms, mill test certificates and pattern height before ordering.

FAQs

What thicknesses and widths does this diamond coil come in?
Thickness runs from 0.8 to 7 mm. Standard widths are 1000, 1220 and 1250 mm, and sheets can be cut to 2000, 2440 or 6000 mm lengths.

What is the minimum order and production time?
The minimum order is 6 tonnes, and production takes 15 to 20 days.

What payment terms does the supplier accept?
The supplier accepts T/T (bank transfer) and L/C (letter of credit).

Can I get it in a stronger alloy?
Yes, according to the supplier, which also offers 3003, 5052, 5754 and 6061, among others. AA1100, 1050A and 1060 are softer pure grades, so ask for a quote in a stronger alloy if the coil will carry structural loads.
