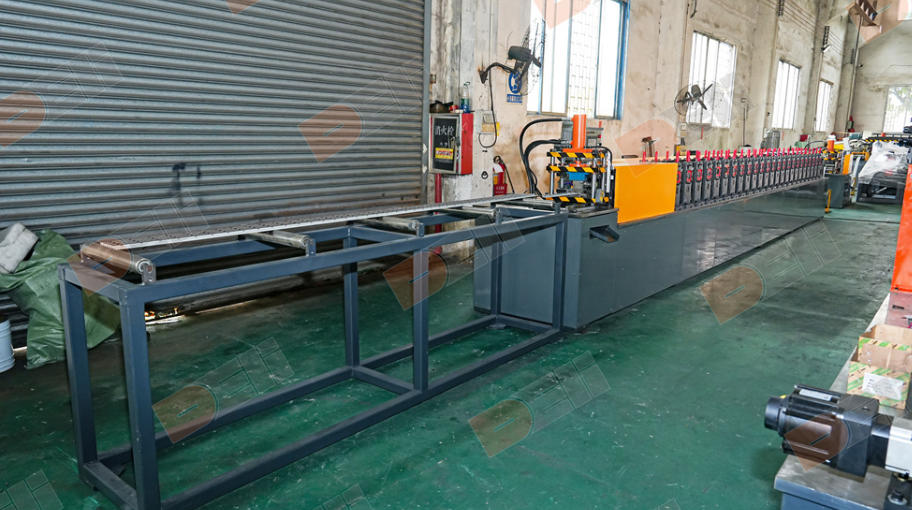

New Deli Brick Slip Facade Rail Channel Roll Forming Machine

Overview

This new production line from Deli Machinery makes support rails for brick slip facade cladding systems. It forms a 39 x 15 mm (1.54 x 0.59 in) rail profile from pre-painted galvanized steel (PPGI) 0.55 to 0.70 mm thick. The line runs at 5 to 9 m/min (16 to 30 ft/min). It punches, forms and cuts in one pass. The profile size can be changed to suit the buyer. The manufacturer is in Foshan, Guangdong, China.

Applications

The line produces the horizontal support rails that hold brick slips on a building facade. Because the steel is painted before forming, the finished rails do not need coating after production. The line suits manufacturers and suppliers of brick slip cladding systems, facade system companies and building product makers who want to produce their own rails. The manufacturer can adapt the profile to other rail designs.

Specifications

Manufacturer: Foshan Deli Machinery Equipment Co., Ltd.
Category: Roll forming machine (brick slip support rail)
Condition: New
Profile: Brick slip support rail, 39 x 15 mm (1.54 x 0.59 in), customisable
Material: PPGI (pre-painted galvanized steel)
Material thickness: 0.55–0.70 mm (0.022–0.028 in)
Line speed: 5–9 m/min (16–30 ft/min)
Punching: Pre-punching before forming
Cut type: Cutting after forming (shear type not stated)
Profile accuracy: ±0.3 mm (±0.012 in)
Length accuracy: 0.5 mm (0.020 in)
Line layout: Decoiler, leveller, pre-punching, roll forming, straightener, cutting, run-out table
Location: Foshan, Guangdong, China

Condition and seller notes

The manufacturer supplies this line as a complete system, from decoiling through to the run-out table. The source does not give a year, model number or stock status, so the line may be built to order. Using pre-painted coil means the rails come off the line ready to use, with no painting step. The source does not mention a warranty or returns policy. Please use the MachineMatcher enquiry form to confirm warranty, build time and the full specification.

FAQs

Can I inspect this Deli rail channel line before buying?
The source does not say whether an inspection or a video is available. Please ask through the MachineMatcher enquiry form, and we will check with the seller.

Can it be shipped from China?
The source does not give shipping details. Please send an enquiry through the MachineMatcher form to agree on loading, packing and delivery terms.

What does this line produce, and what material does it use?
It produces 39 x 15 mm support rails for brick slip cladding systems. It uses pre-painted galvanized steel (PPGI) from 0.55 to 0.70 mm thick. The profile size can be customised.

Does the line include punching and cutting?
Yes. The line pre-punches the strip before forming, then cuts the rails to length after forming and straightening. All steps happen in one continuous process.
