New Deli Ceiling LED Dust-Proof Bracket Roll Forming Machine

Overview

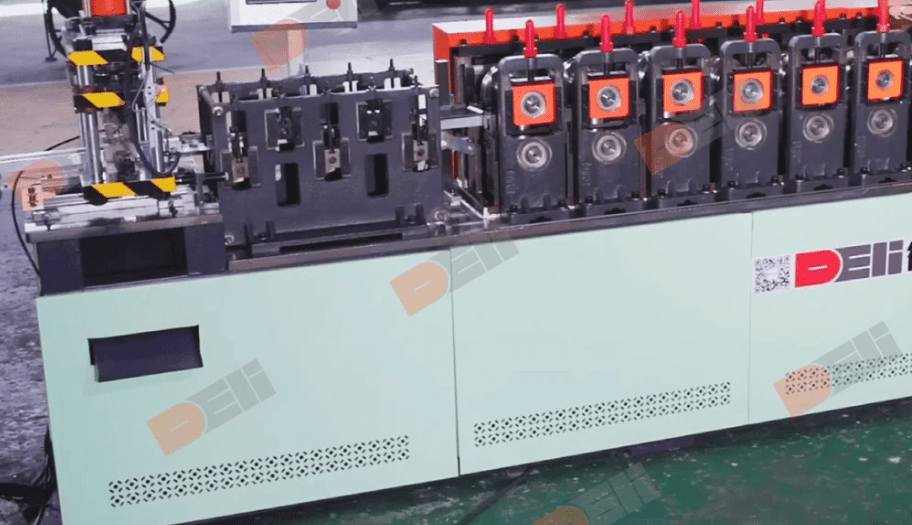

This new roll forming line from Deli Machinery makes dust-proof brackets for ceiling-mounted LED lights. It forms a 60 x 30 mm (2.36 x 1.18 in) profile from cold-rolled steel 0.4 to 0.5 mm thick, using 16 forming rollers. The line runs at 4 to 6 m/min (13 to 20 ft/min). It pre-punches the strip, cuts each bracket to a fixed length, then bends it a second time. A product video is available. The manufacturer is in Foshan, Guangdong, China.

Applications

The line produces dust-proof brackets that fit over ceiling LED light fittings. These brackets are used in commercial, industrial and residential buildings. The line suits lighting fixture makers, ceiling system manufacturers and building material producers. The profile size can be customised, but width and height are not adjustable on the machine itself, so one line makes one bracket size.

Specifications

Manufacturer: Foshan Deli Machinery Equipment Co., Ltd.
Category: Roll forming machine (LED dust-proof bracket)
Condition: New
Profile: Ceiling LED dust-proof bracket, 60 x 30 mm (2.36 x 1.18 in), customisable at order
Material: CR steel (cold-rolled steel)
Material thickness: 0.4–0.5 mm (0.016–0.020 in)
Forming rollers: 16
Line speed: 4–6 m/min (13–20 ft/min)
Width adjustable: No
Height adjustable: No
Punching: Pre-punching before forming
Cut type: Fixed-length cutting
Profile accuracy: ±0.3 mm (±0.012 in)
Line layout: Decoiler and leveller, feeding and pre-punching, roll forming, fixed-length cutting, secondary bending, discharge
Location: Foshan, Guangdong, China

Condition and seller notes

The manufacturer supplies this line complete, from the decoiler through to the discharge table. A secondary bending station after the cut-off finishes each bracket on the line, so no separate bending step is needed. The roller set is fixed to one profile size. The source does not give a year, model number or stock status, so the line may be built to order. The source does not mention a warranty or returns policy. Please use the MachineMatcher enquiry form to confirm warranty, build time and the full specification.

FAQs

Can I see this Deli bracket line working before buying?
Yes, the manufacturer has a product video of the line. Please ask for the video, or for an inspection, through the MachineMatcher enquiry form.

Can it be shipped from China?
The source does not give shipping details. Please send an enquiry through the MachineMatcher form to agree on loading, packing and delivery terms.

What does this line produce, and what material does it use?
It produces 60 x 30 mm dust-proof brackets for ceiling LED lights. It uses cold-rolled steel from 0.4 to 0.5 mm thick. A different profile size can be ordered, but the machine cannot change width or height after it is built.

Interested in this Deli LED dust-proof bracket roll forming machine? Send an enquiry through the MachineMatcher form on this page for price, build time, the product video and shipping.
