New Deli Metal Shed Side Panel Roll Former | China

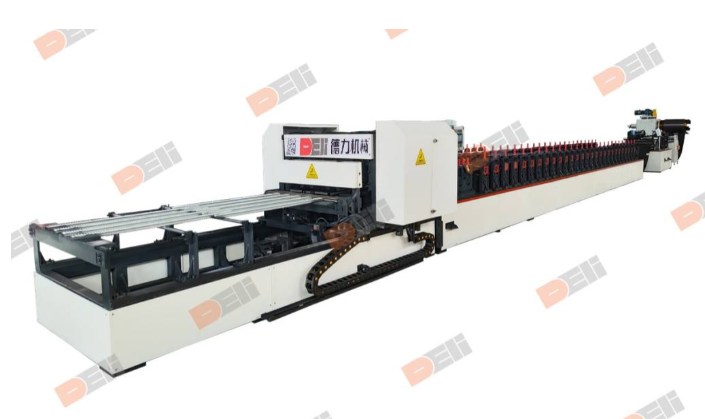

New Deli Outdoor Awning Metal Shed Side Panel Roll Forming Machine

Overview

This new roll forming line from Deli Machinery makes side panels for outdoor awnings and metal sheds. It forms a 653 x 21 mm (25.7 x 0.83 in) panel from cold-rolled steel 0.7 to 0.8 mm thick, using 28 forming rollers. The line runs at 4 to 6 m/min (13 to 20 ft/min). After cutting, servo units bend both ends of each panel on the line. A product video is available. The manufacturer is in Foshan, Guangdong, China.

Applications

The line produces finished side panels for outdoor awnings, garden sheds and similar metal storage buildings. Both panel ends are bent on the line, so the panels come off ready for assembly with no manual bending. The line suits shed and awning manufacturers, outdoor storage producers and sheet metal fabricators who want to automate panel production. The panel size can be changed at order, but the machine is built for one fixed width and height.

Specifications

Manufacturer: Foshan Deli Machinery Equipment Co., Ltd.
Category: Roll forming machine (metal shed side panel)
Condition: New
Profile: Outdoor awning and metal shed side panel, 653 x 21 mm (25.7 x 0.83 in), customisable at order
Material: CR steel (cold-rolled steel)
Material thickness: 0.7–0.8 mm (0.028–0.031 in)
Forming rollers: 28
Line speed: 4–6 m/min (13–20 ft/min)
Width adjustable: No
Height adjustable: No
Punching: Pre-punching before forming
End bending: Servo bending at both ends
Profile accuracy: ±0.3 mm (±0.012 in)
Line layout: Decoiler, leveller, pre-punching, roll forming, cutting, servo end bending, discharge
Location: Foshan, Guangdong, China

Condition and seller notes

The manufacturer supplies this as a complete line, from the decoiler to the discharge table. The servo end-bending station replaces the separate bending step that panels of this type often need. The roller set is built for one panel size. The source does not give a year, model number or stock status, so the line may be built to order. The source does not mention a warranty or returns policy. Please use the MachineMatcher enquiry form to confirm warranty, build time and the full specification.

FAQs

Can I see this Deli shed panel line working before buying?
Yes, the manufacturer has a product video of the line. Please ask for the video, or for an inspection, through the MachineMatcher enquiry form.

Can it be shipped from China?
The source does not give shipping details. Please send an enquiry through the MachineMatcher form to agree on loading, packing and delivery terms.

What does this line produce, and what material does it use?
It produces 653 x 21 mm side panels for outdoor awnings and metal sheds, with both ends bent on the line. It uses cold-rolled steel from 0.7 to 0.8 mm thick. A different panel size can be ordered, but width and height are fixed once the machine is built.
