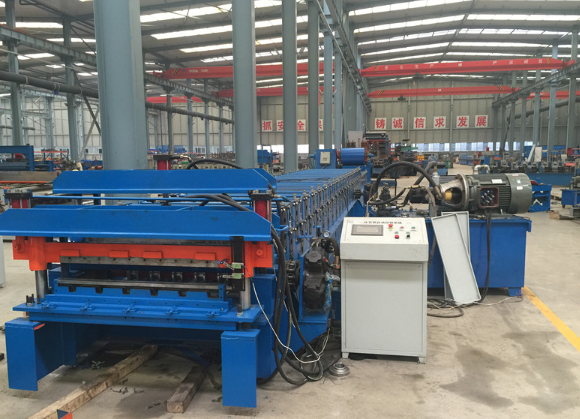

New Double Layer Roof Sheet Roll Forming Machine

Overview

This new double layer roll forming machine makes two different roof sheet profiles on one compact machine. It handles colour-coated steel, galvanized steel and aluminium from 0.3 to 1 mm thick, at 25 to 30 m/min (82 to 98 ft/min). A Mitsubishi PLC with a frequency converter controls the line, and a hydraulic cutter cuts the sheets to length. The machine is available in Saudi Arabia, with a 12-month warranty and 30-day delivery.

Applications

The machine produces two types of roof sheet on two forming levels, so one machine can supply two profiles. It works with colour-coated steel, galvanized steel and aluminium coil. Because both profiles share one frame, the machine needs less floor space than two separate lines. It suits roofing sheet producers, building material suppliers and contractors with a small factory or limited site area.

Specifications

Category: Roll forming machine (double layer roof sheet)
Condition: New
Profiles: Two roof sheet profiles, one on each layer (profile drawings not supplied)
Materials: Colour-coated steel, galvanized steel, aluminium
Material thickness: 0.3–1 mm (0.012–0.039 in)
Forming stations: 11–18 rows, depending on the profile drawing
Roller material: 45# steel, chrome plated
Shaft: 75 mm (2.95 in) diameter, 40Cr steel
Forming speed: 25–30 m/min (82–98 ft/min), not including cutting time
Drive: Chain transmission
Main motor power: 5.5–7.5 kW (7.4–10 hp)
Cut type: Hydraulic cutting
Cutting blade: Cr12 mould steel, quenched
Hydraulic station power: 5.5 kW (7.4 hp)
Controller: Mitsubishi PLC with frequency converter
Voltage / frequency: 380 V, 3-phase, 50 Hz (other voltages on request)
Uncoiler capacity: 5 tons (11,000 lb), can be increased to 10 tons (22,000 lb)
Line layout: Uncoiler, feeding guide, roll forming machine, PLC control system, hydraulic cutting, output table
Location: Saudi Arabia
Delivery time: 30 days

Condition and seller notes

This is a new machine, supplied with a 12-month warranty and a stated delivery time of 30 days. Several details depend on the buyer’s profile drawings, including the number of forming stations and the main motor size. The uncoiler can be upgraded from 5 to 10 tons, and the voltage can be changed to suit the buyer’s site. The source does not mention a returns policy. Please use the MachineMatcher enquiry form to confirm the exact profiles and warranty terms.

FAQs

Can I inspect this roof sheet machine before buying?
The source does not say whether an inspection or a video is available. Please ask through the MachineMatcher enquiry form, and we will check with the seller.

How long does delivery take?
The stated delivery time is 30 days. Please confirm the delivery terms and shipping to your site in Saudi Arabia through the MachineMatcher enquiry form.

What can this machine produce, and what materials can it handle?
It produces two roof sheet profiles on two forming layers. It handles colour-coated steel, galvanized steel and aluminium from 0.3 to 1 mm thick. The exact profiles follow the buyer’s drawings.

Does it come with a warranty?
Yes. The machine comes with a 12-month warranty. Please confirm what the warranty covers through the MachineMatcher enquiry form.
