New Mill Finish Aluminum Coil with Blue PVC Film | China

New ZHAOYANG Cold Rolled Mill Finish Aluminum Coil with Blue PVC Film

Overview

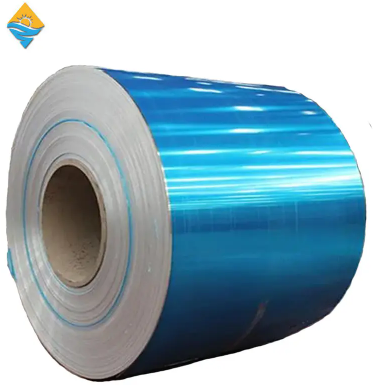

This new ZHAOYANG coil is cold rolled with a plain mill finish and covered with a blue PVC film that protects the surface in transit and during fabrication. It is offered in alloys from 1050 to 5754, from 0.2 to 1.5 mm (0.008 to 0.059 in) thick. Coil weights range from small 50 kg rolls up to 3-tonne coils. It is made to ASTM B209 and GB/T 3880 by Jinan Zhaoyang Aluminium Industry Co., Ltd. in China.

Applications

The coil is a general-purpose stock for fabricators who need clean, unmarked sheet. The PVC film keeps the surface free of scratches through slitting, punching and bending, and is peeled off after installation. The supplier links its 3000 series alloys to air-conditioner and refrigerator parts and vehicle floors. The small coil sizes suit workshops, sign makers and stockists that can’t handle full mill coils, while larger coils suit slitting and roll forming lines.

Specifications

Manufacturer: ZHAOYANG (Jinan Zhaoyang Aluminium Industry Co., Ltd.)
Category: Mill finish aluminum coil with PVC protective film
Condition: New
Process: Cold rolled
Alloy: 1050, 1060, 1100, 3003, 3004, 3105, 5052, 5754, 5086
Thickness: 0.2 to 1.5 mm (0.008 to 0.059 in)
Surface: Mill finish
Protective film: Blue PVC
Coil weight: 50, 100, 180, 200, 300, 500, 1,000, 2,000 or 3,000 kg
Standards: ASTM B209, GB/T 3880-2006
Location: Jinan, China
Price: On request
Listing ID: 97367746

Condition and seller notes

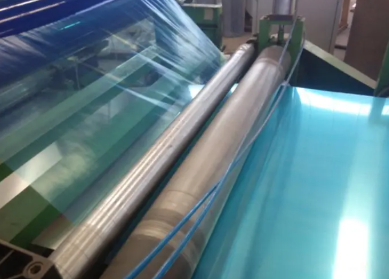

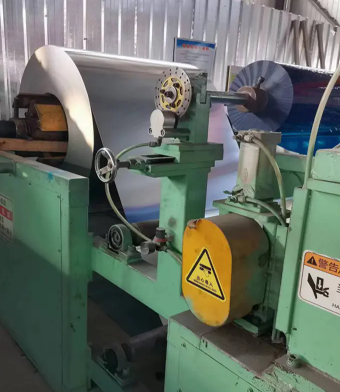

This is new cold rolled coil. The supplier describes its process as casting from ingot, then rolling, annealing, edge trimming, cutting and recoiling. It also says it tests tensile strength and packaging in-house. The page shows an ISO 9001 certificate image but no certificate details. It gives no width, temper, minimum order, lead time, warranty or film specification, so buyers should confirm all of these before ordering.

FAQs

What is the blue PVC film for?
It is a temporary protective layer that keeps the mill finish free of scratches and marks during shipping, handling and fabrication. Peel it off after installation. Ask the supplier how thick the film is, which side it is on, and how long it can stay on outdoors.

What coil sizes are available?
Coils come in weights from 50 kg up to 3,000 kg, so you can order small rolls for workshop use or full coils for production lines.

Which alloys can I order?
1050, 1060, 1100, 3003, 3004, 3105, 5052, 5754 and 5086. The 5000 series alloys are stronger and suit marine or structural use, while 1000 and 3000 series are easier to form.

What widths and tempers are available?
The page doesn’t say. Give your required width and temper when you ask for a quote.
