New PE/PVDF Pre-Painted Aluminum Coil for Roofing | China

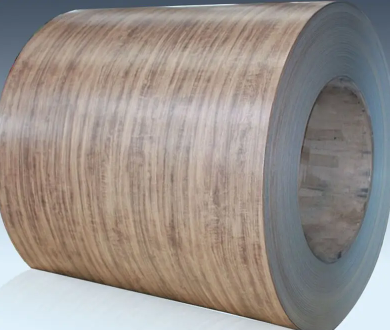

New ZHAOYANG Pre-Painted Color Coated Aluminum Coil for Roofing Sheet

Overview

This new ZHAOYANG aluminum coil is roller-coated and baked with either polyester (PE) or PVDF (fluorocarbon) paint, ready for roll forming into roofing sheet. It comes from 0.2 to 1.5 mm (0.008 to 0.059 in) thick, held to ±0.02 mm, in widths from 300 to 1500 mm. Wood and stone grain finishes are also offered. The supplier quotes a 10-year coating warranty for PE and more than 20 years for PVDF. The minimum order is 3 tonnes, from Jinan, China.

Applications

The coil is mainly fed into roll formers to make roof and wall sheet, gutters, canopies, and rolling shutter and garage doors. The supplier also lists aluminium composite and honeycomb panels, ceilings, electrical cabinets, lighting, furniture and air-conditioning ducts. Narrow widths from 300 mm suit gutter and flashing lines, and wider coil suits full roofing profiles. It is aimed at roofing manufacturers, roll forming shops and building product makers.

Specifications

Manufacturer: ZHAOYANG (Jinan Zhaoyang Aluminium Industry Co., Ltd.)
Category: Pre-painted (colour coated) aluminum coil
Condition: New
Alloy: 1050, 1060, 1100, 3003, 3004, 3105, 5052, 8011
Temper: H14, H24, H32, H34, O, H26, H18, H111, H112
Thickness: 0.2 to 1.5 mm (0.008 to 0.059 in)
Thickness tolerance: ±0.02 mm
Width: 300, 500, 600, 800, 1000, 1200, 1220, 1250, 1300, 1500 mm
Weight tolerance: ±10%
Coating: PE (polyester) or PVDF (fluorocarbon), roller-coated and baked
Finishes: Solid colours, wood grain, stone grain
Fire rating (stated): B1 (Chinese national classification)
Standards: ASTM B209, GB/T 3880-2006
Coating warranty (stated): PE 10 years; PVDF over 20 years
Minimum order: 3 tonnes (3,000 kg)
Location: Jinan, China
Price: On request
Listing ID: 90867746

Condition and seller notes

This is new coil from the manufacturer. The supplier says the coil stays flat with no deformation after shearing. It also says the paint keeps its gloss and resists salt, acid, alkali and rain. The coating warranty is quoted as 10 years for PE and more than 20 years for PVDF, but the page doesn’t say what the warranty covers. Buyers should get the warranty terms in writing, together with paint system details and a colour card, before ordering.

FAQs

What is the difference between PE and PVDF coating?
PE (polyester) is the standard, lower-cost paint, and the supplier backs it with a 10-year coating warranty. PVDF (fluorocarbon) holds its colour and gloss better outdoors, and the supplier quotes more than 20 years.

What thicknesses and widths are available?
Thickness runs from 0.2 to 1.5 mm, held to ±0.02 mm. Widths range from 300 to 1500 mm, in ten standard sizes.

Which colours can I order?
The page doesn’t list RAL codes or a colour card, but it mentions solid colours plus wood and stone grain finishes. Ask the supplier for its colour card or quote your RAL code.

What is the minimum order?
The minimum order is 3 tonnes (3,000 kg).
