New Roof Panel Roll Forming Machine 0.3-1 mm | Egypt

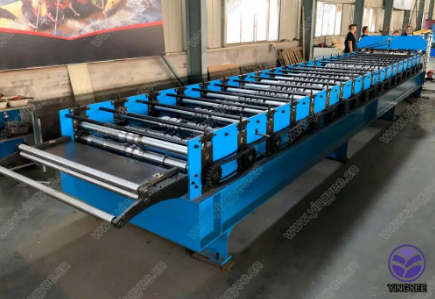

New Roof Panel Roll Forming Machine

Overview

This new roll forming machine produces metal roof panels for buyers in Egypt. It forms coil from 0.3 to 1 mm (0.012 to 0.039 in) thick in colour-coated steel, galvanized steel or aluminium. Forming speed is 25 to 30 m/min (82 to 98 ft/min). A chain drive powers the rollers, a Mitsubishi PLC and converter run the line, and a hydraulic cutter cuts each panel. Delivery takes 30 days, with a 12-month warranty.

Applications

The machine makes profiled roof panels for factories, warehouses, farm buildings, houses and other covered structures. It can run pre-painted coil for finished roofing, or galvanized and aluminium coil for plain panels. The roller design follows the buyer’s profile drawing, so it can be made to match a local panel standard. It suits roofing sheet producers, steel building suppliers and contractors who want to make their own panels.

Specifications

Category: Roll forming machine (roof panel)
Condition: New
Profile: Roof panel, made to the buyer’s drawing
Materials: Colour-coated steel, galvanized steel, aluminium
Material thickness: 0.3–1 mm (0.012–0.039 in)
Forming stations: 11–18, according to the profile drawing
Rollers: 45# steel, chrome plated
Shafts: 40Cr steel, 75 mm (2.95 in) diameter
Forming speed: 25–30 m/min (82–98 ft/min), cutting time not included
Drive: Chain transmission
Main motor: 5.5–7.5 kW (7.4–10 hp)
Cutting: Hydraulic
Hydraulic station: 5.5 kW (7.4 hp)
Blade: Cr12 mould steel, quench hardened
Controller: Mitsubishi PLC and frequency converter
Voltage / frequency: 380 V, 3-phase, 50 Hz as standard; other voltages to order
Uncoiler: 5 tons (11,000 lb) maximum, upgradable to 10 tons (22,000 lb)
Location: Egypt
Delivery time: 30 days

Condition and seller notes

The machine is new and is built to the buyer’s roof panel drawing. The number of forming stations and the main motor size are set by that drawing. Buyers can order a 10-ton uncoiler instead of the standard 5-ton unit, and can specify a voltage to suit their factory supply. The seller gives a 12-month warranty and a 30-day delivery time. The source does not mention a returns policy. Please confirm the profile, warranty cover and delivery terms through the MachineMatcher enquiry form.

FAQs

Can this roof panel machine be made to my profile?
Yes. The roller tooling follows the buyer’s drawing, and the number of forming stations (11 to 18) depends on that profile. Send your drawing through the MachineMatcher enquiry form.

How long is delivery to Egypt?
The stated delivery time is 30 days. Please confirm the shipping and installation terms through the MachineMatcher enquiry form.

Which coil materials and thicknesses can it run?
It runs colour-coated steel, galvanized steel and aluminium from 0.3 to 1 mm thick.

Is there a warranty?
Yes, the machine has a 12-month warranty. Please ask through the MachineMatcher enquiry form what the warranty covers.
