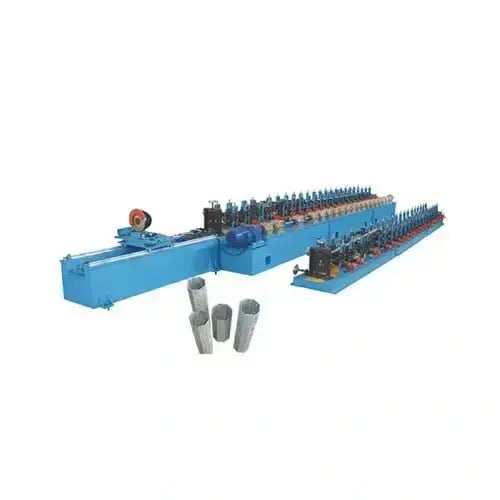

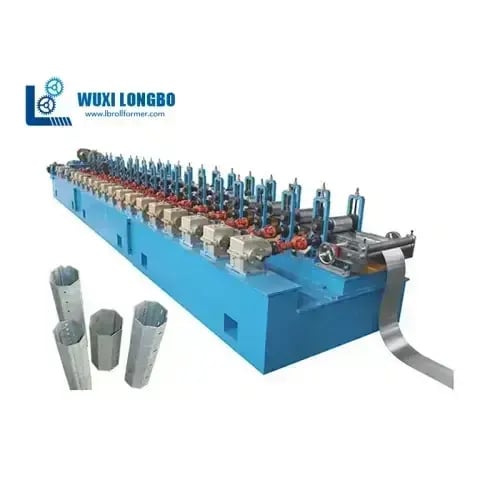

Octagonal Tube Series Forming Machine in Wuxi, China

TECHNICAL PARAMETER

1、Running material: Galvanized steel 0.45mm~0.6mm for 40mm tube ; 0.6mm~0.8mm for 60mm tube ; 0.8~1.2mm for 70mm tube

2、Forming speed: 6-10m/min (Punching is included)

3、Forming stands: 20

4、Roller material: CR15、HRC 58~60 degree. Roller diameter φ120、Maximal roller diameter:φ200

5、Material of shaft: #45 steel, china standard

6、Transmission system: Chain or gear box. Optional

7、Motor power: 7.5KW

8、Cut-off system: Flying saw cutting system

9、Material of molding reamer: Punch holes; Material of cut :Cr12Mov；Quench: HRC58-62.feeding speed is 6—10m／min Mechanical press machine: 25 tons capacity.

10、Fly saw cutting motor power : 4 KW

11、Control system: Touch screen is brand of Delta；Encoder is Omron brand; the Inverter is the Delta brand; others low voltage electric components are Schneider brands Germany.

12. Overall Dimension: 16000mmX1000mmX900mm

13. Total weight: 12 ton approximately
