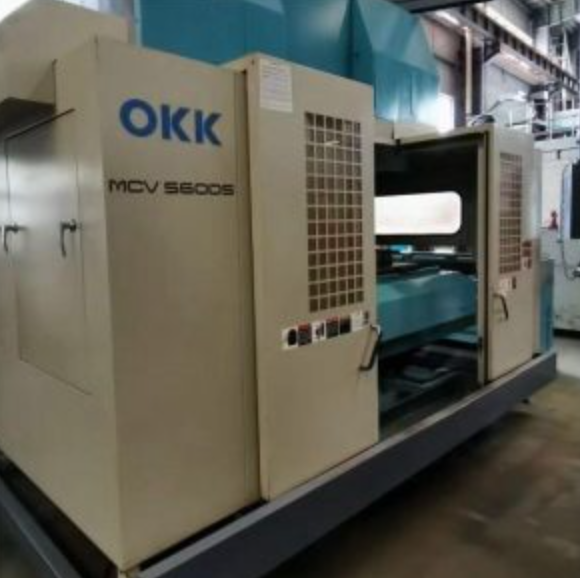

OKK MCV-560DS CNC Machining Center

OKK MCV-560DS CNC Machining Center – High-Precision 4-Axis Performance for Demanding Applications

The OKK MCV-560DS CNC Machining Center is a top-tier horizontal machining solution engineered for high-performance precision work in demanding industries such as aerospace, automotive, defense, mold and die making, and heavy equipment manufacturing. Known for its robust construction, advanced control capabilities, and reliable performance under continuous operation, this machine is designed to increase productivity while maintaining exceptional accuracy.

With a blend of speed, flexibility, and durability, the MCV-560DS is a strong choice for manufacturers aiming to meet tight tolerances, optimize cycle times, and achieve maximum output. Whether for prototyping or mass production, this CNC machining center delivers consistent results on a wide range of materials and complex geometries.

Construction and Design

At the heart of the OKK MCV-560DS lies a rigid, robust frame structure built to minimize thermal deformation and maintain structural stability throughout long machining cycles. This is crucial for maintaining repeatability and dimensional accuracy, even during heavy-duty cutting operations or extended production runs.

The machine’s symmetrical design further enhances performance by balancing heat distribution and maintaining spindle alignment. This geometry is especially beneficial for maintaining consistent tolerances, especially in temperature-sensitive materials and components.

Key Design Features

• Heavy-duty cast iron construction for vibration dampening
• Symmetrical column structure for thermal stability
• Compact footprint with maximum workspace efficiency
• Reinforced base and column for increased rigidity

High-Speed, High-Performance Spindle

The OKK MCV-560DS is equipped with a high-speed spindle capable of reaching speeds up to 12,000 RPM. This enables a wide range of machining tasks, from high-speed milling of aluminum to high-torque operations on tougher metals like steel and titanium.

Driven by a powerful, durable spindle motor, the system offers optimal torque and acceleration, ensuring fast chip removal and improved surface finish across different materials.

Spindle Highlights

• Max spindle speed: 12,000 RPM
• Taper: CAT40 or equivalent
• Precision bearings and spindle cooling system
• Ideal for a wide range of cutting tools and strategies

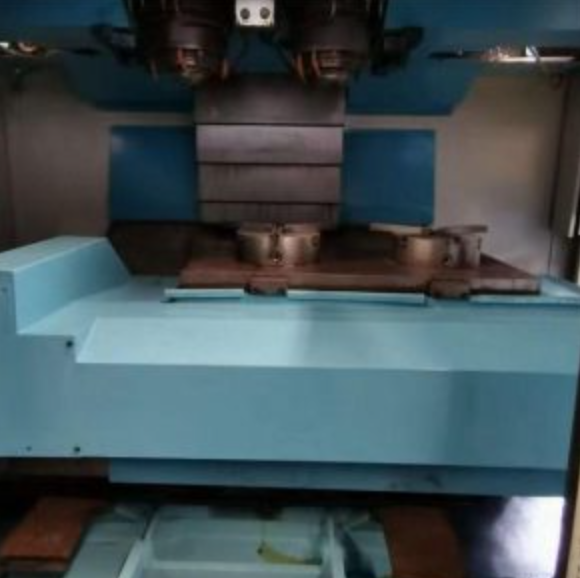

Advanced Table and Axis Configuration

The MCV-560DS features a rotating pallet table for increased productivity and more flexible work handling. This large, rotary-type table allows for multi-face machining without the need for manual repositioning, saving both time and labor.

With full 4-axis capabilities, the machine supports complex geometries, contouring, and simultaneous machining from multiple angles. Its axis travel and feed rates are optimized for speed, stability, and repeatable precision.

Axis and Table Features

• Full 4-axis machining capability
• High-precision linear guides
• Large rotary table for multi-sided machining
• Efficient chip evacuation and coolant systems
• Easy access for fixture setup and inspection

CNC Control System

The OKK MCV-560DS is fitted with a cutting-edge CNC controller designed to provide intuitive operation, extensive program storage, and powerful machining functions. Whether you're handling simple 2D contours or complex 4-axis operations, the control system ensures smooth motion control and real-time process monitoring.

This system supports custom macros, adaptive machining functions, DNC communication, and more — giving users the tools to fine-tune processes and maximize productivity.

Control System Benefits

• User-friendly interface
• High-speed processing and real-time monitoring
• Tool life management and error detection
• Remote diagnostics and support capability

Large-Capacity Tool Magazine

Time is money in any machining environment, and the OKK MCV-560DS helps reduce non-cutting time with its automatic tool changer (ATC). Equipped with a large-capacity magazine, this feature supports a wide range of tooling setups for uninterrupted machining operations.

Tool changes are fast and reliable, allowing for seamless transitions between different operations like drilling, boring, milling, and tapping.

Tool Changer Features

• Automatic tool changer with high-speed swap capability
• Large magazine capacity (varies by configuration)
• Tool presence and wear detection sensors
• Minimal downtime during production runs

Automation Ready and Safety Compliant

The OKK MCV-560DS is engineered for seamless integration with automation systems, including robotic loaders, conveyor systems, and automated pallet changers. This makes it an ideal choice for high-volume production environments where unattended operation and continuous output are critical.

On the safety front, the machine is fully enclosed and comes equipped with multiple emergency stop functions, interlock doors, and other safety mechanisms to protect the operator and meet global safety standards.

Automation and Safety Advantages

• Supports automation cells and robotic loaders
• Operator safety enclosures and interlocks
• Emergency stop and alarm systems
• Designed for high-volume, lights-out manufacturing

Machine Location and Delivery

The OKK MCV-560DS CNC Machining Center is currently located in China, and we offer international shipping options for buyers around the globe.

• By Air: Delivery typically takes 7 to 10 days
• By Sea: Delivery takes approximately 30 to 45 days for most destinations

We’ll work closely with you to arrange the most efficient and cost-effective transportation option depending on your location and project timeline.

Why Choose the OKK MCV-560DS?

If you’re looking for a machine that balances speed, power, and precision, the OKK MCV-560DS is a proven choice. With its advanced 4-axis capability, robust build, and integration-ready design, this machining center fits perfectly into demanding production workflows. Its versatility also makes it an asset for contract manufacturers or OEMs needing to switch between jobs quickly and efficiently.

Whether you're producing engine parts, aerospace brackets, molds, or high-precision components, this machine delivers consistent results with minimal downtime.

Frequently Asked Questions (Q&A)

Q: What types of materials can the OKK MCV-560DS handle?

A: This machine is suitable for a wide range of materials, including aluminum, mild steel, stainless steel, titanium, and hardened tool steels. Its high-speed spindle and rigid design make it ideal for both light and heavy-duty cutting tasks.

Q: What industries commonly use the OKK MCV-560DS?

A: It is widely used in the automotive, aerospace, tool and die, mold making, machinery, and defense sectors due to its precision and reliability.

Q: Is the machine compatible with robotic automation?

A: Yes. The MCV-560DS can be easily integrated into robotic systems and automated pallet changers, making it suitable for unattended or high-volume operations.

Q: How many tools can the tool magazine hold?

A: The capacity can vary depending on the configuration, but it typically holds 20 to 40 tools, with high-speed automatic changeover.

Q: Does it include any warranty or support?

A: Warranty and post-sale service terms depend on the seller and purchase agreement. If you’re buying through Machine Matcher, we can help coordinate inspection and verification, and provide recommendations for maintenance partners in your region.

Q: Can I inspect the machine before purchase?

A: Yes, we can help organize a virtual or in-person inspection upon request. Contact us for details.

Q: What power requirements does the machine need?

A: The OKK MCV-560DS typically runs on 3-phase 380V or 400V power, but we’ll confirm the exact specification depending on the unit available.

Q: Can Machine Matcher help if I’m looking for a different CNC model?

A: Absolutely. If you are looking for a specific machine, contact us and we will use our network to find it for you.
