Jinbolida Omega Profile Roll Forming Machine – Automated Omega (Hat) Section Production for Solar Mounting

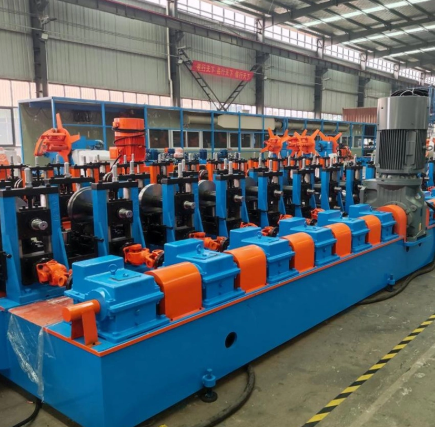

The Jinbolida Omega Profile Roll Forming Machine is a fully automated line for omega (hat) section photovoltaic mounting brackets. It runs from automatic feeding and decoiling through forming to automatic stacking, at 35–45 m/min (up to 50 m/min), with a daily capacity of up to 80 tonnes. It covers bottom widths of 50–100 mm, heights of 30–70 mm and edges of 10–30 mm by changing roll tooling. The control system accepts production orders on site or remotely, records output, energy use and yield in real time, and connects to ERP and MES systems, making it a good fit for digitally managed solar bracket factories.

Key Features

• Purpose-built for omega (hat) section PV brackets
• Fully automated: feeding, decoiling, forming and automatic stacking
• 35–45 m/min production speed, up to 50 m/min
• Daily capacity of up to 80 tonnes
• Size changes by roll tooling replacement
• Seven-roll leveller and anti-scratch auxiliary rollers
• Heavy-duty arch-type stands and gearbox drive
• Turk's head straightener for straight, twist-free profiles
• On-site or remote order input
• Real-time recording of output, energy use and yield, with cloud data transmission
• ERP and MES integration for digital factory management

Technical Specifications

• Profile: Omega (hat) section
• Bottom width: 50–100 mm
• Height (web): 30–70 mm
• Edge: 10–30 mm
• Size change: By changing roll tooling
• Line speed: 35–45 m/min (up to 50 m/min)
• Daily capacity: Up to 80 t
• Controls: Standalone electrical control with remote order input, ERP/MES connection

Main Components

• Infeed roller support
• Seven-roll levelling unit
• Left and right guides
• Anti-scratch auxiliary rollers
• Gearbox and motor reducer
• Machine bed
• Universal joints
• Arch-type stands
• Main shafts, forming rolls, spacers and sleeves
• Turk's head straightener
• Chain and sprocket drive

Applications

• Omega (hat) section brackets for ground-mount solar plants
• Brackets for BIPV and rooftop PV systems
• Solar projects in high-wind, coastal and high-altitude locations
• Digitally managed, high-volume bracket production

Commercial Details

• Brand: Jinbolida
• Manufacturer: Shandong Jinbolida Precision Machinery Co., Ltd.
• Place of origin: Heze, Shandong, China

Frequently Asked Questions

• What sizes can it produce? Bottom widths of 50–100 mm, heights of 30–70 mm and edges of 10–30 mm, by changing roll tooling.
• How fast is it? 35–45 m/min, up to 50 m/min, with up to 80 tonnes a day.
• Is it fully automatic? Yes. Feeding, decoiling, forming and stacking are all automated.
• Can it connect to our factory systems? Yes. It records output, energy and yield in real time and connects to ERP and MES systems.
• What should I send for a quotation? Your omega profile drawings, material grade and thickness, lengths, punching needs, output target and local voltage and frequency.
