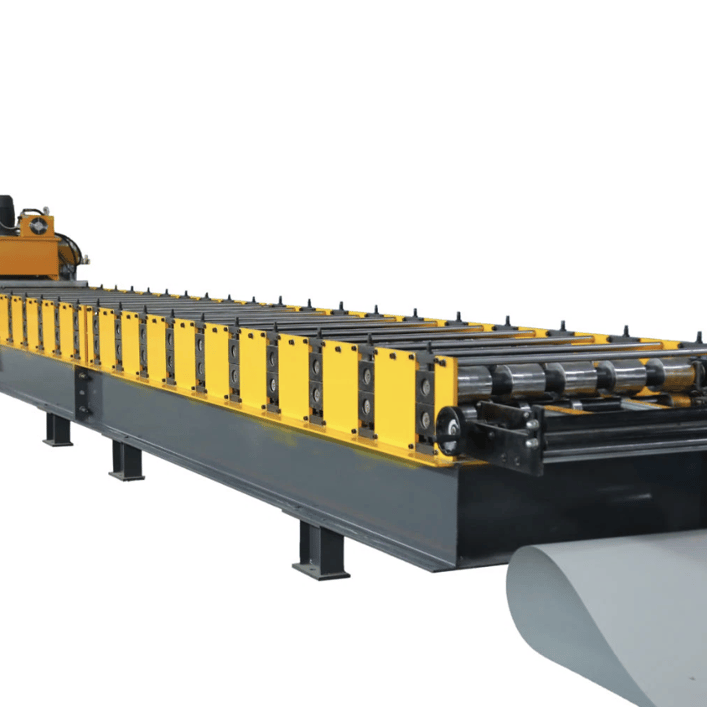

Panel Roll Forming Machine in Mexico

Condition
New
Supplier
Roll Forming Machines Mexico
Country
Mexico
Category
Listing ID
9561

Request a Quote

To express an interest in this machine please submit the form below.

Please enter your full name.

Please enter your location.

Please enter your email address.

Please enter your phone number.

Please enter a brief description of how we can help.

MaterialAluminium PPGI PPGL GI GL
Width474/575/675mm
Thickness1.0mm, customized
Power RequiredPower380V 3Phase 50Hz or 415V, customized
Main Motor7.5KW, Lichao, Shanghai/Siemens Brand
Cutting Motor4.0KW, Lichao, Shanghai/Siemens Brand
Roll Forming MachineSupport Frame350H steel
Forming Station21 rows, exactly according to profile drawing
Structure18mm
Shaft45# high grade steel, 70mm, solid, with keyway
Roller45# high grade steel with heat treatment, hard chrome plated
Chain1.0inch
BearingStandard
Speed12-18m/min
Electric ComponentsDelta / Siemens / Mitsubishi
Cutting BladeCr12Mov, quenched 58°-62°
OperationTouch Screen
Dimension11.0*1.4*1.7M
Weight6.5T
