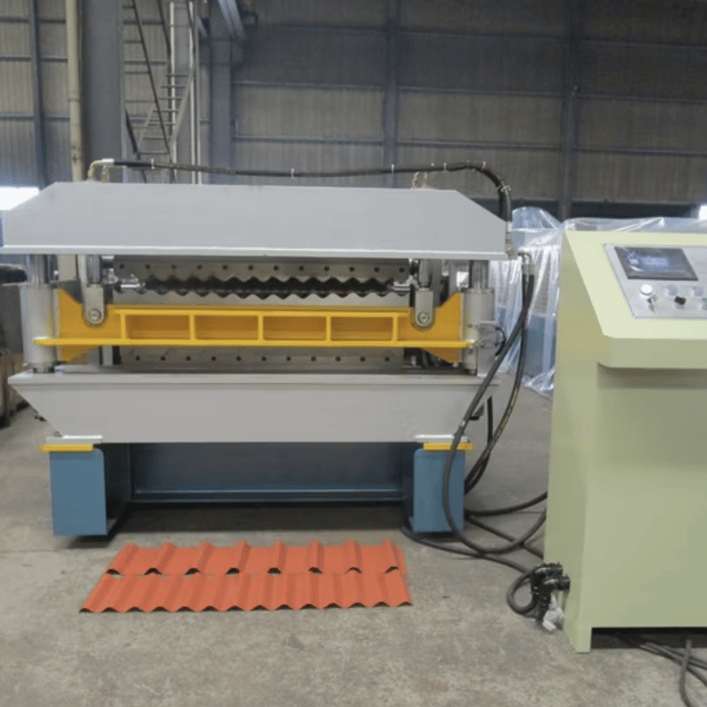

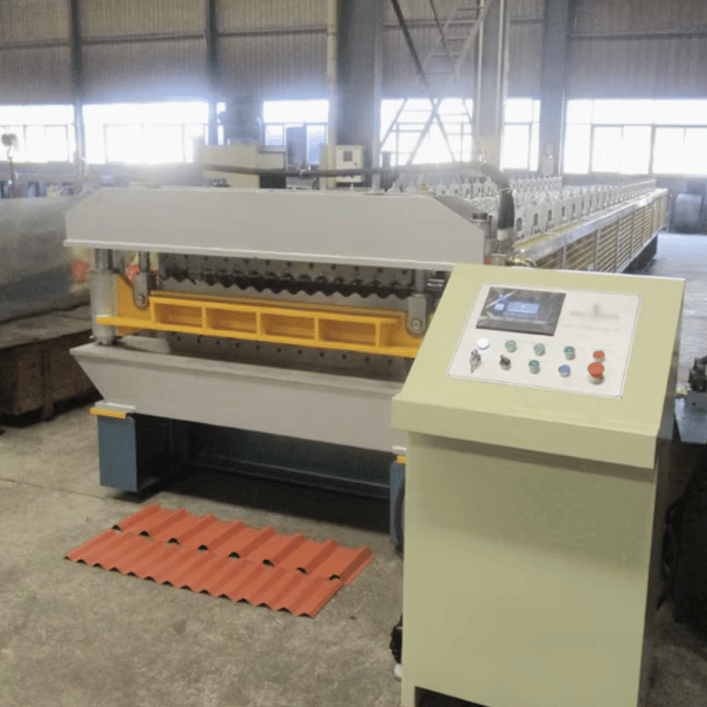

Panel Roll Forming Machine in Pakistan

A Panel Roll Forming Machine is a highly specialized industrial machine used to manufacture continuous metal panels for a wide range of applications, particularly in construction, roofing, and cladding. These panels are crucial for building structures, offering durability, insulation, and protection from the elements. The machine shapes flat metal sheets into specific panel profiles by passing them through a series of rollers.

Machine Description

Panel roll forming machines are designed for efficiency, speed, and precision in creating metal panel profiles. Typically, these machines work with steel, aluminum, or other durable metals to produce panels for structural and aesthetic purposes. The panels created are commonly used in roofing, walls, and building exteriors. Panel roll forming machines are customized to create specific panel types such as standing seam, ribbed, and corrugated panels.

1. Forming Process: Metal sheets are fed into the machine, where they pass through multiple sets of rollers. Each roller set gradually bends the metal to achieve the desired profile.
2. Cutting Mechanism: The machine is equipped with a cutting system that automatically cuts the formed panels to the specified length, providing precise, clean cuts.
3. Control System: Most machines are fitted with a PLC (Programmable Logic Controller) that allows for precise control over speed, length, and production rates. This automation minimizes waste and optimizes productivity.

Specifications

1. Material: Steel, aluminum, or galvanized steel.
2. Roller Materials: High-strength steel, often chrome-coated for durability.
3. Frame Structure: Heavy-duty steel frame to maintain stability during operation.
4. Motor Power: Variable, depending on production requirements (typically 7.5 kW to 15 kW).
5. Forming Speed: 10-20 meters per minute (speed varies based on panel profile and metal thickness).
6. Machine Length: Around 10-15 meters, depending on design and customization.
7. Control System: PLC system with touch screen interface for ease of use.
8. Cutting Mechanism: Hydraulic cutting system with servo motor alignment for precise cuts.
9. Profile Width: Adjustable, often between 500-1000 mm, depending on panel type.
10. Panel Thickness Range: Supports metal thicknesses between 0.3 to 1.2 mm.
11. Safety Features: Safety guards, emergency stop buttons, and protective enclosures.

Question and Answer Section

Q1: What industries benefit most from panel roll forming machines?

A1: Panel roll forming machines are essential in construction, roofing, and cladding industries. They are used for making panels for commercial and residential buildings, storage facilities, agricultural buildings, and even warehouses.

Q2: What factors should I consider when purchasing a panel roll forming machine?

A2: Important factors include:

• Panel Profile: Choose a machine capable of creating the specific panel profile(s) you need.
• Material Compatibility: Ensure the machine can handle the metal types and thicknesses you plan to use.
• Production Speed: Evaluate if the machine’s forming speed aligns with your production requirements.
• Automation and Control: Look for a machine with a PLC control system for better productivity and precision.
• Space Requirements: Confirm you have sufficient space for the machine, considering its length and width.

Q3: How is a panel roll forming machine maintained?

A3: Regular maintenance includes:

• Lubricating moving parts to reduce wear on rollers and cutting mechanisms.
• Checking and adjusting roller alignment to ensure consistent panel quality.
• Cleaning the machine periodically to remove metal shavings and debris.
• Inspecting electrical components, safety features, and the hydraulic system for any signs of wear or malfunction.

Q4: Can I produce different panel profiles with a single machine?

A4: Some panel roll forming machines are designed for a single profile, while others are multi-profile machines. Multi-profile machines allow for quick changeovers to produce various panel types, though they may be more expensive. Always verify this capability with the manufacturer if you need multiple profiles.

Q5: What is the role of the PLC system in a panel roll forming machine?

A5: The PLC (Programmable Logic Controller) manages and automates the machine’s functions, allowing you to set parameters for speed, length, and production count. This enhances precision, consistency, and productivity, reducing human error and material waste.

Q6: Is training required to operate a panel roll forming machine?

A6: Yes, some training is recommended to understand machine operation, settings, and maintenance requirements. Many manufacturers offer training as part of the installation package, ensuring operators can safely and efficiently use the machine.

Q7: How much power does a panel roll forming machine typically consume?

A7: Power consumption varies by machine size and capacity but generally ranges from 7.5 kW to 15 kW. Machines with advanced automation or higher production speeds may require more power.

Q8: What types of metal can be used in a panel roll forming machine?

A8: Most panel roll forming machines are compatible with steel, galvanized steel, aluminum, and other metals within the machine’s thickness capacity (usually 0.3 to 1.2 mm).
