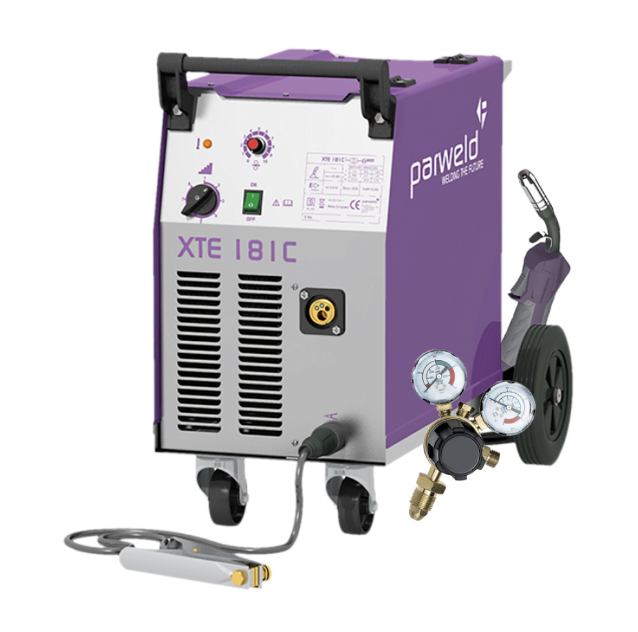

Parweld XTE 181C MIG Welder With Torch

View more details here Parweld XTE 181C Automotive Compact MIG Welder with Torch & Regulator

New €705.00 Location Ireland

Product Description

The XTE 181C is robust featuring a die cast alloy feed and a rear tray for gas bottles up to 20kg. Its high performance at low current reduces heat distortion and the flexible polarity allows gasless welding (will accept 5kg or 15kg wire spools). It has a DC output and when combined with the correct type of wire it is suitable for welding steels. The feed box ensures reliable feeding of 0.6mm and 0.8mm wires. The XTE 181C has a full sized cabinet which can accept a gas cylinder and its large wheels mean it is easily portable and can be moved from job to job.

Single Phase • Euro Torch Connector • 2 Roll Metal Feed Box • 8 Voltage Steps

Applications

• Light Manufacturing
• Maintenance Repair
• DIY
• Automotive

Technical Information:

• Style : Compact
• Machine Type : Transformer
• Maximum Current : 185A
• Wire Feed Speed : 1.5-14m/min
• Voltage : 19.5-38V
• Spool Size : 5kg & 15kg
• Feed Box : 2R
• Wire Size : 0.6-0.8mm
• Duty Cycle : 185A @ 15%
• Input Voltage : 230V 1P
• Input Current (Max) : 32A
• Minimum Fuse Rating : 16A
• KVA : 7.35
• Enclosure Protection : IP21S
• Dimensions (mm) : 705 x 420 x 630
• Weight (kg) : 40.8
• Manufactured to IP23S, ISO/IEC 60974-1, ISO/IEC 60974-6, RoHS Directive, Low Voltage Directive, EMC Directive (CE Compliant)and supplied with 3 Years Return to Base Warranty.
