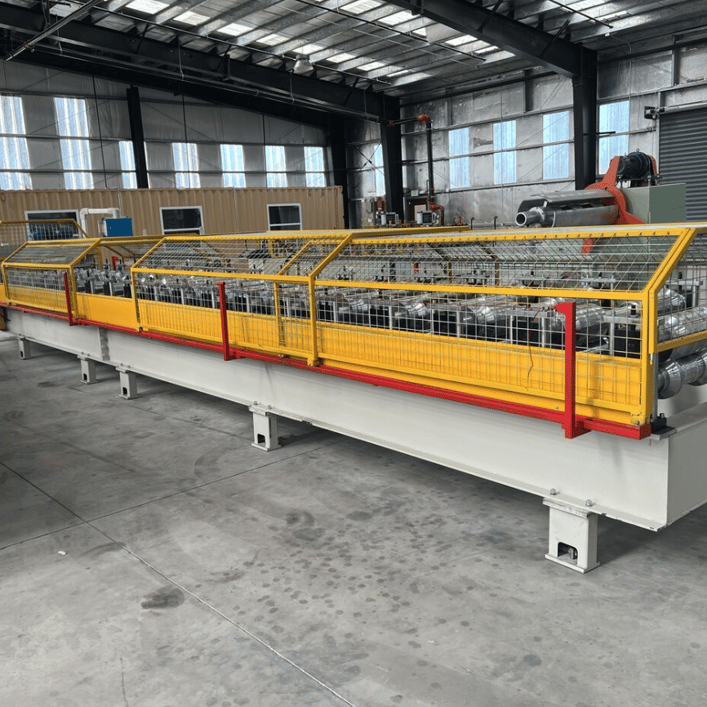

PBR Roll Forming Machine Switzerland

The PBR (Purlin Bearing Rib) Roll Forming Machine is a critical asset in the manufacturing of PBR metal roof panels, widely used in construction for residential, commercial, and industrial roofing and siding applications. Switzerland, known for its high-quality construction standards, benefits from the precision, durability, and efficiency of PBR roll forming machines to meet its architectural and industrial demands.

Machine Description

A PBR roll forming machine is designed to produce Purlin Bearing Rib (PBR) panels with consistency and precision. These panels are characterized by their strong ribbed profiles that provide enhanced strength and durability. The machine automates the panel production process, reducing labor costs and increasing output efficiency.

Key Features

• Precision Engineering: High-quality rollers ensure the consistent formation of precise panel profiles.
• Automation: Equipped with advanced PLC systems for seamless operation and minimal human intervention.
• Flexibility: Adjustable settings to produce panels of varying sizes and thicknesses.
• Durability: Made with robust materials to withstand extended operation and heavy-duty use.

Machine Specifications

1. Roller Materials:
   • High-grade steel with chrome plating for durability and corrosion resistance.
2. Punching and Notching:
   • Hydraulic punching system for accurate holes and slots, if required.
3. Servo Motors:
   • Precision servo motors for feeding and cutting accuracy.
4. Hydraulic Cutting System:
   • High-speed hydraulic cutters for clean and burr-free cuts.
5. Frame Size:
   • Heavy-duty steel frame for stability during operation.
6. Motors:
   • Energy-efficient motors customized for Swiss power supply standards (typically 380V, 50Hz).
7. PLC System:
   • User-friendly interface for operational control and real-time monitoring.
8. Machine Speed:
   • Up to 30 meters per minute, adjustable based on requirements.
9. Safety Guards and Enclosures:
   • Complies with Swiss safety regulations, ensuring operator protection.

Profile Description

• Materials:
  • Steel (Galvanized, Pre-painted), Aluminum, or Copper.
• Sizes:
  • Customizable widths, typically between 800–1200 mm.
• Material Gauge:
  • Thickness from 0.4 mm to 1.2 mm, depending on application.
• Market Size:
  • Roofing, siding, and structural applications in residential, commercial, and industrial projects.
• Industries:
  • Construction, agriculture, and prefabricated building sectors.
• Popular Countries for Use:
  • Switzerland, Germany, France, and Austria for their stringent quality and durability standards.

Optional Extras

• Stackers:
  • For automated panel stacking.
• Remote PLC Systems:
  • Remote monitoring and operation for ease of use.
• Coil Car Tippers:
  • For efficient coil handling.
• Uncoilers and Recoilers:
  • Enhances coil feeding and rewinding.
• Automatic Stackers:
  • Improves production efficiency.
• Leveling Systems:
  • Ensures flatness before profiling.
• Coil Handling Systems:
  • Streamlines material feeding into the machine.

Machine Pricing

• Entry-Level Machines:
  • Starting at $40,000.
• Mid-Range Machines:
  • Between $60,000 and $80,000.
• High-End Machines:
  • Advanced models with full automation and extras, up to $120,000.

Setup and Installation

1. Location Assessment:
   • Select a stable and vibration-free area.
2. Power Connection:
   • Swiss-compliant electrical setup (380V, 50Hz).
3. Coil Loading:
   • Load the coil using the uncoiler system.
4. Calibration:
   • Adjust settings for profile size and thickness.
5. Trial Run:
   • Conduct a test run to ensure accuracy.

Maintenance Requirements

• Regular lubrication of rollers and moving parts.
• Periodic inspection of hydraulic and electrical systems.
• Timely replacement of worn-out components.
• Cleaning of rollers to prevent buildup.

FAQs

1. What is the production speed of the PBR roll forming machine?

The machine can produce panels at a speed of up to 30 meters per minute, depending on material and panel specifications.

2. Can the machine handle different panel widths and thicknesses?

Yes, the machine can be adjusted to produce panels of various widths and material gauges, typically between 0.4 mm to 1.2 mm.

3. Is the machine compatible with Swiss power supply standards?

Yes, it is designed to work with Switzerland's standard power supply (380V, 50Hz).

4. How long does it take to set up the machine?

Initial setup and calibration usually take 1-2 days, depending on the site and machine complexity.

5. What materials can the PBR machine process?

The machine can handle steel (galvanized, pre-painted), aluminum, and copper.

6. Does the machine come with a warranty?

Yes, most manufacturers provide a 1-2 year warranty covering parts and labor.

7. Can the machine be customized for specific profiles?

Absolutely, custom rollers and settings can be configured to meet specific profile requirements.

8. What is the typical lifespan of a PBR roll forming machine?

With proper maintenance, the machine can last 10-15 years or more.

This comprehensive guide ensures that Swiss industries can make informed decisions about PBR roll forming machines, aligning their investments with their specific operational needs.
