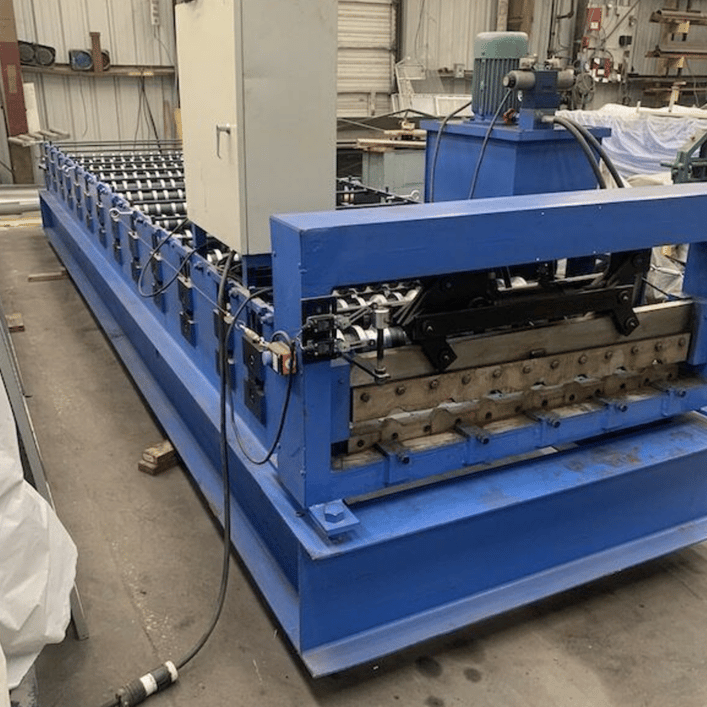

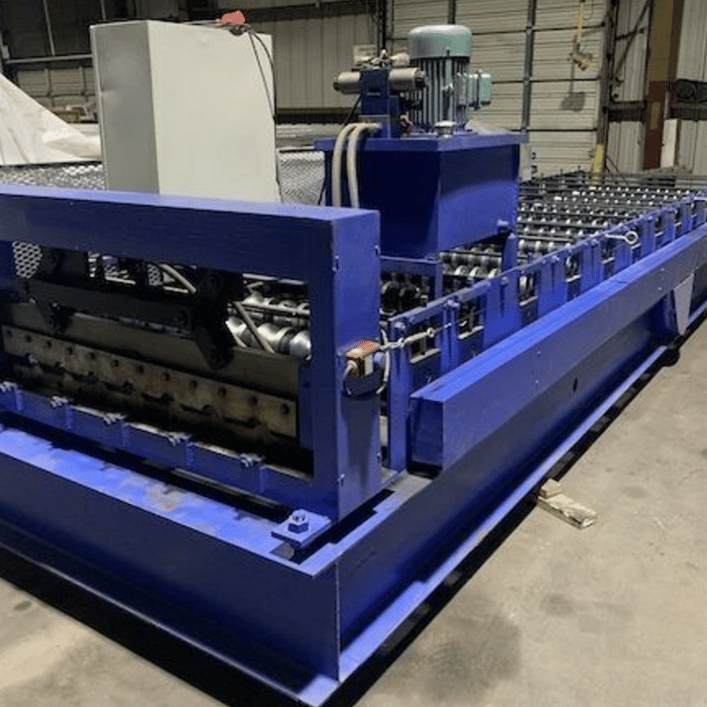

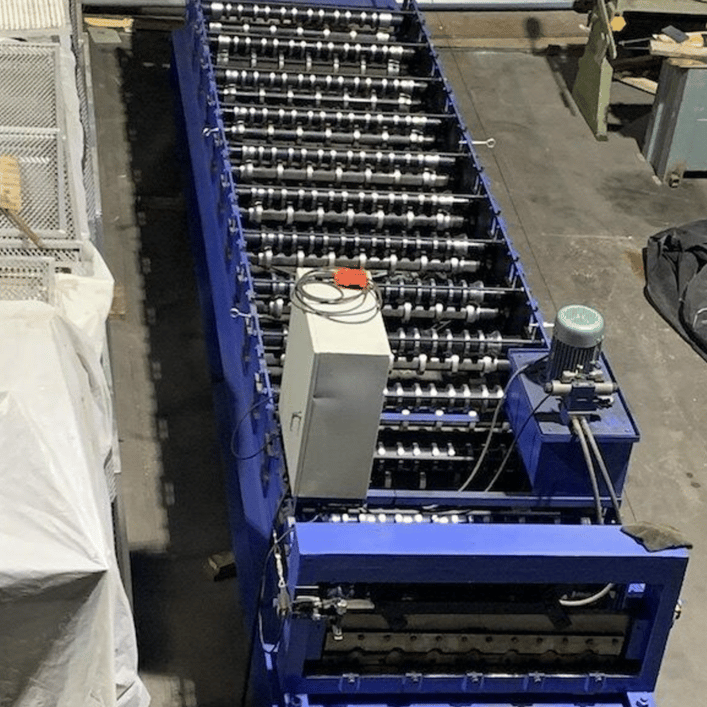

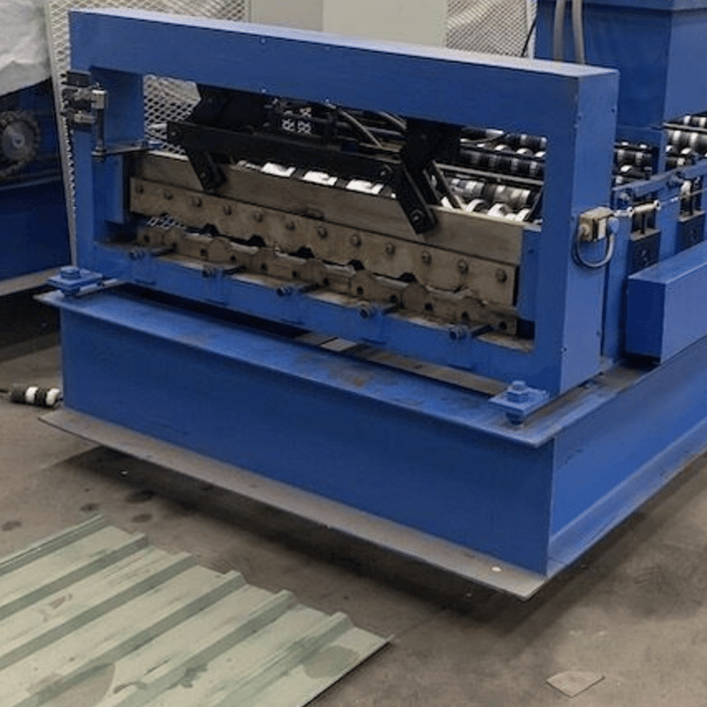

PBU Panel Cold Roll Forming Machine Florida

A PBU Panel Cold Roll Forming Machine is designed to produce high-quality PBU panels, widely used for roofing, cladding, and siding applications in construction. Known for their versatility, PBU panels offer strength and durability, making them popular in Florida's residential, commercial, and industrial building sectors. The machine is engineered for precision, speed, and efficiency, making it an essential tool for manufacturers catering to Florida's diverse construction needs.

This machine forms metal coils into PBU panels with uniform profiles. It ensures accurate dimensions, reduced material wastage, and consistent quality, meeting the demands of Florida’s hurricane-resistant building standards.

Machine Specifications

1. Roller Materials:
   • High-grade GCr15 steel, heat-treated for longevity and precision.
2. Frame Size:
   • Heavy-duty steel frame with a thickness of 20-25 mm for enhanced stability.
3. Motors:
   • Main drive motor: 5.5 kW - 7.5 kW.
   • Hydraulic motor: 3 kW.
4. Hydraulic Cutting System:
   • Equipped with high-strength hydraulic shears for smooth, burr-free cutting.
   • Cutting accuracy: ±1 mm.
5. Machine Speed:
   • Up to 15-20 meters per minute, ensuring high productivity.
6. Control System:
   • PLC (Programmable Logic Controller) system with a touch screen interface for easy operation.
   • Supports custom panel lengths and automatic batch operations.
7. Profile Specifications:
   • Material thickness: 0.3 mm to 0.8 mm.
   • Panel width: Adjustable, typically between 500 mm to 1,200 mm.
   • Material type: Galvanized steel, aluminum, and coated steel.
8. Safety Features:
   • Safety guards and emergency stop buttons to ensure operator safety.
9. Optional Extras:
   • Uncoiler: Manual or hydraulic uncoilers with a capacity of 5-10 tons.
   • Stackers: Automatic stacking systems for finished panels.
   • Remote PLC System: Enables remote monitoring and adjustments.

Applications in Florida

1. Hurricane-Resistant Roofing: PBU panels are ideal for Florida's construction industry due to their ability to withstand extreme weather.
2. Siding for Commercial Buildings: Commonly used for warehouses and commercial complexes.
3. Cladding for Industrial Structures: Provides durable, low-maintenance solutions for factories and workshops.
4. Residential Applications: Used for both decorative and functional purposes in modern homes.

Question and Answer Section

Q1: What are the benefits of using a PBU panel cold roll forming machine in Florida?

A1: The machine ensures high-speed production, consistent quality, and hurricane-resistant panels. It meets Florida's stringent building codes and reduces labor costs through automation.

Q2: Can this machine handle different material types?

A2: Yes, it can process galvanized steel, aluminum, and coated steel with material thickness ranging from 0.3 mm to 0.8 mm.

Q3: Is the machine suitable for small businesses?

A3: Absolutely. The compact design and efficient operation make it ideal for businesses of all sizes. It also offers scalable production to grow with demand.

Q4: What power requirements should I consider for Florida?

A4: The machine typically requires a 3-phase power supply of 220V or 380V, depending on the configuration. Verify compatibility with local power infrastructure.

Q5: How is the machine installed and maintained?

A5: The installation process is straightforward, with clear instructions and on-site assistance available. Regular maintenance, such as lubrication and inspection of rollers, ensures optimal performance.

Q6: What customization options are available for Florida-specific needs?

A6: Customizations include panel width adjustments, special coatings for corrosion resistance, and integration with solar panel mounts for eco-friendly construction.

Q7: How can I get support if I face operational issues?

A7: Manufacturers provide technical support, including remote troubleshooting, spare parts supply, and maintenance training.

Q8: Are there any warranties provided?

A8: Most machines come with a 12-month warranty for parts and service. Extended warranties may be available upon request.
