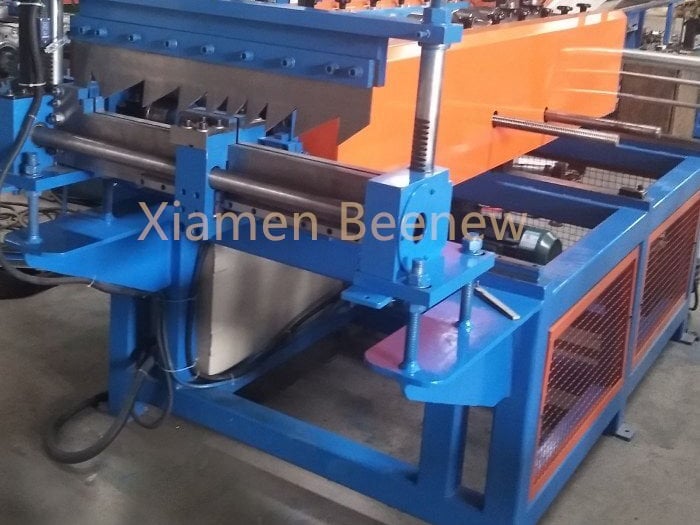

Portable Standing Seam Roll Forming Machine | Beenew, Xiamen, China

Beenew's Portable Standing Seam Roll Forming Machine is compact enough to take to site, so standing seam roof panels can be formed where they are installed. That saves transporting long panels and suits large projects where the machine needs to move around.

It forms both aluminium, for light, corrosion-resistant roofs, and PPGI steel, for durability and a wide choice of colours. The rollers are GCr15 bearing steel with a hard chrome coating for wear and rust resistance.

Key Features

• Compact and transportable for on-site panel forming
• Runs aluminium and PPGI
• GCr15 rollers, hard-chromed
• Hydraulic cutting, PLC control

Technical Specifications

• Driving motor: 4 kW
• Forming stations: 8
• Rollers: GCr15
• Shafts: 45# steel, 40 mm
• Pump motor: 2.2 kW
• Cutting: Hydraulic, ±2 mm
• Control: PLC; Siemens, Delta, Omron or Schneider electrics
• Dimensions: 2,800 × 750 × 1,350 mm
• Power supply: 380 V/50 Hz/3-phase or to order

Applications

• On-site standing seam roofing
• Long roof runs where transporting panels is difficult
• Residential and commercial metal roofs

Commercial Details

• Brand: Beenew
• Manufacturer: Xiamen Beenew Machinery Co., Ltd.
• Place of origin: Xiamen, Fujian, China

Frequently Asked Questions

• Can it be used on site? Yes. Its compact size is designed for on-site forming.
• Which materials can it form? Aluminium and PPGI steel.
• How big is it? About 2.8 m long, 0.75 m wide and 1.35 m high.
• What should I send for a quotation? Your panel profile drawing, material and thickness, and power supply.
