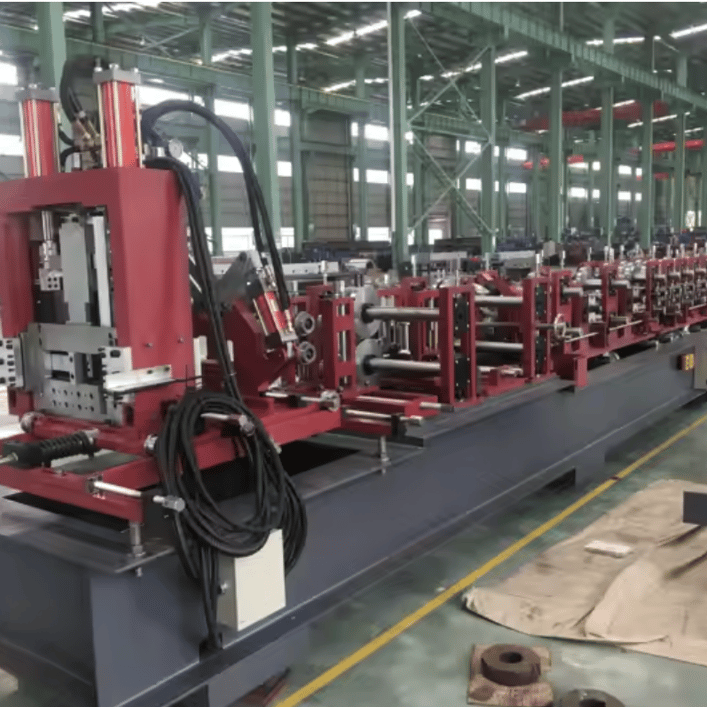

Pre Cutting Metal Purlin Roll Forming Machine in China
- Condition
- New
- Supplier
- Nantong Super Machinery Co., Ltd
- Country
- China
- Category
- Listing ID
- 8091
Request a Quote
To express an interest in this machine please submit the form below.
View more information and all machines from this supplier here
|
Core Components |
Bearing, Motor, Gear, Pump |
|
Production Capacity |
10-20m/min |
|
Place of Origin |
Jiangsu, China |
|
Weight |
9.6ton |
|
Warranty |
1 Year |
|
Key Selling Points |
Automatic |
|
Video outgoing-inspection |
Provided |
|
Machinery Test Report |
Provided |
|
Brand Name |
SUPER |
|
Dimension(L*W*H) |
10*1.5*1.3m |
|
Material Thickness |
1.0-3.0mm |
|
Main Motor Power |
22kw |
|
Hydraulic Pressure |
16Mpa |
|
Control System |
PLC control Panel |
|
Shaft Material |
40Cr |
|
Roller Material |
GCr15 |
|
Cutter Blade Material |
Cr12MoV |
|
Forming Speed |
16-20m/min |
|
Roller Station |
14 Stations |
|
After Warranty Service |
Video technical support, Online support, Field maintenance and repair service |
|
Local Service Location |
None |
|
After-sales Service Provided |
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support |
