Jinbolida Punching and Cutting Line for Solar Frames – Punch and Cut to Length in One Automated Pass

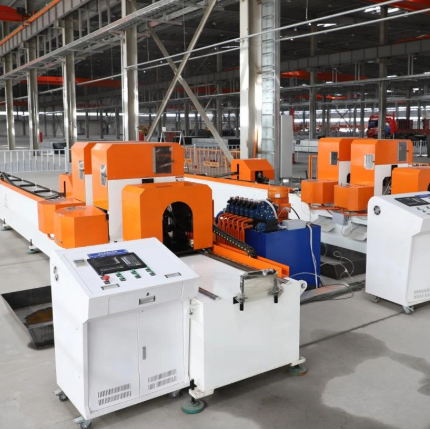

The Jinbolida Punching and Cutting Line for Solar Frames is a CNC finishing line that turns long lengths of formed channel, angle or tube into finished solar mounting frame parts. It feeds the profile to position, punches mounting holes, connection slots, drainage holes and identification marks, then cuts the part to its exact final length, all in one continuous, automated sequence. Because feeding, punching and cutting are synchronised under CNC control, hole positions stay accurate relative to the ends of each part. The finished components come off the line ready for coating or assembly, and bolt together cleanly in the field.

How It Works

• Long lengths of roll-formed or pre-fabricated profile are loaded into the line
• The CNC feed advances the profile to each programmed position
• The punching unit creates mounting holes, slots, drainage holes and marks
• The cutting unit cuts the profile to its final length
• Finished parts leave the line ready for galvanising, coating or assembly

Key Features

• Punching and cutting combined in a single automated line
• CNC-controlled feeding, punching and cutting for accurate hole positions and part lengths
• Punches mounting holes, connection slots, drainage holes and identification marks
• Handles channel, angle and tube profiles
• Eliminates manual setup and handling between operations, cutting labour and alignment errors
• High-volume output of finished parts
• Feeds directly into coating or assembly for a lean workflow

Configurable Options (to be confirmed with Jinbolida)

• Punching unit: turret punch press or multi-tool hydraulic punch
• Cutting unit: flying mitre saw or band saw
• Automatic tool changer for a wide range of hole shapes and sizes

Applications

• Solar mounting frame members: rails, purlins, braces and posts
• Ground-mount and rooftop PV racking components
• Punched and cut-to-length channel, angle and tube for general steel structures

Punching Line or Punching and Cutting Line?

• Solar Bracket Punching Machine Line: Punches hole patterns in brackets and blanks at high speed
• Punching and Cutting Line for Solar Frames (this line): Takes long profiles, punches them and cuts each part to its final length

Commercial Details

• Brand: Jinbolida
• Manufacturer: Shandong Jinbolida Precision Machinery Co., Ltd.
• Place of origin: Heze, Shandong, China

Frequently Asked Questions

• What does the line do? It punches holes, slots and marks in long solar frame profiles, then cuts each part to its final length.
• What profiles can it handle? Formed channel, angle and tube sections.
• How accurate is it? CNC control keeps hole positions and part lengths within tight tolerances. Ask Jinbolida for the guaranteed tolerance.
• Can it connect to a roll forming line? It's designed as a downstream line for roll-formed profiles, and Jinbolida also builds solar roll forming machines.
• What should I send for a quotation? Part drawings with hole patterns and lengths, profile type and dimensions, material grade and thickness, required output, and your local voltage and frequency.
