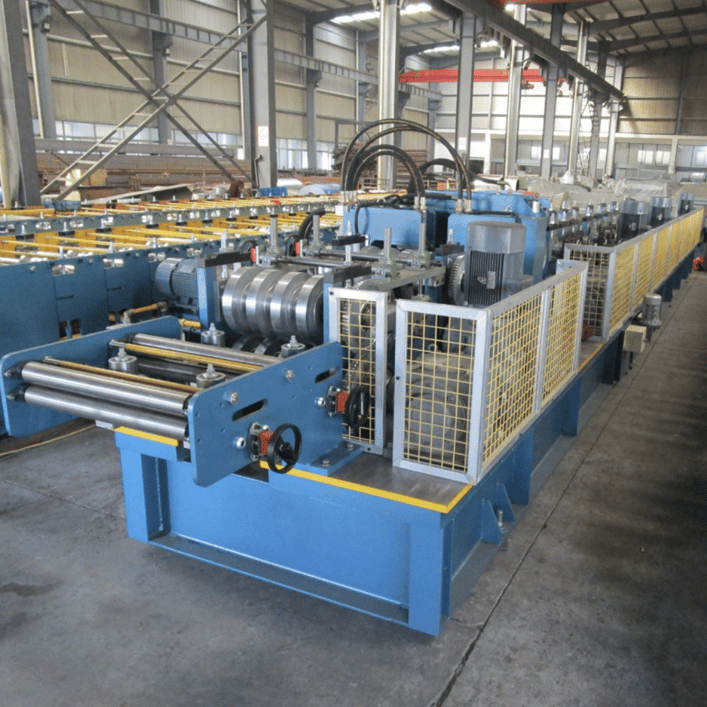

Purlin Roll Forming Machine in Mexico
Automatic Building Material Metal Steel Framing Structure Prefab House C Z Purlin U Shape Cold Roll Forming Making Machines
| Operation way | Automatic machine |
| Warranty | 36 Months |
| Advantage | More 10 years life time |
| Material thickness | 1.5-3.0 or 2.0-4.0mm |
| Cutting material | Cr12MOV.,Hardness 58-60HRC |
| Forming rollers qty. | 15 stations |
| Roller Material | Cr12MOV.,Hardness 58-60HRC |
| Wall thickness | 45mm |
| Transportation | In Containers,suiting for sea and road transmission. |
| Machine model | Purlin Roll Former |
| Certification | ISO9001,CE |
| Customized | Customized |
| Weight | About 23T |
| Suiting material | Galvanized coils |
| Main motor | 5.5kw*3 |
| Shafts diameter | 82 or 90 mm |
| Machine frame | H450 |
| Forming speed | 25-30m/min. |
