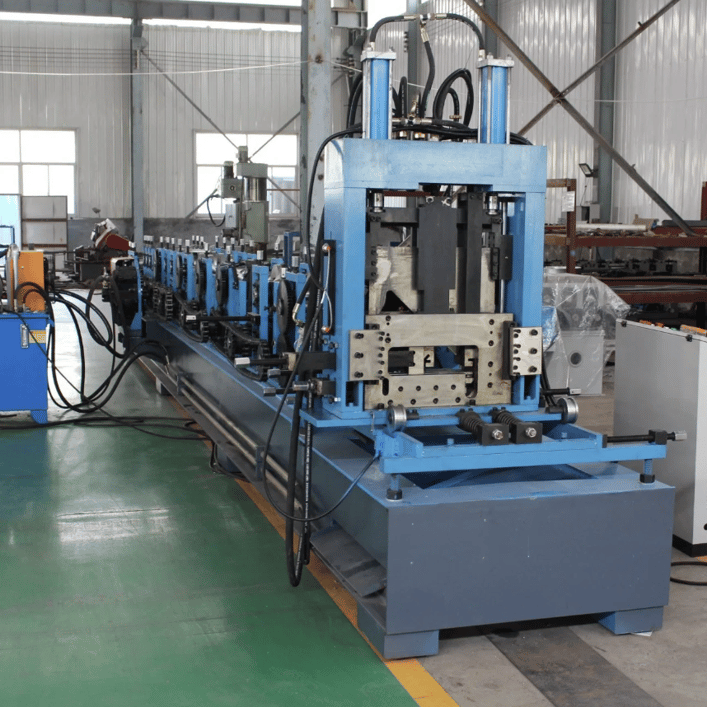

Purlin Roll Forming Machine in Nicaragua
- Condition
- New
- Supplier
- Roll Forming Machines Nicaragua
- Country
- Nicaragua
- Category
- Listing ID
- 9458
Request a Quote
To express an interest in this machine please submit the form below.
| Model Number | C purlin, 80-300 Z purlin 140-300 |
| Suitable Material | hot rolled strip steel, Q235 or equivalent, 1.5-3.0 mm thickness |
| Material Width | 175-465 mm |
| Dimension | about 9.9*1.20*1.5 m |
| Working Space | about 19.9*3.2 m |
| Length Of Sheet | You can set the length according to your need, such as 1.5m, 3.2m or 6.7m. It is controlled by PLC, and can ensure the accuracy of ±2mm. |
| Cutting | Automatically stop and cutting when it comes to the set length |
| Forming Speed | 0-15 m/min |
| b. Components Details | |
| Material | Gr15. |
| Main Frame | 400 H steel. More stable, no shaking |
| Middle Plate | 20 mm. we use bigger plates, to ensure stability |
| Chain | 2 inch thickness |
| Shaft Material | Φ80 mm, high grade 45# steel. |
| Forming Steps | 13 |

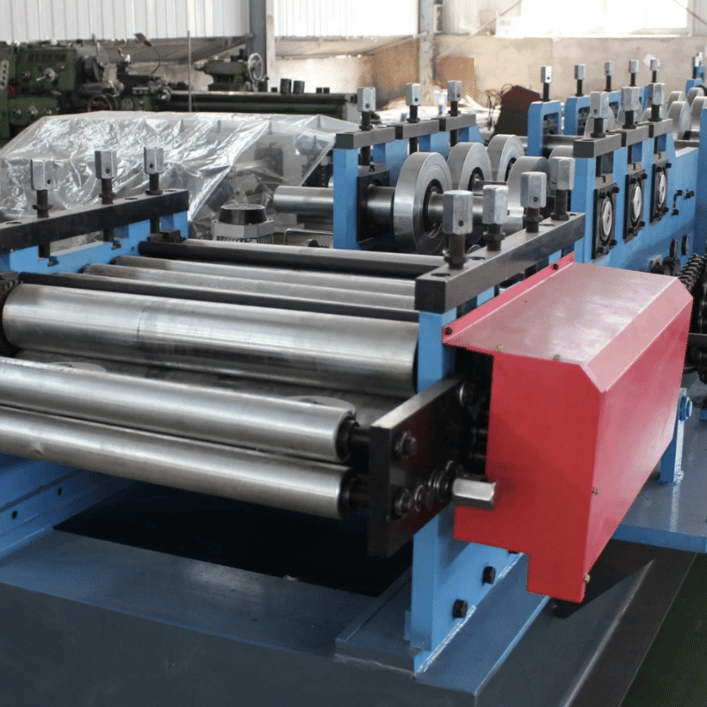

| Detailed Forming Process | 3 steps for leveling- 12 steps for roll forming-5 steps for adjusting height and width-1 step on the coil-output part for adjusting deviation-1 leveling step to make it straight. |
| Mold Cutting | Cr12, hardness HRC60-62. Treating process: heat treatment- plane abrasion- wire electrode cutting |
| Control System | Suitable power: 380V, 50 Hz, 3 phase or according to your need. |
| Screen: Delta 7 inch touch screen, easy to operate | |
| PLC: Delta DVP24ES, well-adapted to various conditions, such as moisture, electromagnetic disturbance. | |
| Frequency converter, Delta VFD-M. It has the advantage of slowing down before cutting, to ensure the length accuracy | |
| Length measurement device: Omron, made in Japan. It features with high accuracy and stability | |
